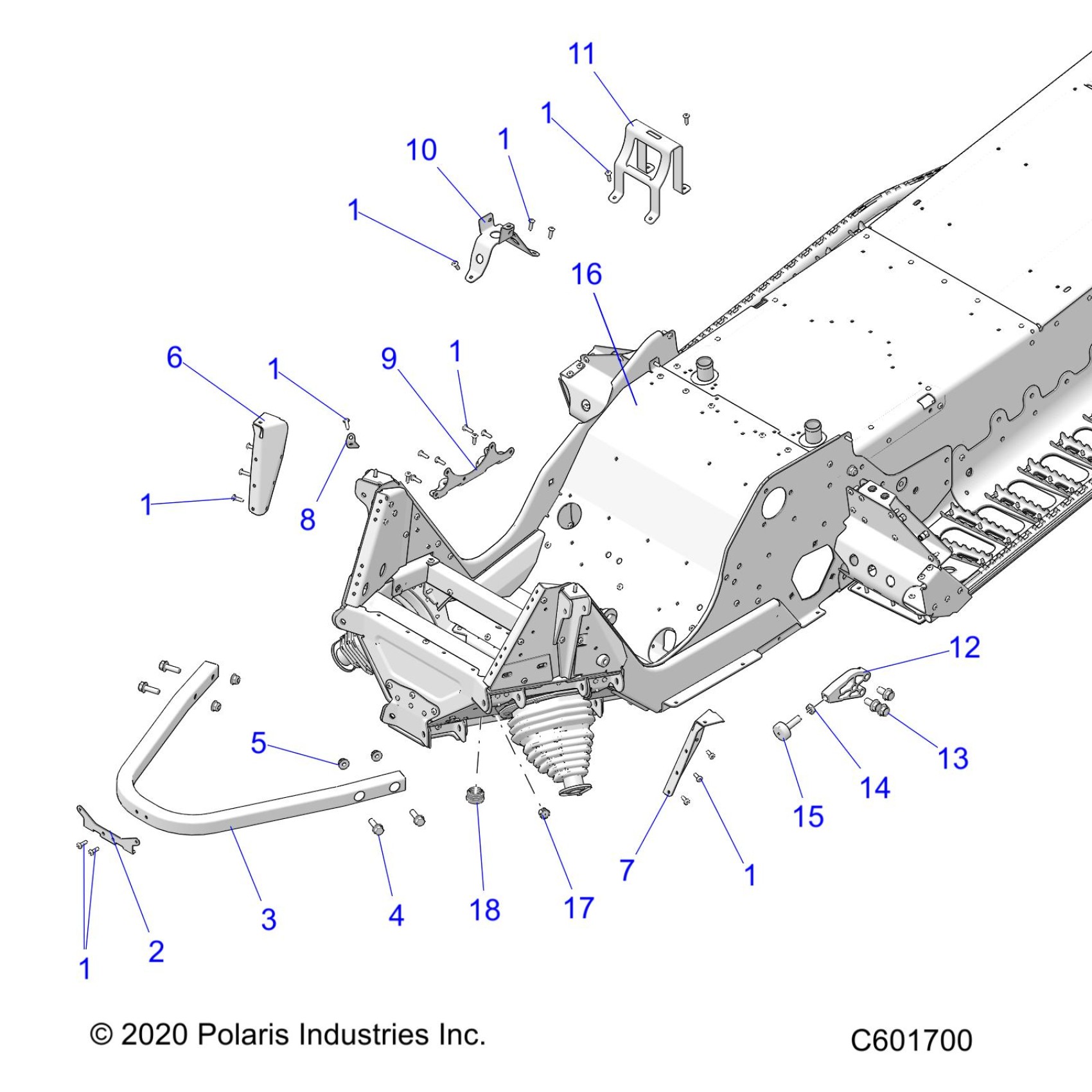

Polaris 600 RACER (R01) - S26MDX6DSA CHASSIS, FRONT ASM. - S26MDX6DSA (C601700) Diagram

#

Description
Price

1

RIVET-3/16-.090-.290

7661637

Unavailable

1

RIVET-3/16-.090-.290

7661637

Unavailable

1

RIVET-3/16-.090-.290

7661637

Unavailable

1

RIVET-3/16-.090-.290

7661637

Unavailable

1

RIVET-3/16-.090-.290

7661637

Unavailable

1

RIVET-3/16-.090-.290

7661637

Unavailable

1

RIVET-3/16-.090-.290

7661637

Unavailable

1

RIVET-3/16-.090-.290

7661637

Unavailable

2

BRKT-FRONT BUMPER/PIPE BLK

5263715-329

$28.32

3

BUMPER-FRT,RACE ECOAT

5339639-329

$134.99

4

SCR-5/16-18X1-HX/FLG-GR5-Y

7515307

$3.99

5

NUT-5/16-18 HX FLG NL-Y

7542343

$4.79

6

BRKT-MOUNT NOSEPAN RH

5262492-329

$58.08

7

BRKT-MOUNT NOSEPAN LH

5262491-329

$58.08

8

BRKT-CHASSIS/RESONATOR BLK

5263900-329

$28.32

9

BRKT-CHASSIS/RESONATOR BLK

5265826-329

$53.24

10

GUARD-JACKSHAFT/HOSE

5270929

$48.40

11

BRACKET, MOUNT, AIRBOX

5248960

$109.99

12

MACH-TORQUE STOP

5142733

$72.60

13

SCR-3/8-16X3/4 HX FLNG-GR5-Y

7517632

$5.59

14

NUT-3/8-16 HX THIN-Y

7542414

$4.79

15

STOP-TORQUE,COURSE,3/8-16 1.50

3021354

$24.27

16

ASM-CHASSIS RACE NAT [INCL. STEERING HOOP]

1029403-309

$2,059.99

17

PLUG-HOLE

7080416

$5.65

18

PLUG-TUBE

7081210

$3.99
