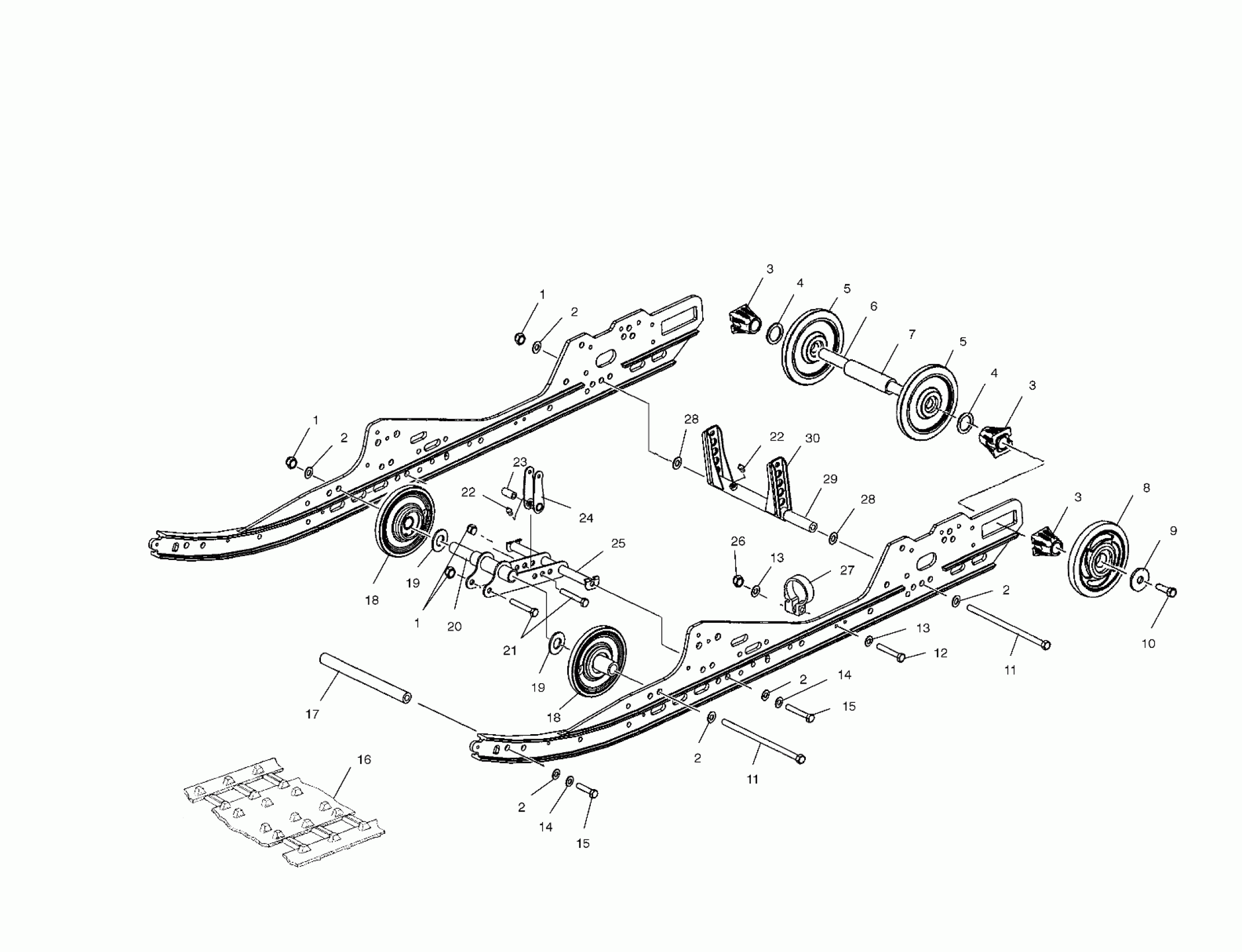

Polaris 600 PRO X - S02NX6ES SUSPENSION - S02NX6ES (4977057705B09) Diagram

#

Description
Price

1

Nut, Nylok

7542439

$1.49

1

Nut, Nylok

7542439

$1.49

1

Nut, Nylok

7542439

$1.49

2

Washer, Flat

7555806

$1.49

2

Washer, Flat

7555806

$1.49

2

Washer, Flat

7555806

$1.49

2

Washer, Flat

7555806

$1.49

2

Washer, Flat

7555806

$1.49

2

Washer, Flat

7555806

$1.49

3

SPACER-IDLER

5432535

$11.99

3

SPACER-IDLER

5432535

$11.99

3

SPACER-IDLER

5432535

$11.99

4

BUSHING

7555918

$1.59

4

BUSHING

7555918

$1.59

5

RING-RETAINING

7710444

$8.79

5

Wheel

1594087

$72.84

5

Bearing

3514012

Unavailable

5

RING-RETAINING

7710444

$8.79

5

Wheel

1594087

$72.84

5

Bearing

3514012

Unavailable

6

Shaft, Idler

5132066

$43.99

7

SPACER-IDLER, CENTER

5333283

$19.99

8

BEARING

3514384

$19.84

8

RING-RETAINING

7710444

$8.79

8

Asm., Idler Wheel

1590303-293

$48.56

9

WASHER

7556130

$6.39

10

BOLT

7517731

$1.49

11

SCREW

7517921

$23.99

11

SCREW

7517921

$23.99

12

Bolt

7515328

Unavailable

13

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

13

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

14

Washer, Spring Lock

7552603

$1.49

14

Washer, Spring Lock

7552603

$1.49

15

Screw

7517247

$3.19

15

Screw

7517247

$3.19

16

CLIP, GUIDE

5222840

Unavailable

16

Track

5411994

Unavailable

17

Shaft, Pivot Arm

5020723

$29.99

18

Asm., Wheel

1541642

$48.56

18

Asm., Wheel

1541642

$48.56

19

Bushing

7556301

$3.19

19

Bushing

7556301

$3.19

20

Shaft

5133232

$28.32

21

SCREW

7515417

$4.79

22

FITTING-LUBRICATION 1/4-28

7080424

$4.79

22

FITTING-LUBRICATION 1/4-28

7080424

$4.79

23

Bushing

5133233

$11.99

24

Arm, Shock Pivot

1541638-067

$49.59

25

Mount, Shock

1541711-067

$109.99

26

NUT-5/16-18 NYLOK-Y

7542324

$1.49

27

Clamp, Reservoir

5132968

$78.79

28

Washer, Flat

7555893

$1.49

28

Washer, Flat

7555893

$1.49

29

SHAFT

5334026

$28.32

30

Arm, Pivot, Rear

1541713-067

$254.99
