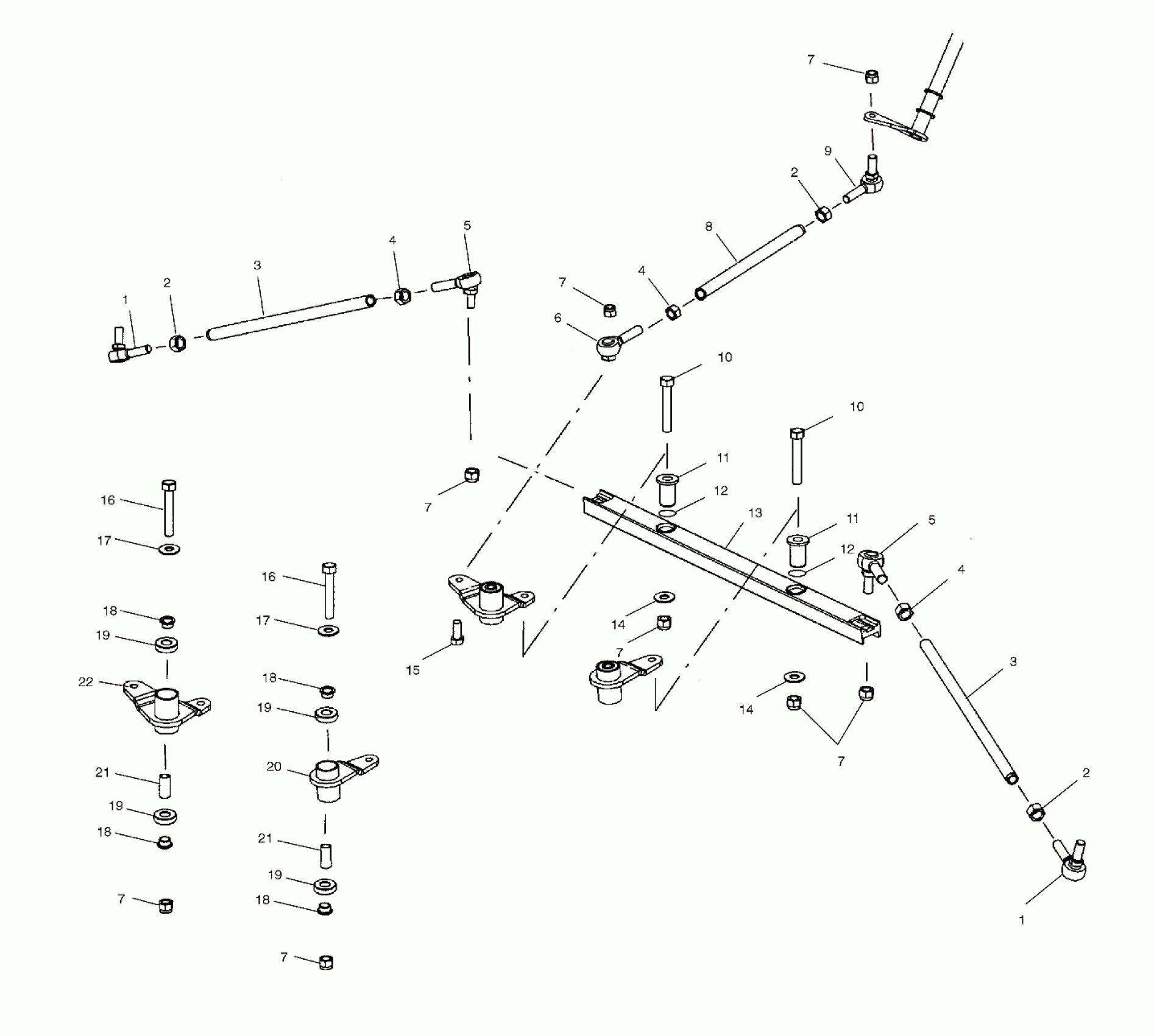

Polaris 600 PRO X - S02NX6ES STEERING - S02NX6ES (4977057705B02) Diagram

#

Description
Price

1

Rod End

7061057

$48.56

1

Rod End

7061057

$48.56

2

Nut [RH]

7542401

$2.39

2

Nut [RH]

7542401

$2.39

2

Nut [RH]

7542401

$2.39

3

Tie Rod

5333983

Unavailable

3

Tie Rod

5333983

Unavailable

4

Nut [LH]

7542424

$1.49

4

Nut [LH]

7542424

$1.49

4

Nut [LH]

7542424

$1.49

5

Rod End, LH

7061055

$48.56

5

Rod End, LH

7061055

$48.56

6

Rod End, LH

7061083

$48.56

7

Nut, Nylok

7542439

$1.49

7

Nut, Nylok

7542439

$1.49

7

Nut, Nylok

7542439

$1.49

7

Nut, Nylok

7542439

$1.49

7

Nut, Nylok

7542439

$1.49

7

Nut, Nylok

7542439

$1.49

7

Nut, Nylok

7542439

$1.49

8

Rod, Draglink

5333982-067

$36.83

9

ROD END, RH

7061084

$48.56

10

SCREW

7517583

$4.35

10

SCREW

7517583

$4.35

11

Bushing, Steering Rack

5132938

Unavailable

11

Bushing, Steering Rack

5132938

Unavailable

12

O-RING

5411220

$6.46

12

O-RING

5411220

$6.46

13

Asm., Steering Rack

1821157

$113.32

14

WASHER

7555983

Unavailable

14

WASHER

7555983

Unavailable

15

Screw

7512404

$3.99

16

Screw

7512435

$3.99

16

Screw

7512435

$3.99

17

Washer, Flat

7555797

$3.99

17

Washer, Flat

7555797

$3.99

18

BUSHING, REDUCER

5132106

$7.99

18

BUSHING, REDUCER

5132106

$7.99

18

BUSHING, REDUCER

5132106

$7.99

18

BUSHING, REDUCER

5132106

$7.99

19

Bearing, Ball

3514320

$15.99

19

Bearing, Ball

3514320

$15.99

19

Bearing, Ball

3514320

$15.99

19

Bearing, Ball

3514320

$15.99

20

Asm., Idler Arm [Incl. 18,19,21]

1821045

$148.79

21

Tube, Spacer

5133057

$5.83

21

Tube, Spacer

5133057

$5.83

22

Asm., Pitman Arm [Incl. 18,19,21]

1821043

$131.99
