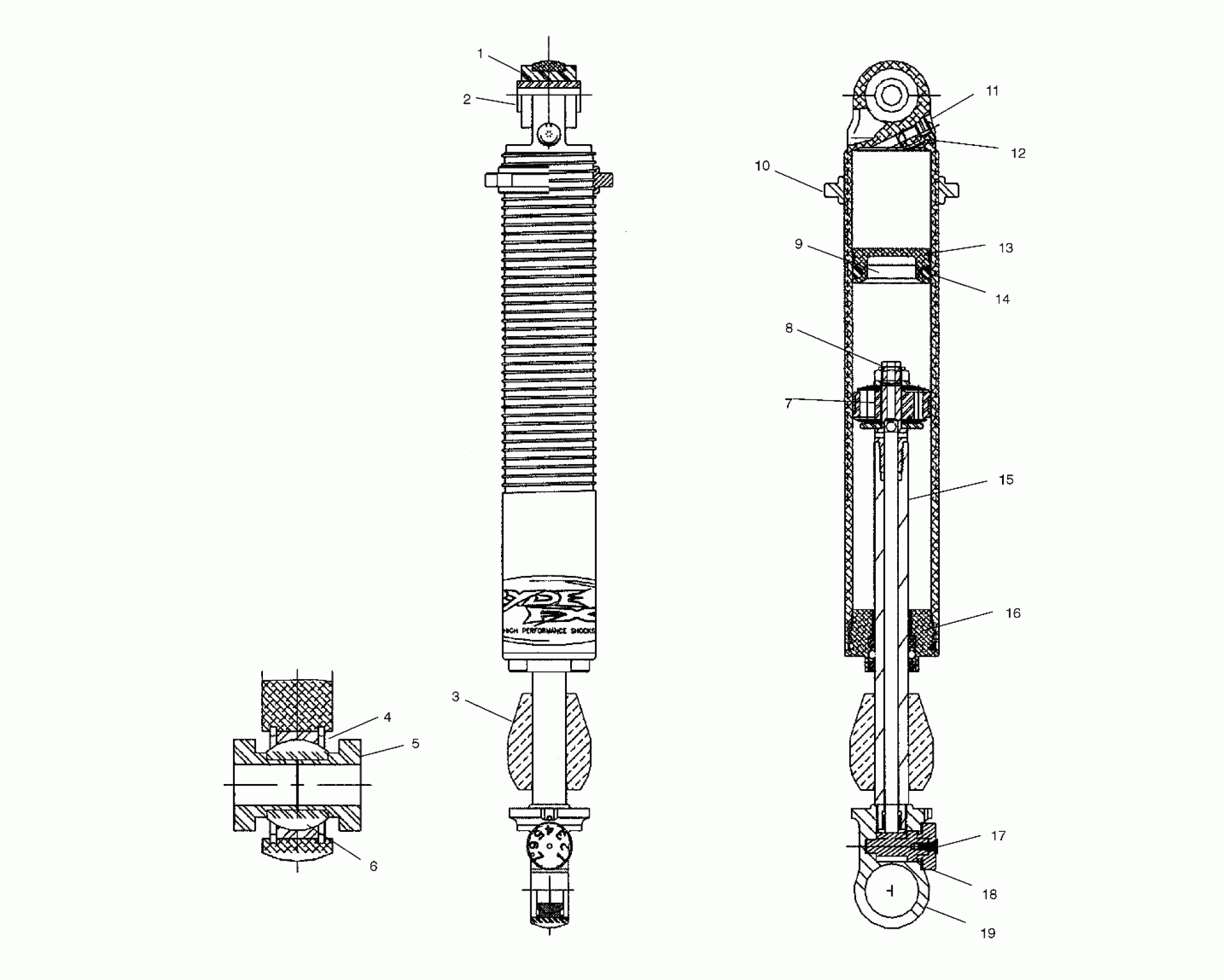

Polaris 600 PRO X - S02NX6ES SHOCK (IFS)(RYDE FX) - S02NX6ES (4977057705B14) Diagram

#

Description
Price

-

Kit, Piston Valving

2200618

Unavailable

-

Shock, IFS, IFP

7042109

Unavailable

1

Bushing

1700036

$7.99

2

Sleeve

1700037

Unavailable

3

Bumper, Compression

1700042

Unavailable

4

Ring, Snap

1700067

$6.79

5

Spacer

1700066

Unavailable

6

Bearing, Spherical

1700068

$41.59

7

Washer, Back-Up

1700078

$9.59

7

Band, Wear

1700031

$28.32

7

Washer, Top-Out

1700077

$10.39

7

Asm., Piston

1700109

Unavailable

8

Nut

1700057

$9.59

9

IFP

1700023

$45.59

10

Nut, Spring Retainer

1700030

Unavailable

11

Screw, Valve

1700056

$6.94

12

Asm., Pressure Valve

1700184

Unavailable

13

Band, Wear, IFP

1700032

$24.99

14

O-Ring, IFP

1700048

$11.60

15

Shaft

1700189

Unavailable

16

O-Ring, External

1700051

Unavailable

16

Scraper, Rod

1700019

$27.79

16

O-Ring, Internal

1700046

Unavailable

16

Seal, Rod

1700020

$27.79

16

Asm., Cylinder Head

1700190

$186.65

16

BEARING, DU

-------

Unavailable

17

Screw

1700192

$10.63

18

Knob, Clicker

1700193

$58.39

19

Asm., Upper Mount [Incl. 17,18]

1700191

$189.59
