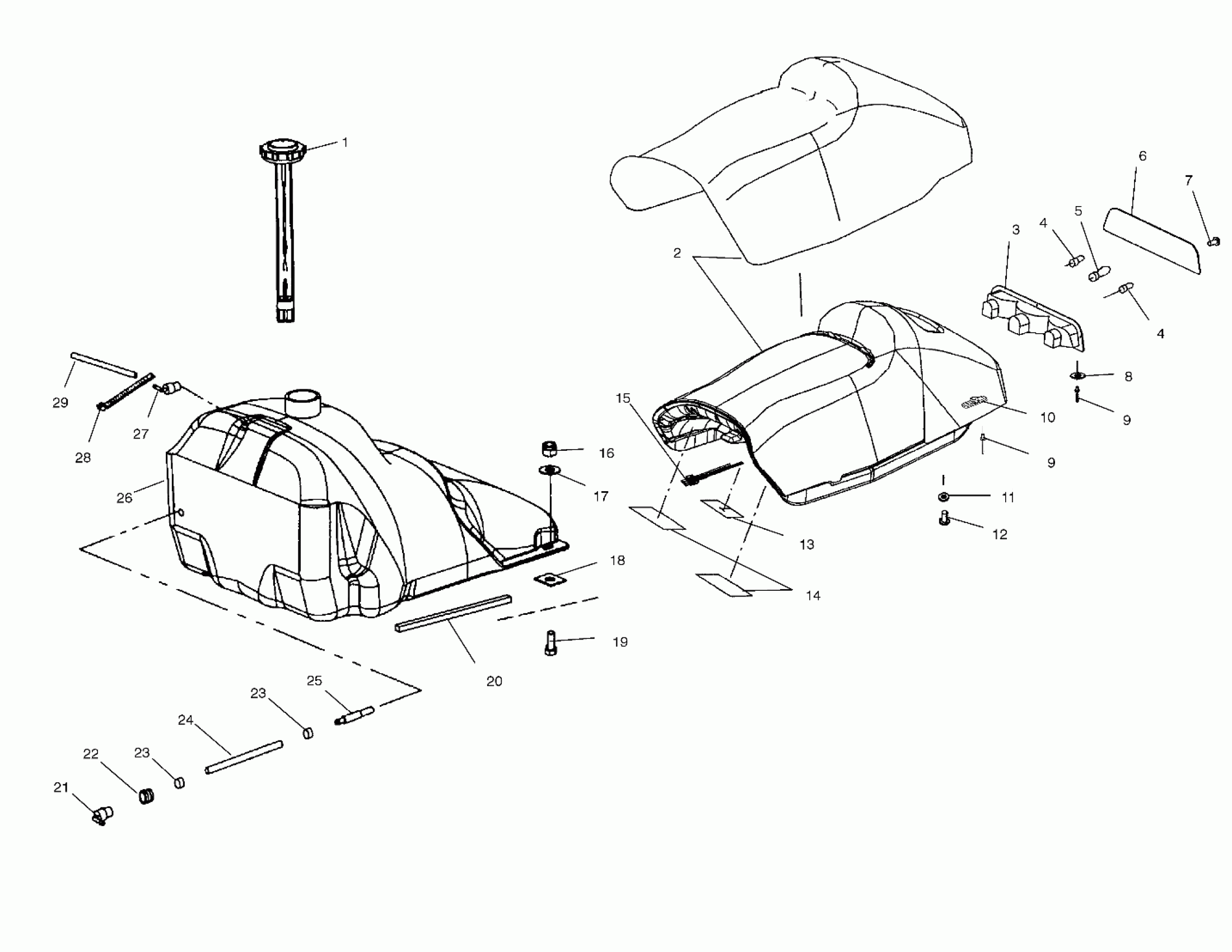

Polaris 600 PRO X - S02NX6ES SEAT and GAS TANK - S02NX6ES (4977057705A04) Diagram

#

Description
Price

1

Cap, Fuel

1240066

Unavailable

2

Asm., Seat [Incl. 2-7,10]

2683107

$514.99

2

Cover, Seat

2683102

Unavailable

3

Housing, Taillight

5433341

Unavailable

4

Bulb, Taillight

4030024

$4.84

4

Bulb, Taillight

4030024

$4.84

5

Bulb, Brakelight

4030045

Unavailable

6

Lens

5430423

Unavailable

7

Screw

7511840

Unavailable

8

WASHER

7555727

$1.49

9

RIVET

7621319

$1.49

9

RIVET

7621319

$1.49

10

NUT, SEAT

5631194

$4.99

11

Washer, Flat

7558301

$1.49

12

SCREW

7517219

$4.79

13

Gasket, Wire Harness

5812291

Unavailable

14

Patch

5812289

$2.47

15

Harness, Taillight

2460399

Unavailable

16

Nut, Nylok

7542122

$1.49

17

WASHER, FLAT

7555960

$3.99

18

Nut, Speed

7670021

$6.99

19

BOLT, CARRIAGE

7512193

$2.39

20

FOAM-SEAL,REAR COOLER

5810947

$4.03

21

Fitting

7052259

Unavailable

22

Grommet, Fitting, Flanged

7052028

$6.39

23

RING, COMPRESSION

7080402

$1.60

23

RING, COMPRESSION

7080402

$1.60

24

LINE, FUEL

8350019-600

Unavailable

25

Pickup w/Filter, Fuel

7052301

$12.94

26

Asm., Fuel Tank, [Incl. 20-22]

2520287

$191.99

27

Fitting

7052095

$4.79

28

CABLE TIE, RELEASABLE

7080804

$3.22

29

Line

8450061-600

Unavailable
