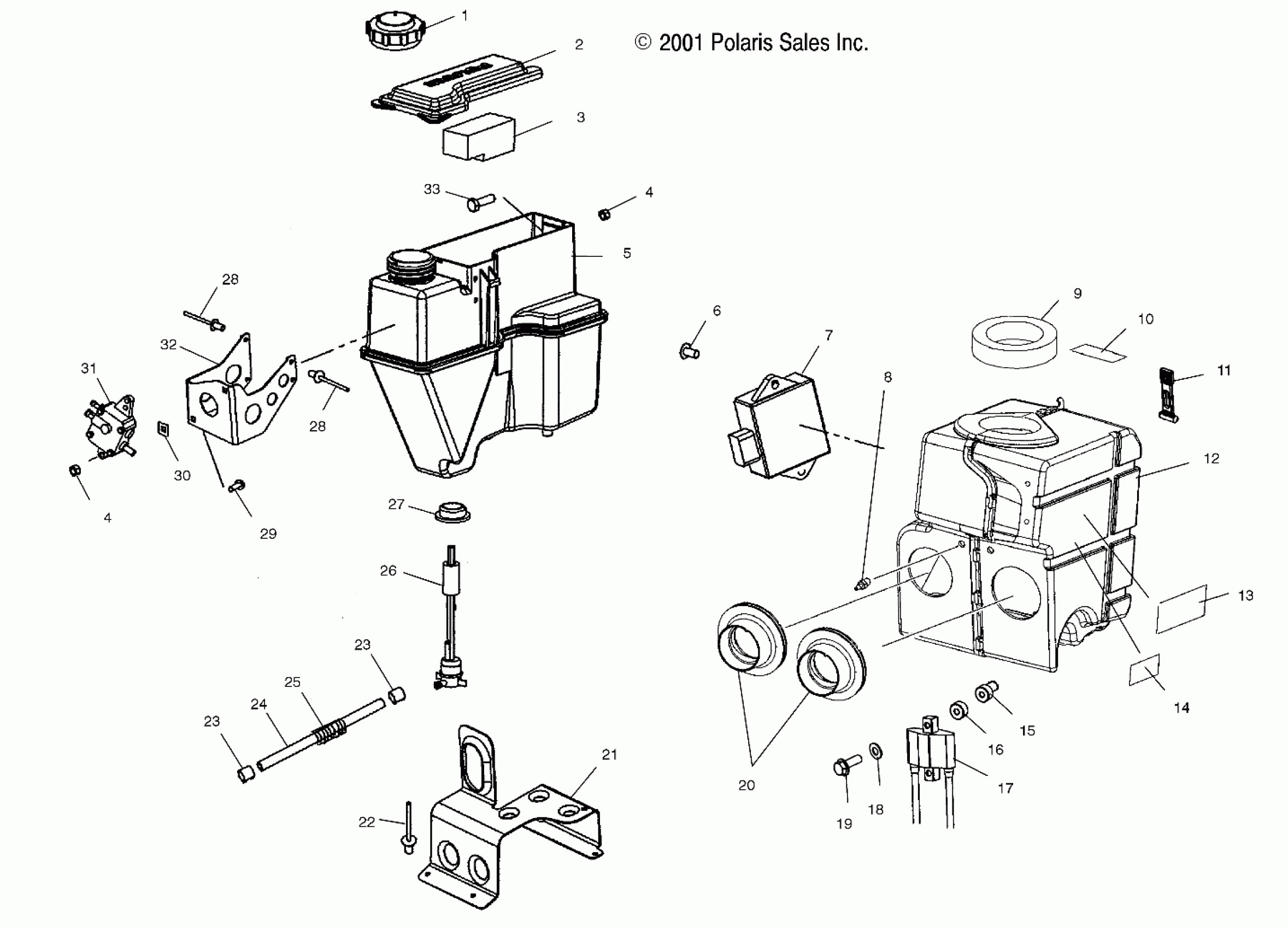

Polaris 600 PRO X - S02NX6ES OIL TANK/AIR BOX - S02NX6ES (4977057705C04) Diagram

#

Description
Price

1

Cap, Oil

1240094

$36.41

2

Cover, Tool Box

5434089

$27.19

3

Foam, Tool Box

5812209

Unavailable

4

Nut, Nylok

7542122

$1.49

4

Nut, Nylok

7542122

$1.49

5

Tank, Oil

1261202

$115.08

5

Asm., Oil Tank [Incl. 2,26]

1253456

$115.99

6

Screw

7512095

$4.79

7

KIT, CDI [SEE MAGNETO PG. C12, REF. 10]

-------

Unavailable

8

Fitting

7052077

$6.39

9

Foam, Air Box, Chimney

5811983

$20.22

10

Decal, Caution, Air Box

7075351

Unavailable

11

STRAP-AIRBOX TOP

5433150

$24.27

12

Asm., Air Silencer [Incl. 20 & Decals]

1253416

Unavailable

13

Decal, Adjustable Driven Clutch

7073820

Unavailable

14

Decal, Greasing

7073426

$7.27

15

Nut, Well

7547103

$8.79

16

Washer, Nylon

7555932

$2.39

17

COIL [See Magneto Pg. C12, Ref. 12]

-------

Unavailable

18

WASHER-1/4X1/2X.025 EXT TTH-Y

7552604

$1.59

19

Screw

7517610

$1.59

20

Boot, Carburetor

5411424

Unavailable

21

Bracket, Oil Bottle, Lower

5245801

$25.59

22

RIVET-3/16-.090-.290

7661637

$1.49

23

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

23

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

24

HOSE

8450003-1525

Unavailable

25

Conduit, Convoluted

4010051-18

Unavailable

26

Fitting, Oil Sender

4010550

$60.70

27

Grommet, Oil Sender

7052305

$4.84

28

RIVET

7621479

$1.99

28

RIVET

7621479

$1.99

29

Bolt, Carriage

7512263

$3.99

30

Nut, Speed

7670021

$6.99

31

ASM., FUEL PUMP [See Engine Mounting Pg. C3, Ref. 13]

-------

Unavailable

32

Bracket, Fuel Pump

5246113

$34.71

33

Screw

7512297

$5.59
