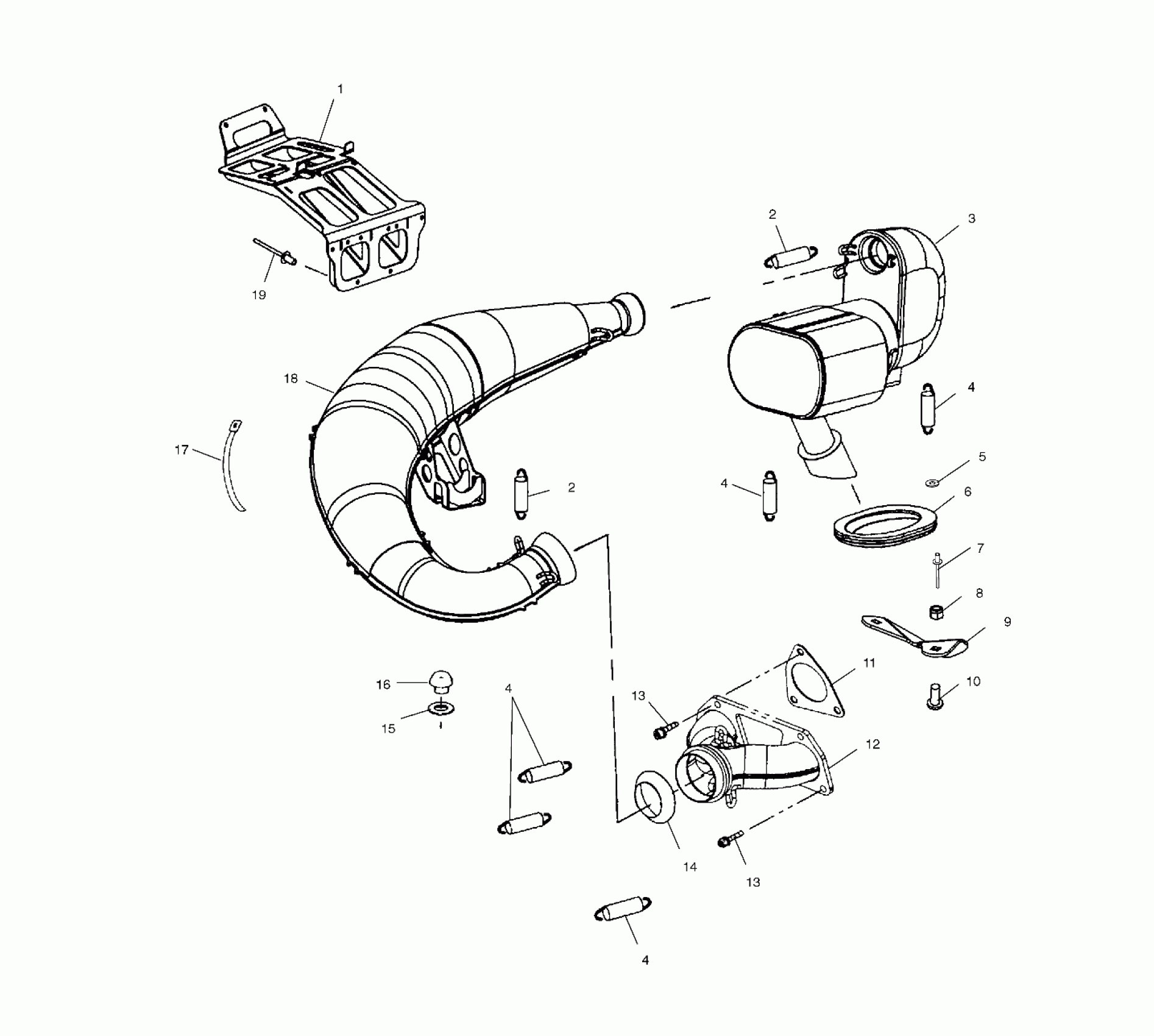

Polaris 600 PRO X - S02NX6ES EXHAUST - S02NX6ES (4977057705C05) Diagram

#

Description
Price

1

Bracket, Chassis/Resonator

1261174-029

$113.99

2

Spring

7042029

$4.84

2

Spring

7042029

$4.84

3

Resonator

1261130-029

$649.99

4

SPRING-EXHAUST

7041687

$5.65

4

SPRING-EXHAUST

7041687

$5.65

4

SPRING-EXHAUST

7041687

$5.65

4

SPRING-EXHAUST

7041687

$5.65

5

Washer

7555904

$1.49

6

Boot, Exhaust Outlet

5411684

Unavailable

7

RIVET

7621467

$1.49

8

Nut, Flange

7542321

$1.49

9

Deflector, Snow, Exhaust

5243929

$24.27

10

Bolt, Carriage

7512394

Unavailable

11

Gasket, Exhaust

5811838

$8.89

12

Manifold

1261154-029

$82.39

13

Screw

7517322

$2.39

13

Screw

7517322

$2.39

14

Seal, Exhaust

3610046

$36.41

15

WASHER

7556004

$7.19

16

Dampener, Vibration

5411576

$7.99

17

Clamp [.44 x 3.75]

7080812

$19.99

17

Clamp [.44 x 4.25]

7080813

$3.99

17

Clamp [.44 x 6.5]

7080811

$11.99

18

Cover, Tuned Pipe, Top

5244398

Unavailable

18

Matte, Sound, Top

5830207

$12.39

18

Asm., Tuned Pipe

1261155

Unavailable

18

Matte, Sound

5830212

$13.19

18

Cover, Tuned Pipe, Bottom

5245517

$49.59

19

RIVET-3/16-.090-.290

7661637

$1.49
