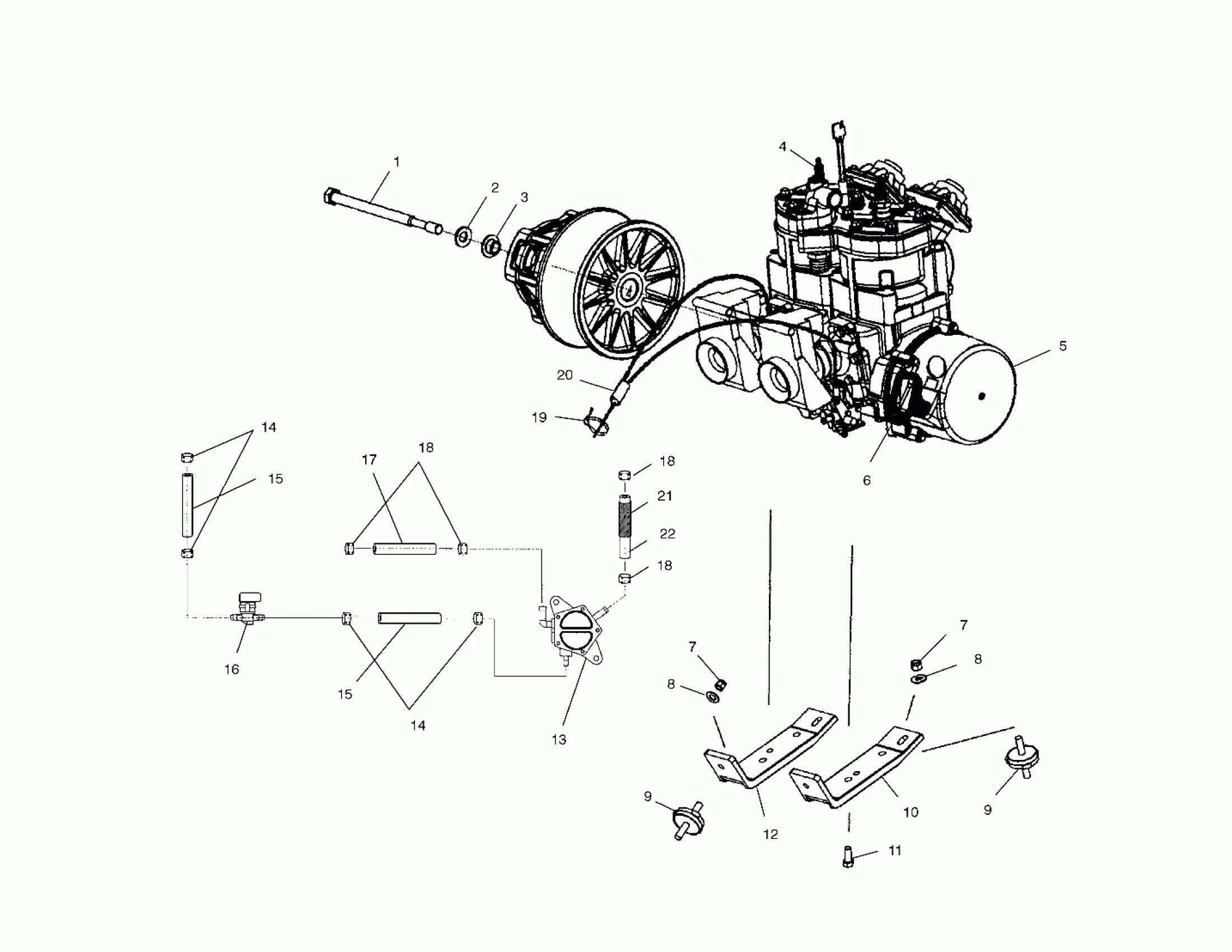

Polaris 600 PRO X - S02NX6ES ENGINE MOUNTING - S02NX6ES (4977057705C03) Diagram

#

Description
Price

1

Screw

7517501

Unavailable

2

WASHER

7556003

$6.39

3

WASHER, CLUTCH RETAINER

5131872

Unavailable

4

Spark Plug, RN57YCC

3070190

$3.99

5

Engine, Short Block [S-60-44-02] NOTE: The Short Block assembly contains a crankcase assembly, cylinder and cylinder head assembly, and a piston and crankshaft assembly. Prior authorization is requi

2202151

Unavailable

6

Handle, Recoil

5431499-070

$15.48

7

NUT-HEX-3/8-16 A ZTB NYL

7542451

$1.49

7

NUT-HEX-3/8-16 A ZTB NYL

7542451

$1.49

8

Washer, Flat

7555893

$1.49

8

Washer, Flat

7555893

$1.49

9

Mount, Engine, 3 Tab

3021244

Unavailable

9

Mount, Engine, 3 Tab

3021244

Unavailable

10

Strap, Engine Mount, RH

5245271

$78.39

11

Screw

7517399

$8.99

12

Strap, Engine Mount, LH

5245270

$78.39

13

Pump, Fuel

2520278

$91.99

14

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

14

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

15

Line, Fuel

8350018-600

Unavailable

15

Line, Fuel

8350018-600

Unavailable

16

Valve, Fuel Shut-Off

7052248

$24.27

17

Line, Fuel

8350017-600

Unavailable

18

HOSE CLAMP, RED

7080003

$1.49

18

HOSE CLAMP, RED

7080003

$1.49

18

HOSE CLAMP, RED

7080003

$1.49

19

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

20

Cable, Throttle

7080867

$36.79

21

Tubing, Convoluted

8360052-15

Unavailable

22

Line, Fuel

8450040-600

Unavailable
