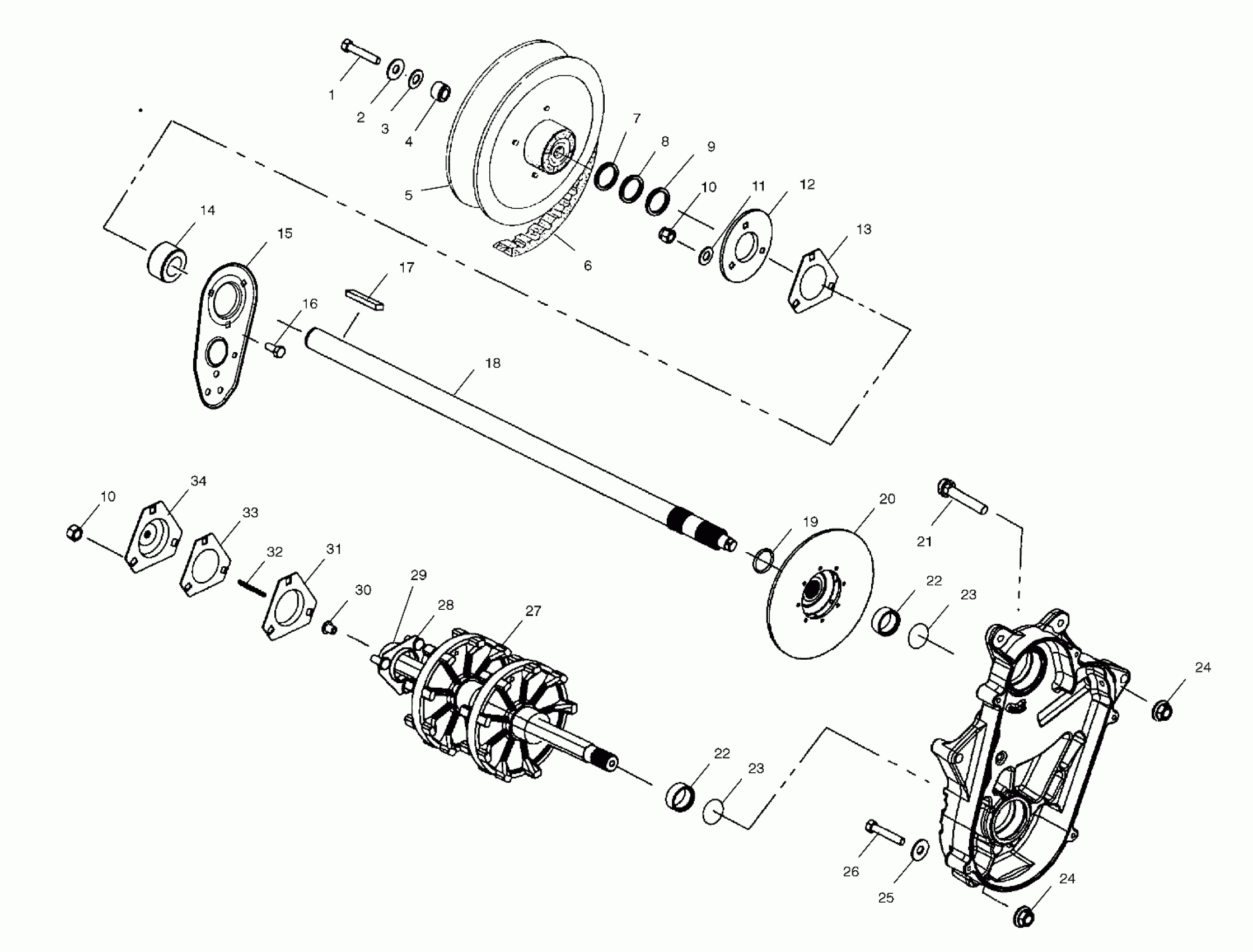

Polaris 600 PRO X - S02NX6ES DRIVE TRAIN - S02NX6ES (4977057705B07) Diagram

#

Description
Price

1

Bolt

7515301

Unavailable

2

WASHER, FLAT

7555701

$3.99

3

Washer, Flat

7555734

Unavailable

4

Spacer, Input Shaft

5133106

Unavailable

5

ASM., DRIVEN CLUTCH, BASIC 204 W/B [See Driven Clutch Pg. B13, Ref. 9]

-------

Unavailable

6

Belt, Drive

3211080

$139.99

7

WASHER

7555917

Unavailable

8

WASHER

7555864

Unavailable

9

Bushing

7556509

Unavailable

10

NUT-5/16-18 NYLOK-Y

7542324

$1.49

10

NUT-5/16-18 NYLOK-Y

7542324

$1.49

11

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

12

Flangette w/Grease Fitting

5241359

$32.37

13

Gasket, Jackshaft

5811095

$2.41

14

Bearing, Jackshaft, 1"

3514519

$64.99

15

Flangette

5245889-067

Unavailable

16

Bolt, Carriage

7512377

$4.79

17

Key

7721128

$10.39

18

Asm., Jackshaft [Incl. 19]

1332255

Unavailable

19

RING, RETAINING

7710422

$3.99

20

Disc, Brake

1910403

Unavailable

21

Bolt, Carriage

7515428

$4.79

22

SLEEVE, SEAL

5020588

$23.99

22

SLEEVE, SEAL

5020588

$23.99

23

O-RING

5410613

$1.99

23

O-RING

5410613

$1.99

24

Nut, Flange

7542423

$3.99

24

Nut, Flange

7542423

$3.99

25

Washer

7558403

$4.79

26

Screw

7512492

$1.49

27

Asm., Drive Shaft [Incl. 28,29,30]

1590346

$411.49

28

ASM., FLANGETTE W/SCREWS

1012945

$114.99

29

BEARING

3514525

$31.99

30

Bushing, Speedometer, Metal

3280019

$11.99

31

Flangette

5243529

$13.75

32

Key, Speedometer, Square

3280017

$13.75

33

Gasket, Drive Adaptor

5830012

$2.41

34

Adaptor w/Fitting, Drive

3280116

$101.17
