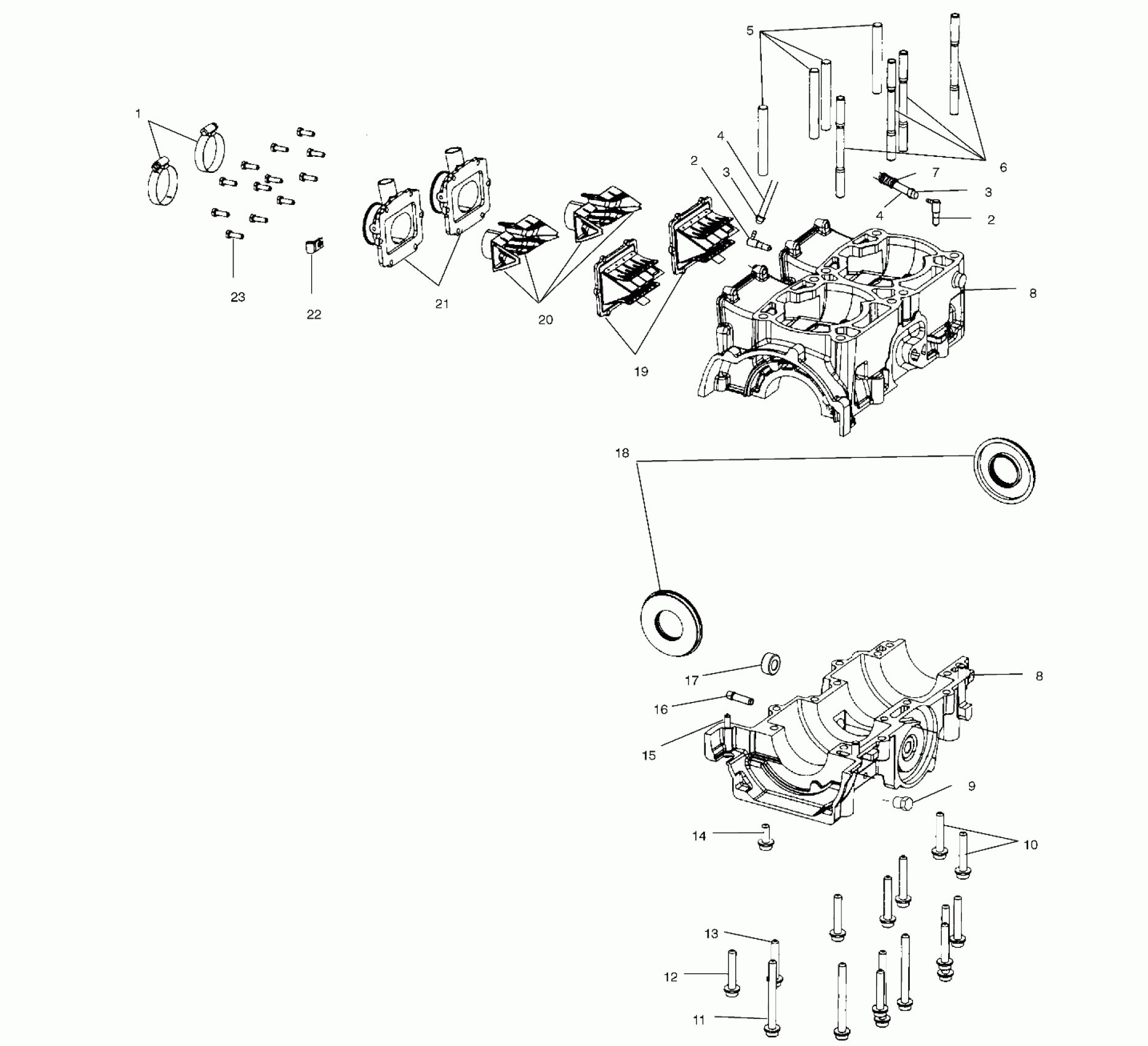

Polaris 600 PRO X - S02NX6ES CRANKCASE - S02NX6ES (4977057705C06) Diagram

#

Description
Price

1

Clamp, Hose

7080681

$9.59

2

VALVE-CHECK,90,1/8"7MM BORE

7051020

$32.37

2

VALVE-CHECK,90,1/8"7MM BORE

7051020

$32.37

3

Clamp, Hose

7080603

$1.59

3

Clamp, Hose

7080603

$1.59

4

LINE, OIL

8450061-600

Unavailable

4

LINE, OIL

8450061-600

Unavailable

5

Stud

5132196

$20.63

6

Stud

5132197

$21.27

7

TUBING, CONVOLUTED

8360056-25

$4.03

8

Kit - Crankcase [Incl. 5,6,9-15]

2201931

$444.99

8

Kit - Crankcase [Incl. 5,6,9-15]

2201931

$444.99

9

Plug

7051529

$15.99

10

Screw

7517785

$9.59

11

Screw

7517784

$8.79

12

SCREW

7516825

$5.59

13

Screw

7517786

$6.39

14

SCREW

7517577

$3.99

15

PIN-DOWEL,M8 X 16 SS

7663001

$11.19

16

Fitting, Straight

7052145

$9.59

17

Bearing, Pumpshaft

5010390

Unavailable

18

Seal

5411394

$29.99

19

Asm., Reed Valve

1201825

$134.99

20

Stuffer, Reed

5432852

Unavailable

21

Adaptor, Carb

1253414

Unavailable

22

CLAMP, HOSE

7080683

$2.39

23

SCREW

7516822

$2.39
