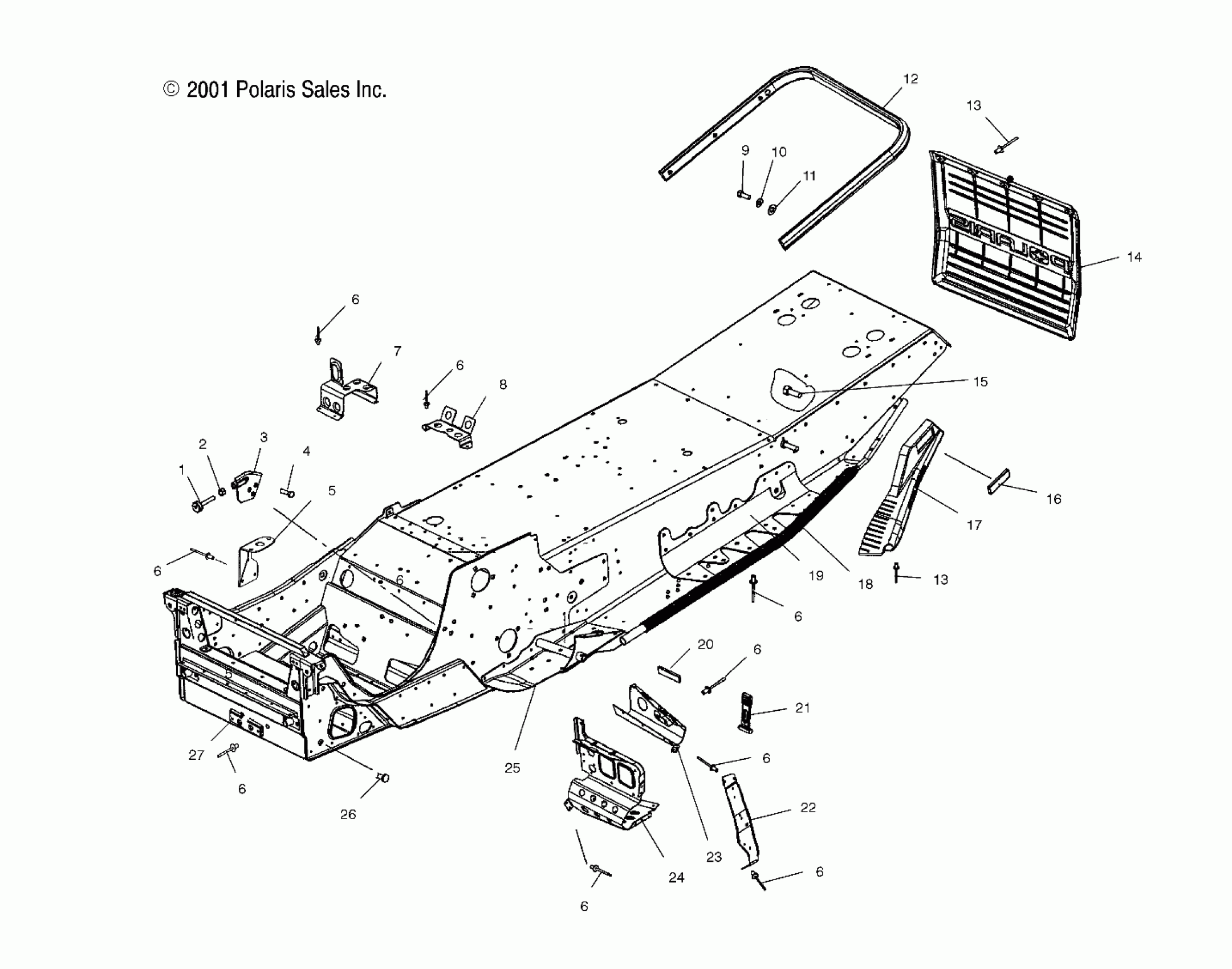

Polaris 600 PRO X - S02NX6ES CHASSIS - S02NX6ES (4977057705A03) Diagram

#

Description
Price

-

Asm., Chassis, Racer

1013647-309

Unavailable

1

Stop, Torque

3021104

$20.22

2

NUT

7542404

$1.59

3

Stop, Torque

1013458

Unavailable

4

SCREW

7517632

$5.59

5

Bracket, Chassis/Tuned Pipe

5245514

Unavailable

6

RIVET-3/16-.090-.290

7661637

$1.49

6

RIVET-3/16-.090-.290

7661637

$1.49

6

RIVET-3/16-.090-.290

7661637

$1.49

6

RIVET-3/16-.090-.290

7661637

$1.49

6

RIVET-3/16-.090-.290

7661637

$1.49

6

RIVET-3/16-.090-.290

7661637

$1.49

6

RIVET-3/16-.090-.290

7661637

$1.49

6

RIVET-3/16-.090-.290

7661637

$1.49

6

RIVET-3/16-.090-.290

7661637

$1.49

7

Bracket, Oil Bottle, Lower

5245801

$25.59

8

Bracket, Mount, Airbox

5245398

$22.23

9

BOLT

7512240

$3.99

10

WASHER, SPRING LOCK

7552801

$1.59

11

WASHER

7558301

$1.49

12

Bumper, Rear

2632165-216

Unavailable

13

RIVET

7621472

$1.49

13

RIVET

7621472

$1.49

14

Flap, Snow

5433521-1106

Unavailable

15

Screw

7517441

$2.39

16

Reflector, Red

2670133

$5.75

17

Skirt, Snow, w/Reflector, LH

2632443-070

$64.75

17

Skirt, Snow, w/Reflector, RH

2632444-070

$55.99

18

Grip, Tunnel Roll, LH

5132903-216

$45.24

18

Grip, Tunnel Roll, RH

5132904-216

Unavailable

19

Brace, Tunnel, LH

5245820-216

$58.39

19

Brace, Tunnel, RH

5245821-216

$46.00

20

Pad, Clutch Guard

5812352

Unavailable

21

STRAP-AIRBOX TOP

5433150

$24.27

22

Support, Footrest, LH

5246310

$19.83

22

Support, Footrest, RH

5246311

$32.37

23

Mount, Console, Toe Clip, LH

5245457

Unavailable

23

Mount, Console, Toe Clip, RH

5245458

Unavailable

24

Footrest, LH

5245288

Unavailable

24

Footrest, RH

5242740

Unavailable

25

Mount, Trailing Arm, RH

1013650

Unavailable

25

Mount, Trailing Arm, LH

1013649

Unavailable

26

Plug

7080416

$5.65

27

Bracket, Radius Rod Strap, Lower

5245250

$11.59
