Description

Price

-

KIT, LORD, 406 REPAIR KIT, 50 ML [ADHESIVE]

2204171

$294.99

-

KIT, LORD, 406, 50 ML CARTRIDGE [ADHESIVE]

2204400

$74.99

-

KIT, LORD, MIX NOZZLES, 12 PIECE

2204172

$4.99

1

TUBE-CROSSOVER, EXTRUDED

5140781

$106.49

2

STUD

7519204

$19.99

2

STUD

7519204

$19.99

3

ASM., BRKT., IDLER TOP

1019666

$28.32

3

ASM., BRKT., IDLER TOP

1019666

$28.32

4

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

4

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

4

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

4

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

5

SCREW

7519070

$6.39

5

SCREW

7519070

$6.39

5

SCREW

7519070

$6.39

5

SCREW

7519070

$6.39

5

SCREW

7519070

$6.39

5

SCREW

7519070

$6.39

6

SCREW

7518906

$3.19

6

SCREW

7518906

$3.19

6

SCREW

7518906

$3.19

6

SCREW

7518906

$3.19

7

ASM., BRACE, LOWER, LH [REQUIRES ADHESIVE][INCL. SLEEVE]

1019183

$139.99

8

SCREW

7518656

$3.99

8

SCREW

7518656

$3.99

9

ASM., CLIP W/STUD, LH [INCL. 2][REQUIRES ADHESIVE]

1019181

$329.99

10

MOUNT, STEERING, LOWER

5138449

$16.99

11

ASM-COOLER, BULKHEAD [INCL. CLINCH NUTS]

1241285

$534.99

12

SCREW

7516732

$1.59

12

SCREW

7516732

$1.59

12

SCREW

7516732

$1.59

13

ASM., CLIP W/STUD, RH [INCL. 2][REQUIRES ADHESIVE]

1019182

$309.99

14

FLOOR, BULKHEAD

5256849

$29.03

15

RIVET-3/16-.090-.290

7661637

Unavailable

15

RIVET-3/16-.090-.290

7661637

Unavailable

16

ASM-STUD PLATE M6X4

1020927

$34.99

17

ASM., CHAINCASE [SEE DRIVE TRAIN, CHAINCASE]

-------

Unavailable

18

SCREW

7519049

$7.19

19

RIVET

7661973

$1.49

19

RIVET

7661973

$1.49

20

WASHER

7556588

$2.39

21

NUT

7547505

$2.39

22

MOUNT-JACKSHAFT BRG.

5139244

Unavailable

23

ASM-NUT PLATE, JACKSHAFT

1024312

$19.99

24

SCR-M5X0.8X12 10.9 TX/BH ZPC

7520967

$3.99

25

CLOSEOFF-TUNNEL FRONT MACH

5139282

$154.99

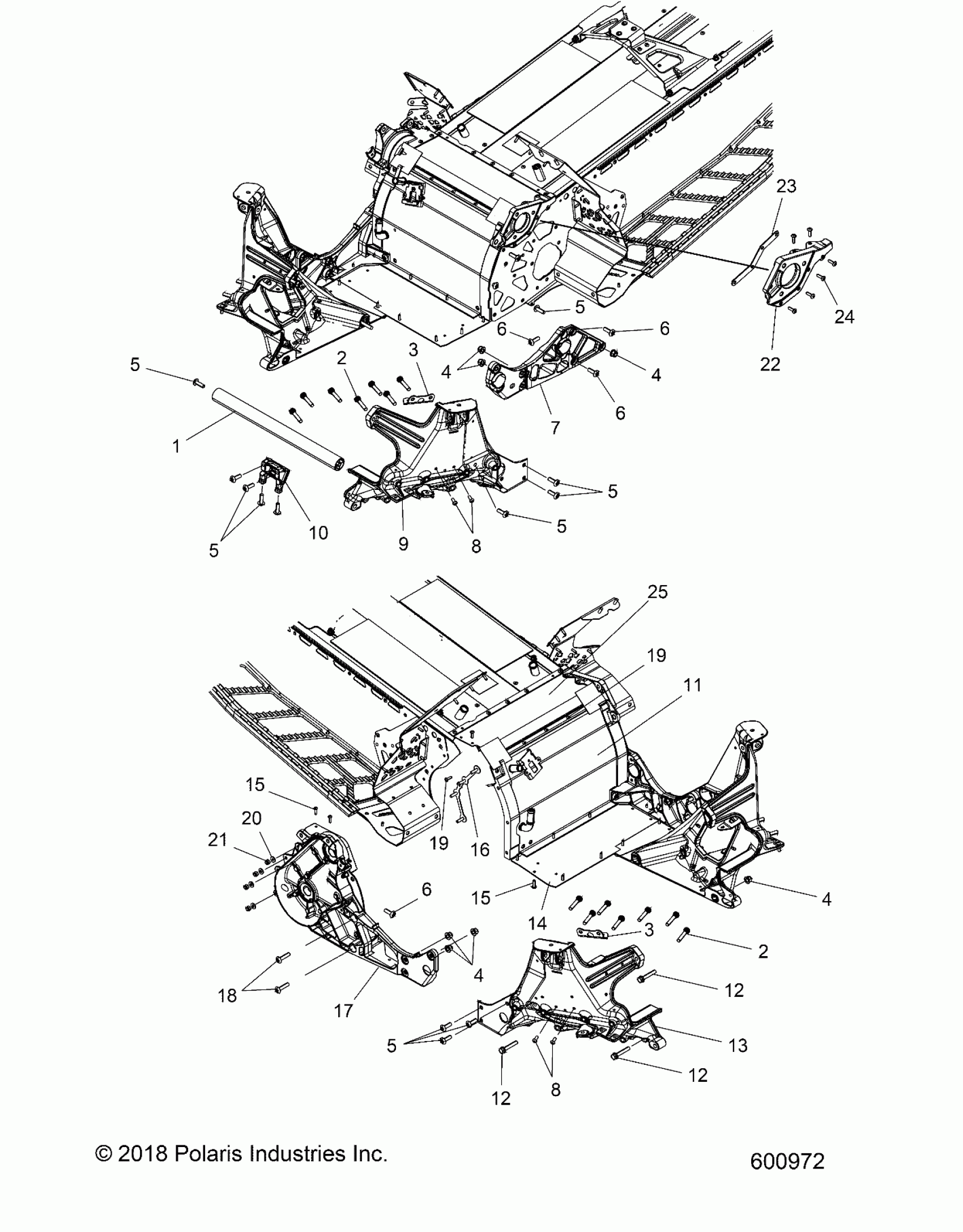

Polaris 600 INDY XC 129 SC SELECT ALL OPTIONS (R04) - S19EKP6PS/PEM CHASSIS, BULKHEAD ASM. - S19EKP6PS/PEM (600972) Diagram

KIT, LORD, 406 REPAIR KIT, 50 ML [ADHESIVE]

KIT, LORD, 406, 50 ML CARTRIDGE [ADHESIVE]

KIT, LORD, MIX NOZZLES, 12 PIECE

TUBE-CROSSOVER, EXTRUDED

STUD

STUD

ASM., BRKT., IDLER TOP

ASM., BRKT., IDLER TOP

NUT- M8X1.25, FLG, NYLOC-OLIVE D

NUT- M8X1.25, FLG, NYLOC-OLIVE D

NUT- M8X1.25, FLG, NYLOC-OLIVE D

NUT- M8X1.25, FLG, NYLOC-OLIVE D

SCREW

SCREW

SCREW

SCREW

SCREW

SCREW

SCREW

SCREW

SCREW

SCREW

ASM., BRACE, LOWER, LH [REQUIRES ADHESIVE][INCL. SLEEVE]

SCREW

SCREW

ASM., CLIP W/STUD, LH [INCL. 2][REQUIRES ADHESIVE]

MOUNT, STEERING, LOWER

ASM-COOLER, BULKHEAD [INCL. CLINCH NUTS]

SCREW

SCREW

SCREW

ASM., CLIP W/STUD, RH [INCL. 2][REQUIRES ADHESIVE]

FLOOR, BULKHEAD

RIVET-3/16-.090-.290

RIVET-3/16-.090-.290

ASM-STUD PLATE M6X4

ASM., CHAINCASE [SEE DRIVE TRAIN, CHAINCASE]

SCREW

RIVET

RIVET

WASHER

NUT

MOUNT-JACKSHAFT BRG.

ASM-NUT PLATE, JACKSHAFT

SCR-M5X0.8X12 10.9 TX/BH ZPC

CLOSEOFF-TUNNEL FRONT MACH
