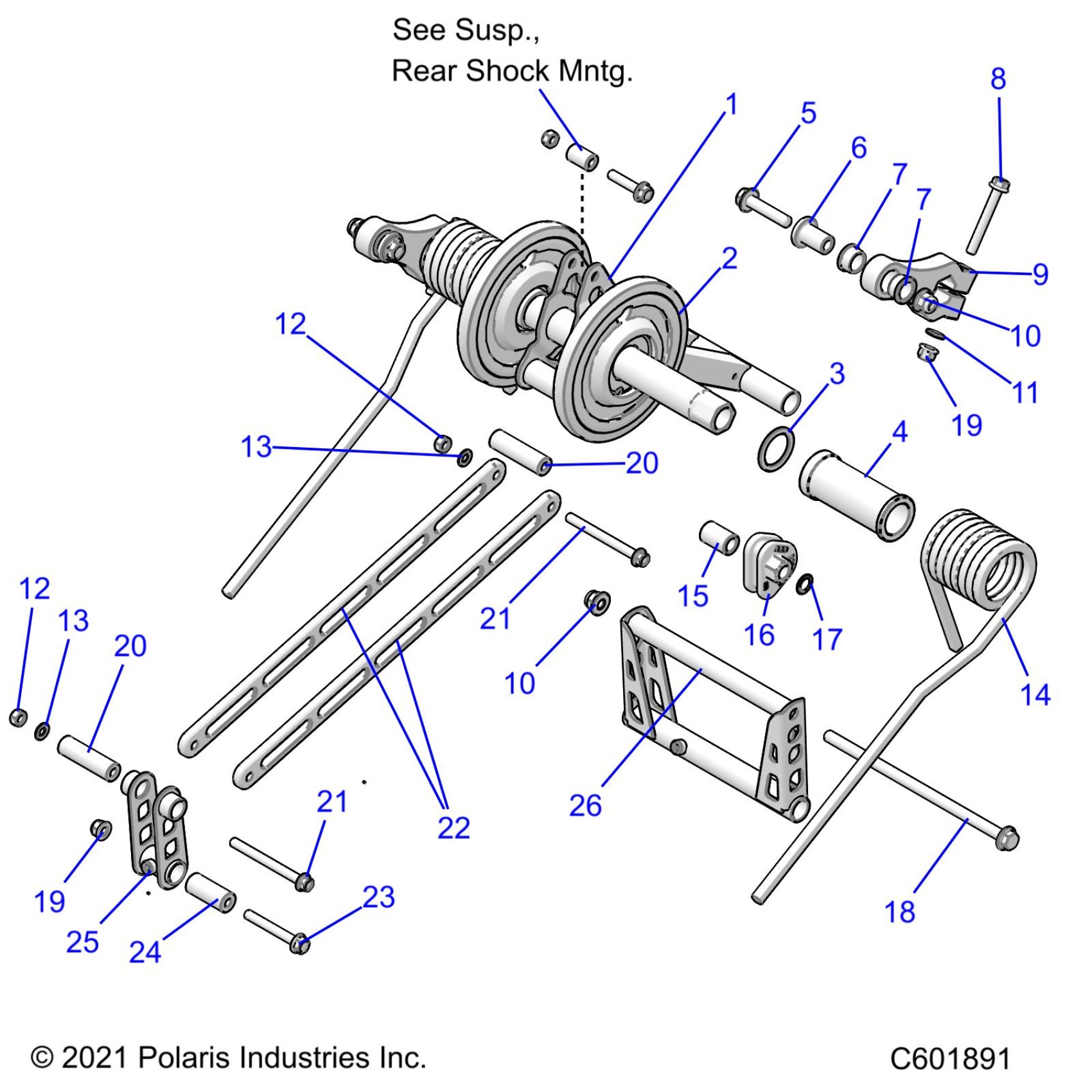

Polaris 600 INDY CROSSCOUNTRY 136 (R01) - S23TDL6KSA SUSPENSION, TORQUE ARM, REAR - S23TDL6KSA (C601891) Diagram

#

Description
Price

1

WELD-RTA ECOAT

1543906-329

$249.99

2

RING-RETAINING

7710486

Unavailable

2

BEARING-6007

3514445

Unavailable

2

ASM-WHEEL,PLAIN,6.38,6007

1590001

$72.84

3

WSHR-1.28X1.69X.075-Y

7555939

Unavailable

4

SLEEVE-TORSION SPRING

5434989

$3.99

5

SCREW, HXFLG

7518971

$6.39

6

SHAFT-RTA MOUNT

5141400

$13.75

7

BUSHING-CRANK

5438876

$7.99

7

BUSHING-CRANK

5438876

$7.99

8

SCR-M8X1.25X65-HX/FL-Y,CL 10.9

7519212

$4.79

9

ASM-ARM 83.2 NARROW [INCL 8]

1544129

$40.46

10

NUT-M10X1.5 HFN NYLOC ZOD

7547423

$3.99

10

NUT-M10X1.5 HFN NYLOC ZOD

7547423

$3.99

11

WASHER-.344X.688X.063 FL-ZOD

7556524

$1.49

12

NUT-HEX-M8X1.25 8 ZOD NYL

7547480

$2.39

12

NUT-HEX-M8X1.25 8 ZOD NYL

7547480

$2.39

13

WASHER-FL 8.4X16.0X.91 HRD ZOD

7557059

$3.19

13

WASHER-FL 8.4X16.0X.91 HRD ZOD

7557059

$3.19

14

SPRING, TOR,.375S,80,13#,RH,HD, BLK

7045208-329

$117.37

14

SPRING, TOR,.375S,80,13#,LH,HD, BLK

7045207-329

$117.37

15

SPACER-.520X.770X1.185,HDPE

5334285

$2.39

16

ROLLER-SPRING,TRI-ADJ,RH

5434590

$28.32

16

ROLLER-SPRING,TRI-ADJ,LH

5434589

$32.37

17

CLIP-PUSH ON

7080394

$2.39

18

SCR-HXFL-M10X1.5X230 8.8 ZY3

7518472

$6.39

19

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

19

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

20

BUSHING-PULL ROD

5142128

$8.79

20

BUSHING-PULL ROD

5142128

$8.79

21

SCR-HXFLG,M8X1.25X90

7519154

$7.19

21

SCR-HXFLG,M8X1.25X90

7519154

$7.19

22

ROD-SHOCK HD MACH ANOD

5144133

$44.43

23

SCR-HXFL-M8X1.25X65 8.8 ZOD

7519971

$5.59

24

BUSHING-SHOCK PIVOT ARM

5142127

$11.99

25

FITTING-LUBRICATION 1/4-28

7080424

$4.79

25

WELD-SHOCK PIVOT ARM ECOAT [DOES NOT INCLUDE FITTING, LUBRICATION]

1544017-329

$36.41

26

SHAFT-RTA LOWER

5142129

$24.27
