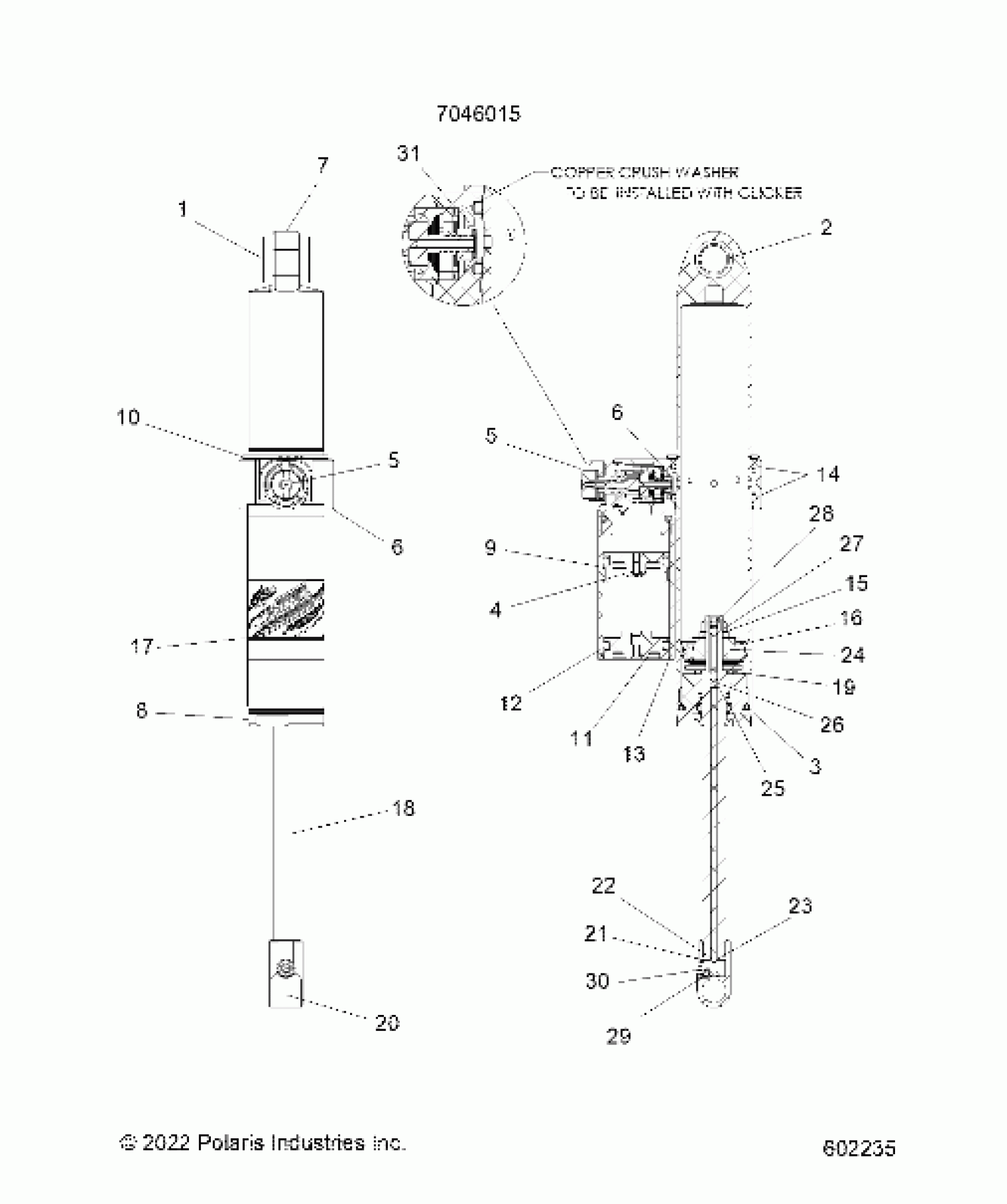

Polaris 600 INDY CROSSCOUNTRY 136 (R01) - S23TDL6KSA SUSPENSION, SHOCK, REAR TRACK - S23TDL6KSA (602235) Diagram

#

Description
Price

-

SHOCK-R/T W/E 2" VEL HI/LO REB [INCL. 1-31]

7046015

$924.99

1

BUSHING, URETHANE

1801129

$19.99

2

SLEEVE, 1.202LX.702

1801097

$19.99

3

O-RING BODY LOOP

1800030

$2.02

4

ASM-PISTON, IFP 1.750

1801186

$64.99

5

ADJUSTER-HS-LS W/KNOB

1801059

$459.99

5

ADJUSTER-HS-LS W/KNOB

1801059

$459.99

6

BRIDGE, 1.75" ANO CLR

1801008

$314.99

6

BRIDGE, 1.75" ANO CLR

1801008

$314.99

7

12.835LBODY, 2.0 MID-MOUNT, NON-CO

-------

Unavailable

8

SEAL HEAD W/ICE SCRAPER,O-RING

1801206

$203.32

9

BODY-RESERVOIR 2.0" 3.75L

1800999

$119.99

10

RING-RETAINING 2.06OD

1801003

$20.22

11

END CAP, RESERVOIR, 2"

1801006

$114.99

12

O-RING, 2-324

1800184

$5.65

13

RETAINING RING WIRE 0.0625 X 1.750ID

1800795

$7.27

14

O-RING, 2-226 1600018

1800863

$4.79

15

NUT-FLEX-TOP LOCK 7/16

1801000

$7.99

16

PISTON ASSEMBLY

-------

Unavailable

17

WER STICKER

-------

Unavailable

18

SHAFT, .625 REBOUND, 8.93L

1800695

$164.99

19

SPACER-SHAFT

-------

Unavailable

20

STYLESHAFT LOOP, RT, REBOUND CAM

-------

Unavailable

21

RETAINING RING, INTERNAL, SPIRAL

-------

Unavailable

22

REBOUND CAM ADJUSTER KNOB

-------

Unavailable

23

REBOUND ROD, BALL

-------

Unavailable

24

HOUSING, CHECK BALL

1800528

$125.86

25

PISTON, REBOUND

1800526

$48.40

26

O-RING, 2-004

1800525

$4.84

27

CHECK BALL, .1405

1800570

$53.24

28

SCREW, CHECK BALL

1800804

$10.99

29

BALL, 3mm

1800683

$1.49

30

SPRING, CLICKER 38lbs

-------

Unavailable

31

WASHER-METAL SEALING

1801005

$13.75
