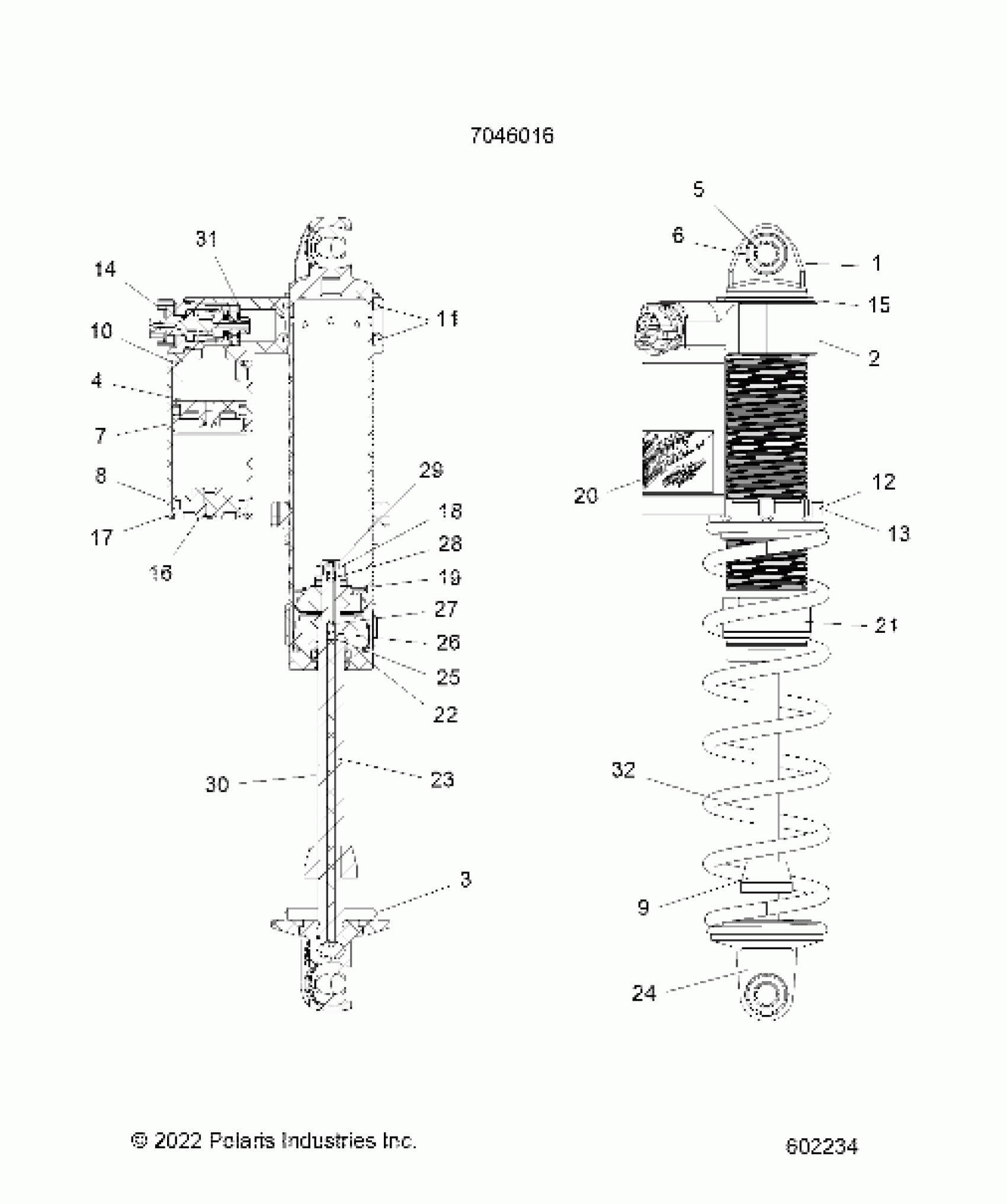

Polaris 600 INDY CROSSCOUNTRY 136 (R01) - S23TDL6KSA SUSPENSION, SHOCK, IFS - S23TDL6KSA (602234) Diagram

#

Description
Price

-

SHOCK-IFS W/E 2"VELHI/LOREB LH [INCL. 1-31] [LH ORIENTED]

7046016

$844.99

-

SHOCK-IFS W/E 2"VELHI/LOREB RH [INCL. 1-31] [RH ORIENTED]

7046017

$844.99

1

BODY, 2.0 MIDMOUNT

-------

Unavailable

2

BRIDGE, 2", ANO BLUE

1800998

$314.99

3

RETAINER-SPRING CLIP, ANO BLUE

1800925

$39.99

4

ASM-PISTON, IFP 1.750

1801186

$64.99

5

SPHERICAL BEARING 1.0OD X .50 ID W TEFLON

1800616

$63.99

6

SNAP RING, 1"ID

1800929

Unavailable

7

BODY-RESERVOIR 2.0" 3.75L

1800999

$119.99

8

O-RING, 2-324

1800184

$5.65

9

BUMPER, .62 IN SHAFT

1800462

$32.37

10

O-RING BODY LOOP

1800030

$2.02

11

O-RING, 2-226 1600018

1800863

$4.79

12

SPRING NUT- 2.0

1800936

$64.99

13

SCREW-SOC CAP M4X20

1801002

$3.99

14

ADJUSTER-HS-LS, V7

1801067

$459.99

15

RING-RETAINING 2.06OD

1801003

$20.22

16

END CAP, RESERVOIR, 2"

1801006

$114.99

17

RETAINING RING WIRE 0.0625 X 1.750ID

1800795

$7.27

18

NUT-FLEX-TOP LOCK 7/16

1801000

$7.99

19

PISTON ASSEMBLY

-------

Unavailable

20

WER STICKER

-------

Unavailable

21

WEAR BAND, SPRING

1800780

$64.99

22

ASM-SEAL HEAD 2.0

1801083

$141.65

23

IFS METERING ROD

-------

Unavailable

24

REBOUND SHAFT LOOP ASM.

-------

Unavailable

25

PISTON, REBOUND

1800526

$48.40

26

O-RING, 2-004

1800525

$4.84

27

HOUSING, CHECK BALL

1800528

$125.86

28

CHECK BALL, .1405

1800570

$53.24

29

SCREW, CHECK BALL

1800804

$10.99

30

SHAFT, .625 REBOUND, 8.93L

1800695

$164.99

31

WASHER-METAL SEALING

1801005

$13.75

32

SPRG-COMP.331X10.00 125#2 MBLK

7045096-458

$119.99
