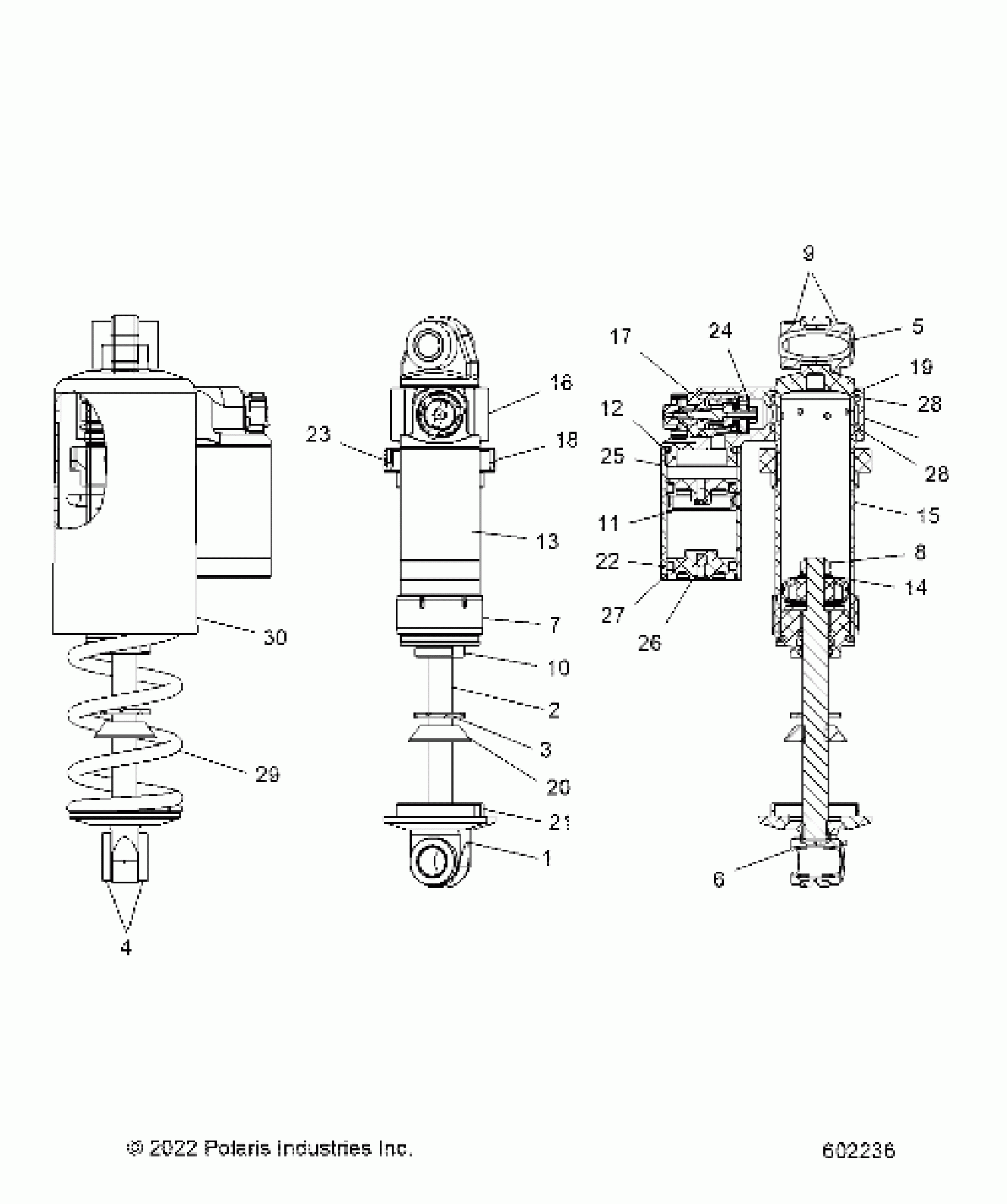

Polaris 600 INDY CROSSCOUNTRY 136 (R01) - S23TDL6KSA SUSPENSION, SHOCK, FRONT TRACK - S23TDL6KSA (602236) Diagram

#

Description
Price

-

SHOCK-F/T W/E 2" C/A VEL HI/LO [INCL. 1-27]

7046014

$844.99

1

LOOP-SHAFT, BLU ANO

1801088

$129.51

2

SHAFT, FT, SS

1801020

$109.99

2

SHAFT, FT, SS

1801020

$109.99

3

SCRAPER, ICE, SHAFT

1800776

$28.32

4

BUSHING

1800406

$5.65

5

SLEEVE, 1.685"L

1800039

$15.99

6

SLEEVE- 1.150L

1800405

$28.32

7

WEAR BAND, SPRING

1800780

$64.99

8

NUT-FLEX-TOP LOCK 7/16

1801000

$7.99

9

BUSHING, URETHANE

1800033

$19.99

10

ASM-SEAL HEAD 2.0

1801083

$141.65

11

ASM-PISTON, IFP 1.750

1801186

$64.99

12

O-RING BODY LOOP

1800030

$2.02

13

DECAL

-------

Unavailable

14

ASM-PISTON

-------

Unavailable

15

BODY-MIDMOUNT

-------

Unavailable

16

BRIDGE-2.0

-------

Unavailable

17

ADJUSTER-HS-LS W/KNOB

1801059

$459.99

18

SPRING NUT- 2.0

1800936

$64.99

19

RETAINING RING 2.0 EXT

1801075

$24.27

20

BUMP STOP .40L

1801096

$36.41

21

RETAINER-SPRING CLIP, ANO BLUE

1800925

$39.99

22

O-RING, 2-324

1800184

$5.65

23

SCREW-SOC CAP M4X20

1801002

$3.99

24

WASHER-METAL SEALING

1801005

$13.75

25

BODY, RESERVOIR, 3.5L, BLK

1801080

$154.90

26

END CAP, RESERVOIR, 2"

1801006

$114.99

27

RETAINING RING WIRE 0.0625 X 1.750ID

1800795

$7.27

28

O-RING, 2-226 1600018

1800863

$4.79

28

O-RING, 2-226 1600018

1800863

$4.79

29

SPRING-COMP 135/185#8 2" MBLK

7045856-458

$89.99

30

SHIELD-SHOCK, W/E 2"

5452873

$28.32
