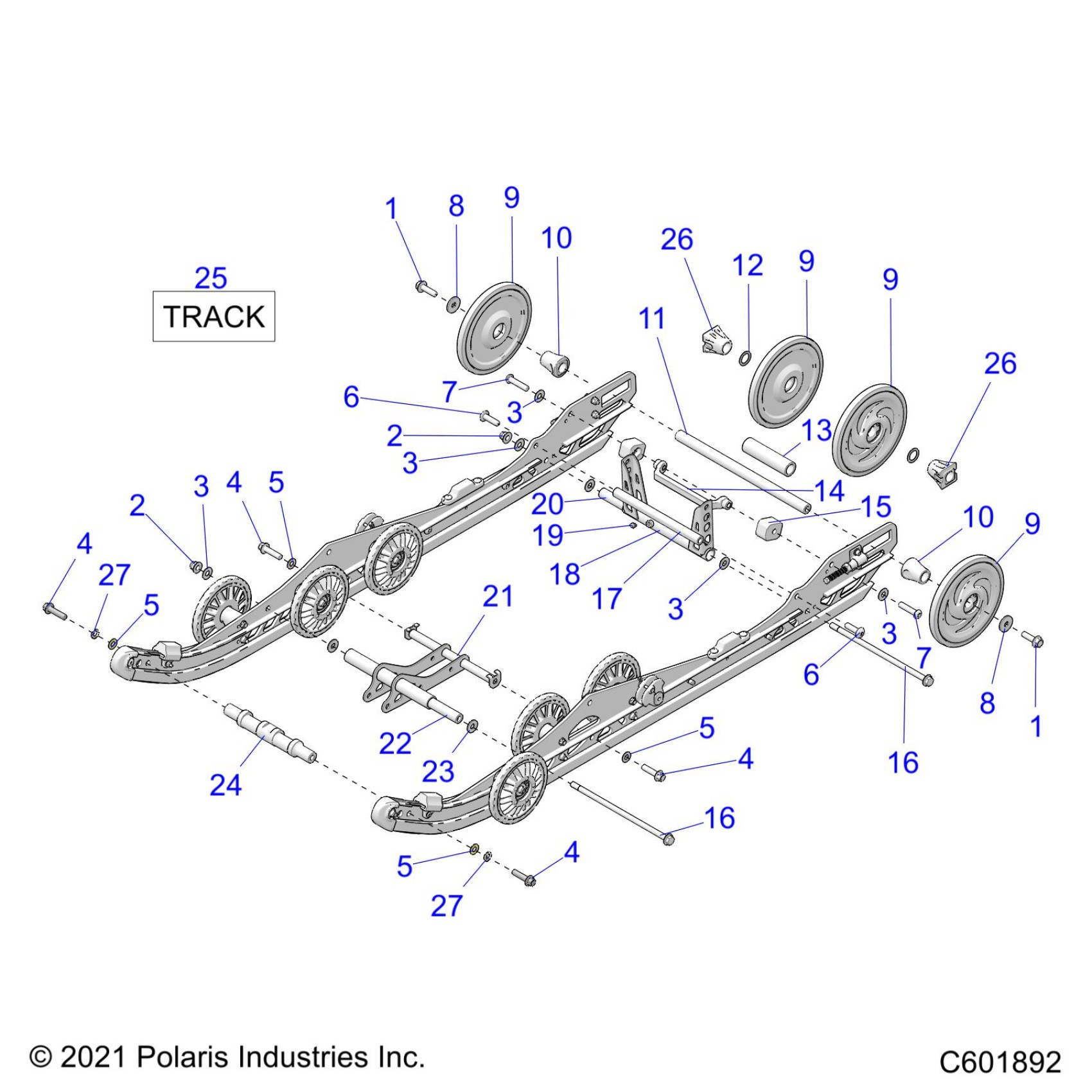

Polaris 600 INDY CROSSCOUNTRY 136 (R01) - S23TDL6KSA SUSPENSION, REAR - S23TDL6KSA (C601892) Diagram

#

Description
Price

1

SCR-M10X1.5X35 HXFL ZOD P30

7518957

$3.19

1

SCR-M10X1.5X35 HXFL ZOD P30

7518957

$3.19

2

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

2

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

3

WSHR-10.5X24X1.2446 ZOD HRD

7556545

$3.19

3

WSHR-10.5X24X1.2446 ZOD HRD

7556545

$3.19

3

WSHR-10.5X24X1.2446 ZOD HRD

7556545

$3.19

3

WSHR-10.5X24X1.2446 ZOD HRD

7556545

$3.19

3

WSHR-10.5X24X1.2446 ZOD HRD

7556545

$3.19

4

SCR-HXFL-M10X1.5X40 10.9ZODP80

7519216

$4.79

4

SCR-HXFL-M10X1.5X40 10.9ZODP80

7519216

$4.79

4

SCR-HXFL-M10X1.5X40 10.9ZODP80

7519216

$4.79

4

SCR-HXFL-M10X1.5X40 10.9ZODP80

7519216

$4.79

5

WASHER-3/8 FW SAE STL THRU-HRD

7556153

$1.99

5

WASHER-3/8 FW SAE STL THRU-HRD

7556153

$1.99

5

WASHER-3/8 FW SAE STL THRU-HRD

7556153

$1.99

5

WASHER-3/8 FW SAE STL THRU-HRD

7556153

$1.99

6

SCR-M10X1.5X35 TX/TRUSS ZODP30

7520369

$6.39

6

SCR-M10X1.5X35 TX/TRUSS ZODP30

7520369

$6.39

7

SCR-TXBH-M10X1.5X45 8.8ZOD P30

7520323

$5.59

7

SCR-TXBH-M10X1.5X45 8.8ZOD P30

7520323

$5.59

8

WASHER-SPRING.406X1.25X.125ZOD

7556490

$4.79

8

WASHER-SPRING.406X1.25X.125ZOD

7556490

$4.79

9

ASM-WHEEL,SCRLD,7.25,6004,BLK

1590388-070

$67.76

9

BEARING

3514384

$19.84

9

RING-RETAINING

7710444

$8.79

9

ASM-WHEEL,SCRLD,7.25,6004,BLK

1590388-070

$67.76

9

BEARING

3514384

$19.84

9

RING-RETAINING

7710444

$8.79

9

ASM-WHEEL,SCRLD,7.25,6004,BLK

1590388-070

$67.76

9

BEARING

3514384

$19.84

9

RING-RETAINING

7710444

$8.79

9

ASM-WHEEL,SCRLD,7.25,6004,BLK

1590388-070

$67.76

9

BEARING

3514384

$19.84

9

RING-RETAINING

7710444

$8.79

10

SPACER, IDLER, BILLET

5139176

$42.84

10

SPACER, IDLER, BILLET

5139176

$42.84

11

SHAFT-IDLER M10X1.5THDX336 LG

5142727

$114.99

12

BUSHING

7555918

$1.59

13

SPACER-IDLER, CENTER

5333283

$19.99

14

BRACE-COUPLING XCR

5143854

$59.99

15

BUMPER-PIVOT ALUM

5142728

$39.99

16

SCR-HXFL-M10X1.25X250 10.9 ZOD

7519327

$19.99

16

SCR-HXFL-M10X1.25X250 10.9 ZOD

7519327

$19.99

17

SHAFT-CROSS MACH

5139172

$29.03

18

WELD-REAR PIVOT ARM HD ECOAT

1544984-329

$130.70

19

FITTING-LUBRICATION 1/4-28

7080424

$4.79

20

SHAFT, CROSS

5137418

$32.37

21

H-BRACKET ECOAT

1544014-329

$106.49

22

SHAFT-H-BRKT CC AL

5140492

$43.56

23

WSHR-M10.5X25X2.4 ZPC

7556559

$3.19

24

SFT-M10X1.5IDX17.47ODX220.1 LG

5143211

$84.99

25

TRACK,1.352"x136 INCH COBRA

5413655

$846.99

25

CLIP-TRACK,LNG GUIDE

5251274

Unavailable

25

CLIP-TRACK, FLAT

5251273

Unavailable

26

SPACER-IDLER

5432535

$11.99

26

SPACER-IDLER

5432535

$11.99

27

WSHR-M10,SPRING LOC ZPC

7556558

$2.39

27

WSHR-M10,SPRING LOC ZPC

7556558

$2.39
