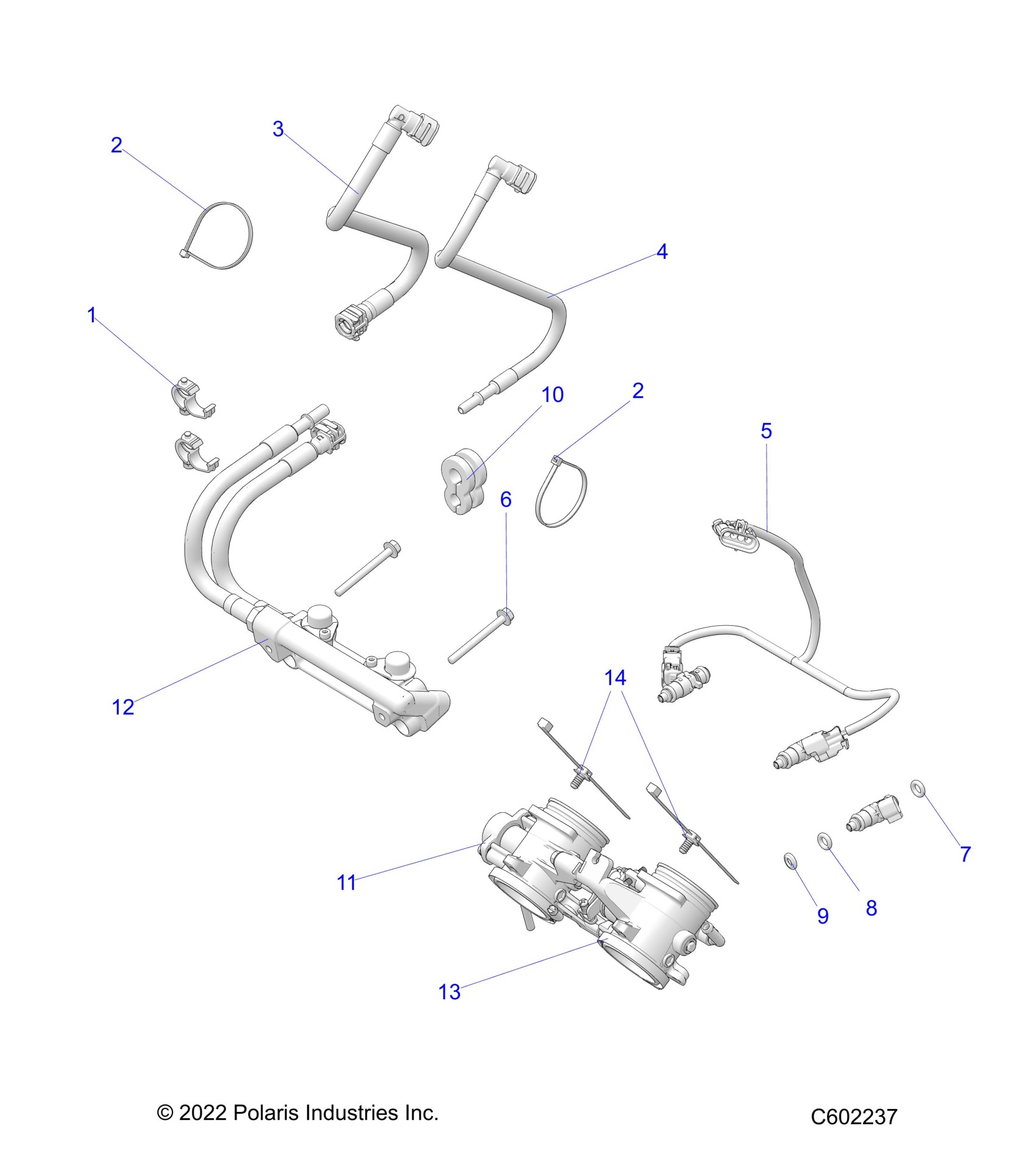

Polaris 600 INDY CROSSCOUNTRY 136 (R01) - S23TDL6KSA FUEL SYSTEM, RAIL, LINES and THROTTLE BODY - S23TDL6KSA (C601861) Diagram

#

Description

Price

1

CLIP-HARNESS 3-13MM INTERLCK

7081871

$3.99

2

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

2

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

3

ASM-FUEL LINE RETURN PFA

2522492

$76.89

4

ASM-FUEL LINE SUPPLY PFA

2522491

$76.89

5

HARNESS, INJECTOR WITH LEAD [INC. INJECTORS]

4014242

Unavailable

6

SCR-HXFL-M6X1.0X60 10.9 ZY3

7519244

$1.59

7

O-RING-BOSCH,EV-14,UPPER, BLUE

1500198

$11.99

8

O-RING, BOSCH, E10076

5412891

$1.49

9

BUSHING-RUBBER, INJ ELASTOMER

5436287

$3.19

10

HOSE-SUPPORT

5418043

$5.65

11

SENSOR, THROTTLE POSITION

-------

Unavailable

12

ASM., FUEL RAIL, AS

2522185

$524.99

13

ASM., THROTTLE BODY, 46MM

1204920

$579.99

14

CLIP FIR-TREE,DIA6-33MM

7081496

$4.79
