- 600 INDY CROSSCNTRY 136 (R01) - S22TDL6KSA
SUSPENSION, RAIL BEAM LH/RH - S22TDL6KSA (C601847)

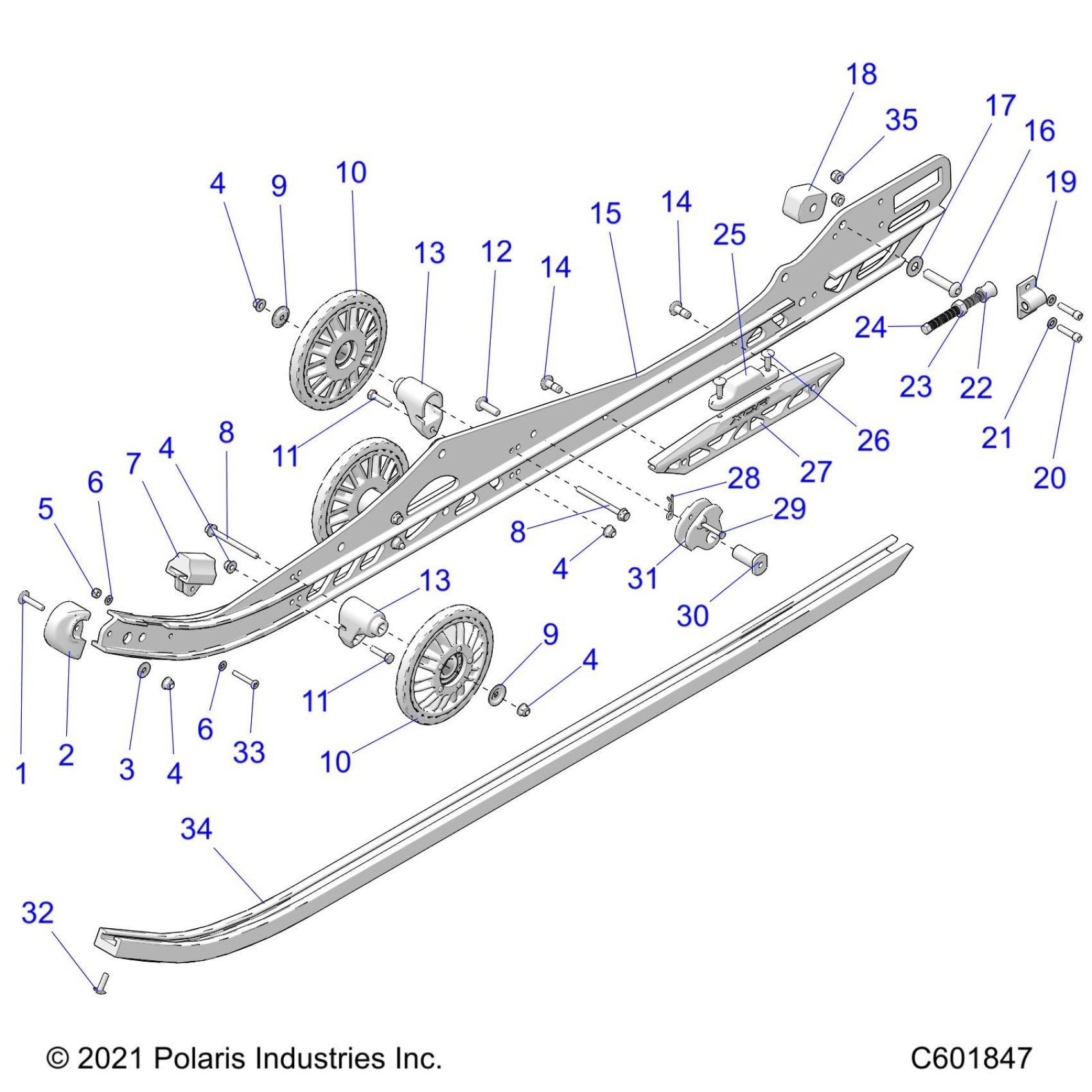

Polaris 600 INDY CROSSCNTRY 136 (R01) - S22TDL6KSA SUSPENSION, RAIL BEAM LH/RH - S22TDL6KSA (C601847) Diagram
#
1
SCR-TXTH-M6X1.0X30,8.8,ZPB
7520133
$3.19
1
SCR-TXTH-M6X1.0X30,8.8,ZPB
7520133
$3.19
2
CAP, RAIL TIP
5452441
$16.99
3
WSHR-6.4X18.0X1.6 ZPB
7556064
$5.22
4
NUT-M6X1.0, FLG-NYLOC-OLIVE D
7547339
$1.49
4
NUT-M6X1.0, FLG-NYLOC-OLIVE D
7547339
$1.49
4
NUT-M6X1.0, FLG-NYLOC-OLIVE D
7547339
$1.49
4
NUT-M6X1.0, FLG-NYLOC-OLIVE D
7547339
$1.49
4
NUT-M6X1.0, FLG-NYLOC-OLIVE D
7547339
$1.49
5
NUT-NYLOC 10-24 Y
7541925
$1.49
6
Washer, Flat
7555783
$3.99
6
Washer, Flat
7555783
$3.99
7
BUMPER, JOUNCE, FRONT
5522253
$8.89
8
SCR-HXFL- M6X1.0X70 10.9 ZOD
7519908
$4.79
8
SCR-HXFL- M6X1.0X70 10.9 ZOD
7519908
$4.79
9
WSHR-M6 OFFSET 2.01 ZOD
7556799
$3.19
9
WSHR-M6 OFFSET 2.01 ZOD
7556799
$3.19
10
ASM-WHEEL SPOKED 5.62
1590632
$38.39
10
BEARING [1 PER WHEEL]
3515142
$19.99
10
RING-RETAINING [1 PER WHEEL]
7710444
$8.79
10
ASM-WHEEL SPOKED 5.62
1590632
$38.39
10
BEARING [1 PER WHEEL]
3515142
$19.99
10
RING-RETAINING [1 PER WHEEL]
7710444
$8.79
11
SCR-HH-M6X1.0X25 8.8 ZPB
7517510
$4.79
11
SCR-HH-M6X1.0X25 8.8 ZPB
7517510
$4.79
12
SCR-M8X1.25X25 8.8TXTR ZOD P80
7518906
$3.19
13
BLOCK-WHEEL MOUNT
5633278
$29.99
13
BLOCK-WHEEL MOUNT
5633278
$29.99
14
SCR-TXTH-M8X1.25X20 8.8 ZB3 P3
7519997
$3.99
14
SCR-TXTH-M8X1.25X20 8.8 ZB3 P3
7519997
$3.99
15
ASM-RAIL 136 CC SVC LH BLK
1544788-067
$654.99
15
ASM-RAIL 136 CC SVC RH BLK
1544789-067
$654.99
16
SCR-TXBH-M10X1.5X45 8.8ZOD P30
7520323
$5.59
17
WSHR-10.5X24X1.2446 ZOD HRD
7556545
$3.19
18
BUMPER-PIVOT ALUM
5142728
$39.99
19
BLOCK-IDLER BOLT ADJ METRIC
5136570
$34.99
20
SCR-1/4-20X1 SOC CP-Y
7515102
$4.79
21
WASHER-.5X.262X.06(16 GA)-Y
7555827
$3.99
22
SPACER-IDLER ADJ ALUM
5141837
$8.99
23
NUT-HEX-M10X1.5 8 ZOD
7547707
$4.99
24
SCR-HX-M10X1.5X100,8.8,ZOD
7520083
$12.79
25
BUMPER-FRT TORQ ARM, XTRA 12
5432166
$5.59
26
SCR-1/4-20X3/4,TR/TX/TAP-Y
7515199
$1.49
27
PLATE-RAIL REINF CC BLK ANDZD
5144096
$99.99
28
PIN-HITCH, 3/32-Y
7661644
$2.39
29
PIN-CLEVIS 3/16X1 1/4
7661123
$3.99
30
SHAFT-SPRING ROLLER
5136687
$10.51
31
GUIDE-SPRING SQUARE
5434334
$28.32
32
SCR-M6X1.0X20 TR/TX/TAP ZOD
7518976
$3.19
33
SCR-10-24X1.25TFM PN TRX TRI-Y
7512025
$4.79
34
K-HI FAX VESPEL 129-146 INCL. 2 SLIDERS
2889115
$279.99
35
NUT-1/4-20 NYLOC FLANGED-Y
7542153
$1.59
