Description

Price

1

GRIP, HEATER, LO/MED/HI, ALUM. INS, LH

2413073

$64.99

1

GRIP, HEATER, LO/MED/HI, ALUM., INS, RH

2413074

$59.99

2

SCR-#8X3/4-HI/LO-PN-T20,TRX-M

7518227

$3.99

3

COVER, CONTROL, LH

5450542

$13.75

4

ASM., LH CONTROL

2010409

$199.99

5

REGULATOR, DC LED

4015642

$329.99

6

MOUNT-REGULATOR

5272024

$40.46

7

CLIP-PLASTIC DART, NYLON

7670088

$1.59

8

SCR-HXFL-M6X1.0X20 8.8 RIE

7519121

$3.99

8

SENSOR, WATER TEMP

4012115

$64.99

9

NUT-M6X1.0, FLG-NYLOC-OLIVE D

7547339

$1.49

9

WASHER, COPPER

7556357

$3.99

10

SENSOR, WATER TEMP

4012115

$64.99

11

WASHER-18X12X2.5MM-COPPER

7556357

$3.99

12

SWITCH-THROTTLE

4019110

$99.99

13

ASM., SWITCH., AUX. SHUTOFF [INCL. SWITCH AND UPPER MOUNT]

2010426

$119.99

13

SWITCH., AUX. SHUTOFF [SWITCH ONLY]

4015321

$94.99

14

MNT-AUX SHUT-OFF LOWER

5439575

$24.27

15

SCR-#10X1/2-HI/LO-TRX-Y

7512076

$1.49

16

SENSOR, DETONATION

2410369

$76.89

17

SCR-M8X1.25X30,HX/FL-YD

7517262

$5.59

18

ECU, DC/SDI LEAS, 32MHZ2T

4014920

$834.99

19

SENSOR-TMAP DSS3-TF

2411528

$93.08

20

SCR-#14X1.0 LG,HI/LO/TAPER-M

7512098

$1.59

21

SENSOR, EGT

4013133

$264.99

22

SENSOR, SPEED PICKUP, LG

2412968

$116.17

23

SCR-HXFL-M6X1.0X16 8.8 ZYL NYL

7519236

$3.19

24

SWITCH, KEY, 3 POSITION, MT SLV

4012165

$104.24

24

KEY SWITCH KEY COVER

5433534

$12.35

24

NUT-IGNITION SWITCH,HOBBS

5433733

$23.99

25

WASHER, NYLON, BLK

7556327

$3.19

26

BLANK, KEY, SERIES 2000, 2100, 6700, 6800 NOTE: YOUR KEY CAN BE DUPLICATED ONLY BY OBTAINING A KEY BLANK FROM POLARIS AND HAVING IT CUT BY MATING IT WITH YOUR EXISTING KEY.

4010278

Unavailable

26

Blank, Key, Series 2200, 2300, 2700, 2800. NOTE: YOUR KEY CAN BE DUPLICATED ONLY BY OBTAINING A KEY BLANK FROM POLARIS AND HAVING IT CUT BY MATING IT WITH YOUR EXISTING KEY.

4010321

Unavailable

27

LANYARD-TETHER

4019319

$44.99

28

NUT-TETHER

5457298

$4.84

29

BASE-TETHER

4019318

$114.99

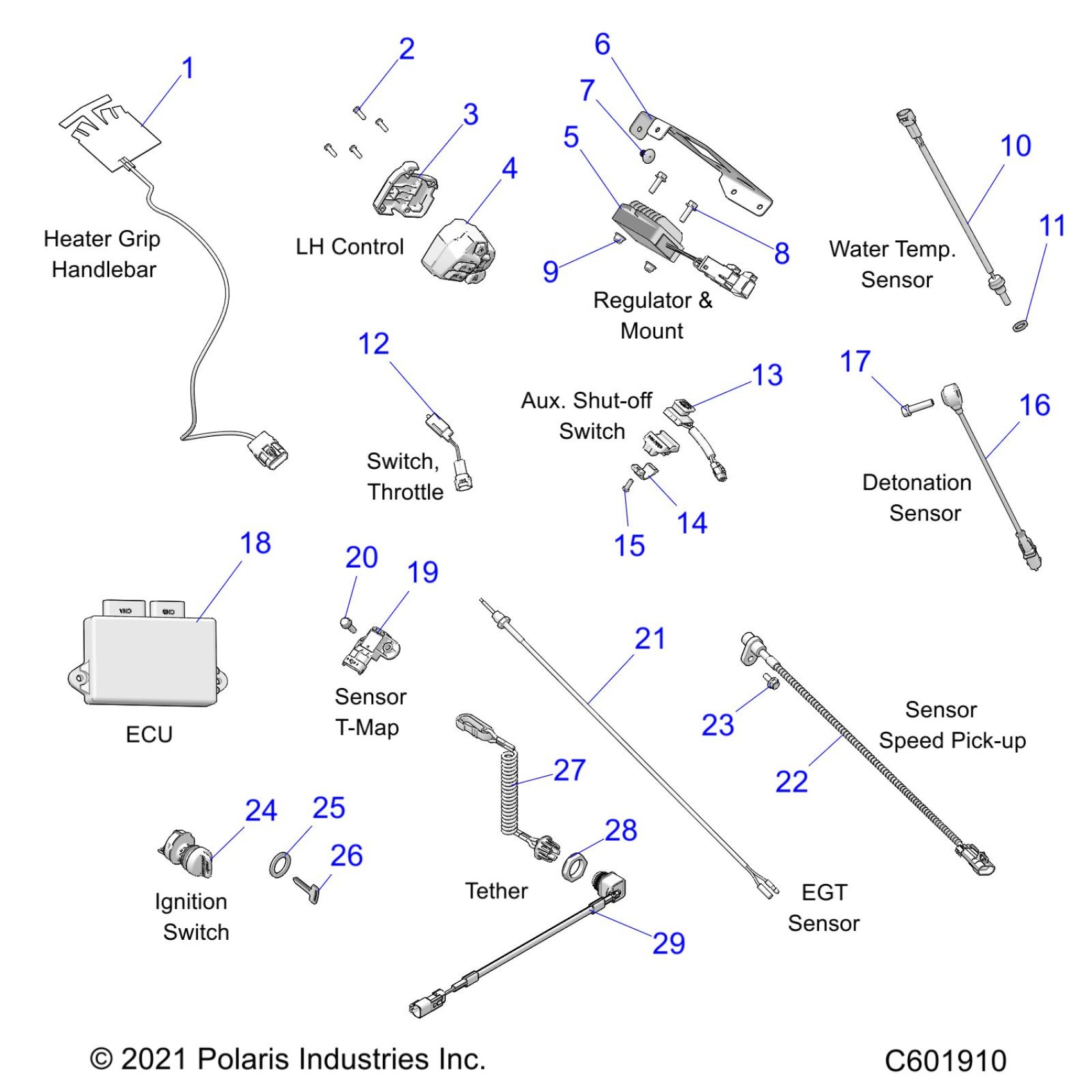

Polaris 600 INDY CROSSCNTRY 136 (R01) - S22TDL6KSA ELECTRICAL, SWITCHES, SENSORS and COMPONENTS - S22TDL6KSA ALL OPTIONS(601910) Diagram

GRIP, HEATER, LO/MED/HI, ALUM. INS, LH

GRIP, HEATER, LO/MED/HI, ALUM., INS, RH

SCR-#8X3/4-HI/LO-PN-T20,TRX-M

COVER, CONTROL, LH

ASM., LH CONTROL

REGULATOR, DC LED

MOUNT-REGULATOR

CLIP-PLASTIC DART, NYLON

SCR-HXFL-M6X1.0X20 8.8 RIE

SENSOR, WATER TEMP

NUT-M6X1.0, FLG-NYLOC-OLIVE D

WASHER, COPPER

SENSOR, WATER TEMP

WASHER-18X12X2.5MM-COPPER

SWITCH-THROTTLE

ASM., SWITCH., AUX. SHUTOFF [INCL. SWITCH AND UPPER MOUNT]

SWITCH., AUX. SHUTOFF [SWITCH ONLY]

MNT-AUX SHUT-OFF LOWER

SCR-#10X1/2-HI/LO-TRX-Y

SENSOR, DETONATION

SCR-M8X1.25X30,HX/FL-YD

ECU, DC/SDI LEAS, 32MHZ2T

SENSOR-TMAP DSS3-TF

SCR-#14X1.0 LG,HI/LO/TAPER-M

SENSOR, EGT

SENSOR, SPEED PICKUP, LG

SCR-HXFL-M6X1.0X16 8.8 ZYL NYL

SWITCH, KEY, 3 POSITION, MT SLV

KEY SWITCH KEY COVER

NUT-IGNITION SWITCH,HOBBS

WASHER, NYLON, BLK

BLANK, KEY, SERIES 2000, 2100, 6700, 6800 NOTE: YOUR KEY CAN BE DUPLICATED ONLY BY OBTAINING A KEY BLANK FROM POLARIS AND HAVING IT CUT BY MATING IT WITH YOUR EXISTING KEY.

Blank, Key, Series 2200, 2300, 2700, 2800. NOTE: YOUR KEY CAN BE DUPLICATED ONLY BY OBTAINING A KEY BLANK FROM POLARIS AND HAVING IT CUT BY MATING IT WITH YOUR EXISTING KEY.

LANYARD-TETHER

NUT-TETHER

BASE-TETHER
