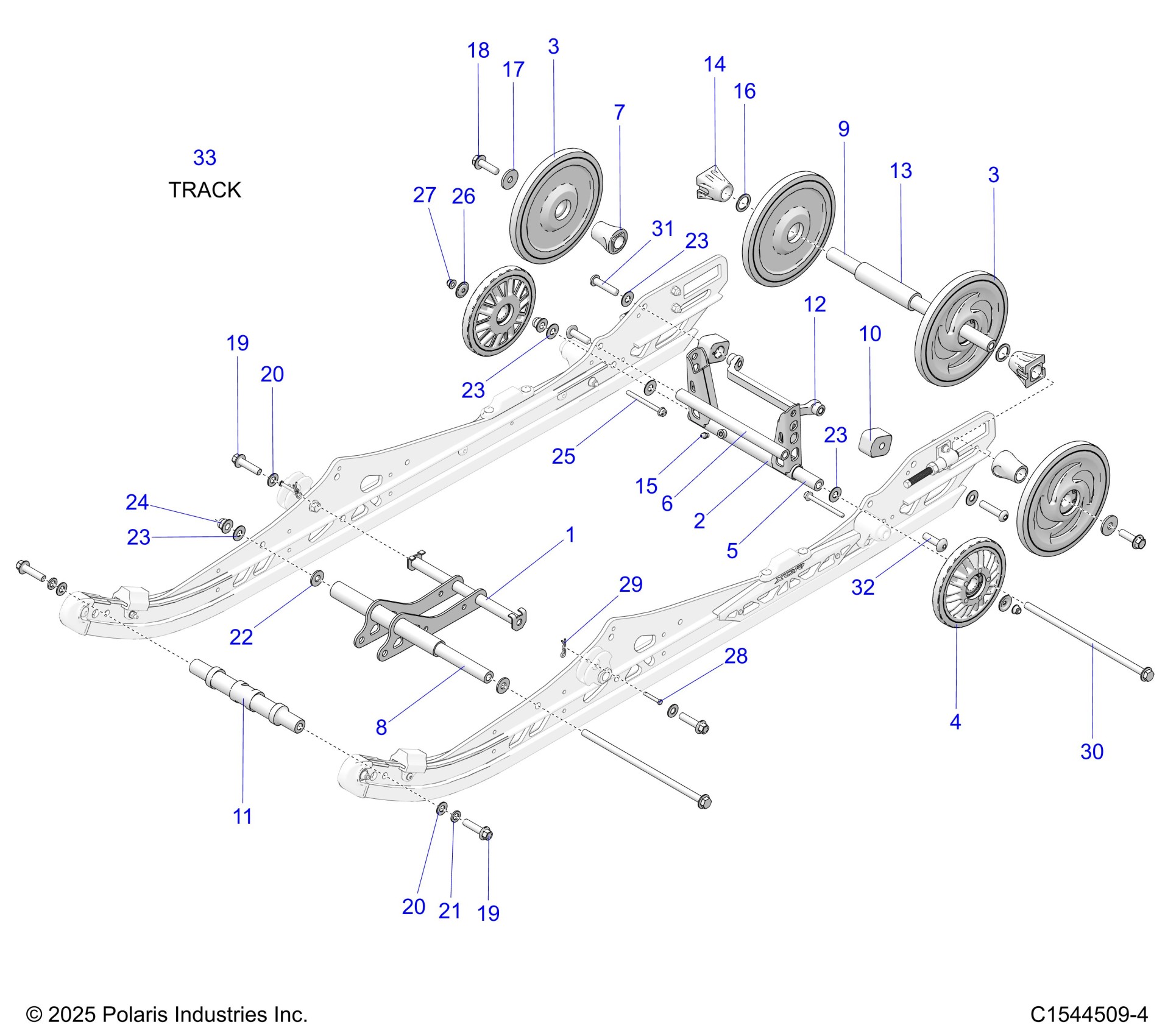

Polaris 600 INDY CROSS COUNTRY 136 (R01) - S26TDL6LSA SUSPENSION, REAR - S26TDL6LSA (C1544509-4) Diagram

#

Description
Price

1

H-BRACKET ECOAT

1544014-329

$106.49

2

WELD-REAR PIVOT ARM HD ECOAT

1544984-329

$130.70

3

ASM-WHEEL,SCRLD,7.25,6004,BLK

1590388-070

$67.76

3

BEARING-.7874X1.6535X.4724,NTN

3514384

$19.84

3

RING-RETAINING

7710444

$8.79

3

ASM-WHEEL,SCRLD,7.25,6004,BLK

1590388-070

$67.76

3

BEARING-.7874X1.6535X.4724,NTN

3514384

$19.84

3

RING-RETAINING

7710444

$8.79

4

ASM-WHEEL SPOKED 5.62

1590632

$38.39

4

BEARING-.7874X1.6535X.4724 NSK

3515142

$19.99

4

RING-RETAINING

7710444

$8.79

5

SHAFT-CROSS, RMK

5137418

$32.37

6

SHAFT-CROSS MACH

5139172

$29.03

7

SPACER, IDLER, BILLET

5139176

$42.84

8

SHAFT-H BRKT, CC AL

5140492

$43.56

9

SHAFT-IDLER M10X1.5THDX336 LG

5142727

$114.99

10

BUMPER-PIVOT ALUM

5142728

$39.99

11

SFT-M10X1.5IDX17.47ODX220.1 LG

5143211

$84.99

12

BRACE-COUPLING XCR

5143854

$59.99

13

SPACER-IDLER, CENTER

5333283

$19.99

14

SPACER-IDLER

5432535

$11.99

15

FITTING-LUBRICATION 1/4-28

7080424

$4.79

16

BUSHING-MACH,.800X1.125X.06-Y

7555918

$1.59

17

WASHER-SPRING.406X1.25X.125ZOD

7556490

$4.79

18

SCR-M10X1.5X35 HXFL ZOD P30

7518957

$3.19

19

SCR-HXFL-M10X1.5X40 10.9ZODP80

7519216

$4.79

19

SCR-HXFL-M10X1.5X40 10.9ZODP80

7519216

$4.79

20

WASHER-3/8 FW SAE STL THRU-HRD

7556153

$1.99

20

WASHER-3/8 FW SAE STL THRU-HRD

7556153

$1.99

21

WSHR-M10,SPRING LOC ZPC

7556558

$2.39

22

WSHR-M10.5X25X2.4 ZPC

7556559

$3.19

23

WSHR-10.5X24X1.2446 ZOD HRD

7556545

$3.19

23

WSHR-10.5X24X1.2446 ZOD HRD

7556545

$3.19

23

WSHR-10.5X24X1.2446 ZOD HRD

7556545

$3.19

23

WSHR-10.5X24X1.2446 ZOD HRD

7556545

$3.19

24

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

25

SCR-HXFL-M6X1.0X70 10.9 ZFB

7521331-70

$1.49

26

WSHR-M6 OFFSET 2.01 ZOD

7556799

$3.19

27

NUT-M6X1.0, FLG-NYLOC-OLIVE D

7547339

$1.49

28

PIN-CLEVIS 3/16X1 1/4

7661123

$3.99

29

PIN-HITCH, 3/32-Y

7661644

$2.39

30

SCR-HXFL-M10X1.25X250 10.9 ZOD

7519327

$19.99

31

SCR-TXBH-M10X1.5X45 8.8ZOD P30

7520323

$5.59

32

SCR-M10X1.5X35 TX/TRUSS ZODP30

7520369

$6.39

33

TRACK,1.352"x136 INCH COBRA

5413655

$846.99

33

CLIP-TRACK,LNG GUIDE

5251274

Unavailable

33

CLIP-TRACK, FLAT

5251273

Unavailable
