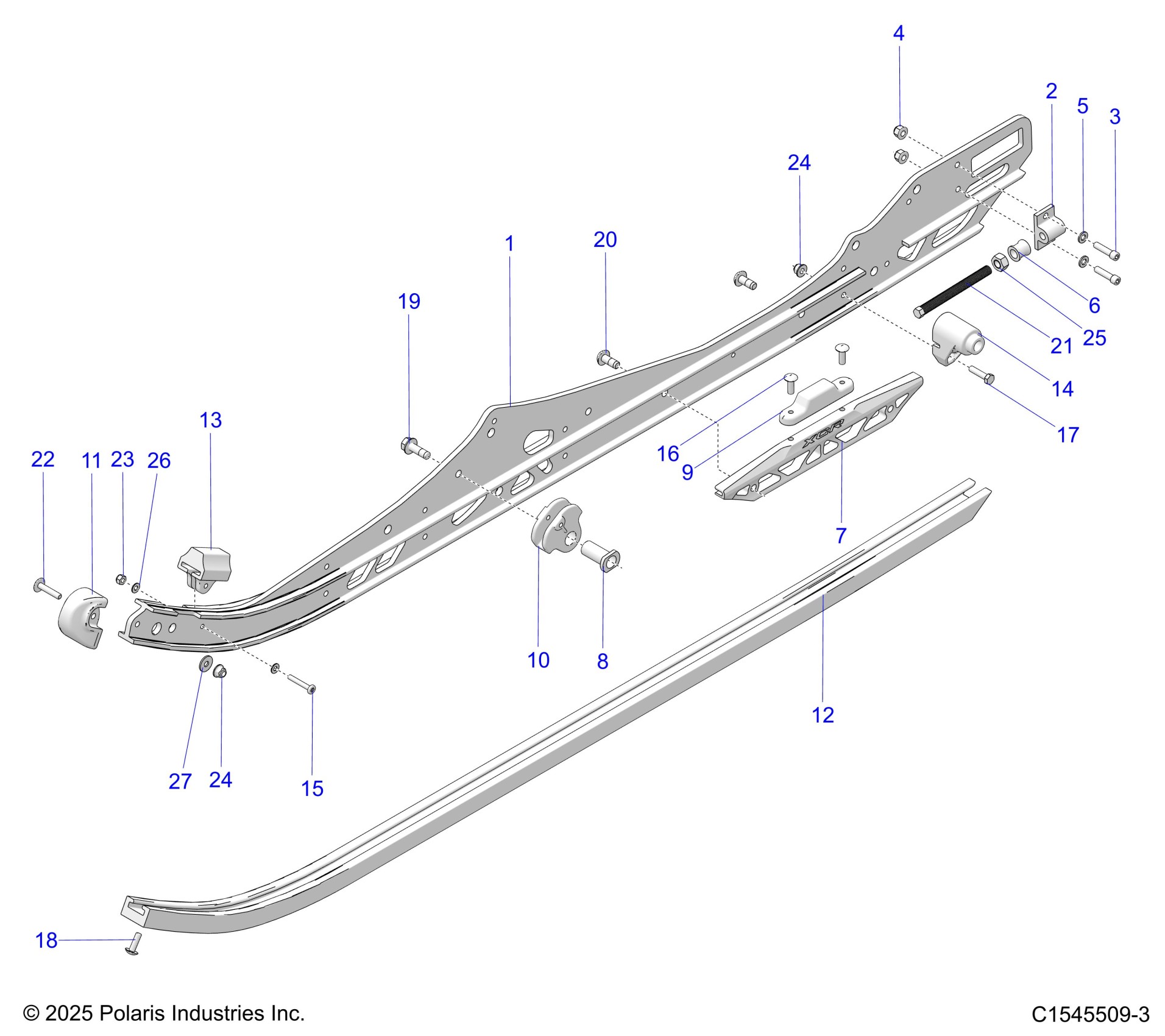

Polaris 600 INDY CROSS COUNTRY 136 (R01) - S26TDL6LSA SUSPENSION, RAIL BEAM LH/RH - S26TDL6LSA (C1545509-3) Diagram

ASM-RAIL 136 CC LH BLK [INCLUDES 2-5]

1545505-067

Unavailable

ASM-RAIL 136 CC RH BLK [INCLUDES 2-5]

1545506-067

Unavailable

BLOCK-IDLER BOLT ADJ METRIC

5136570

$34.99

SCR-1/4-20X1 SOC CP-Y

7515102

$4.79

NUT-1/4-20 NYLOC FLANGED-Y

7542153

$1.59

WASHER-.5X.262X.06(16 GA)-Y

7555827

$3.99

SPACER-IDLER ADJ ALUM

5141837

$8.99

PLATE-RAIL REINF CC BLK ANDZD

5144096

$99.99

SHAFT-SPRING ROLLER

5144612

$10.51

BUMPER-FRT TORQ ARM, XTRA 12

5432166

$5.59

GUIDE, SPRING, SQUARE

5434334

$28.32

CAP, RAIL TIP

5452441

$16.99

SLIDER-VESPEL 136

5458667

$134.99

BUMPER, JOUNCE, FRONT

5522253

$8.89

BLOCK-WHEEL MOUNT

5633278

$29.99

SCR-10-24X1.25TFM PN TRX TRI-Y

7512025

$4.79

SCR-1/4-20X3/4,TR/TX/TAP-Y

7515199

$1.49

SCREW-HH-M6X1.0X25 8.8 ZPB

7517510

$4.79

SCR-M6X1.0X20 TR/TX/TAP ZOD

7518976

$3.19

SCR-HXFL-M8X1.25X25 10.9 ZOD P

7519739

$3.03

SCR-TXTH-M8X1.25X20 8.8 ZB3 P3

7519997

$3.99

SCR-HX-M10X1.5X100,8.8,ZOD

7520083

$12.79

SCR-TXTH-M6X1.0X30,8.8,ZPB

7520133

$3.19

NUT-NYLOC 10-24 Y

7541925

$1.49

NUT-M6X1.0, FLG-NYLOC-OLIVE D

7547339

$1.49

NUT-M6X1.0, FLG-NYLOC-OLIVE D

7547339

$1.49

NUT-HEX-M10X1.5 8 ZOD

7547707

$4.99

WSHR-FL #10 .203X.438X.032-Y

7555783

$3.99

WSHR-6.4X18.0X1.6 ZPB

7556064

$5.22
