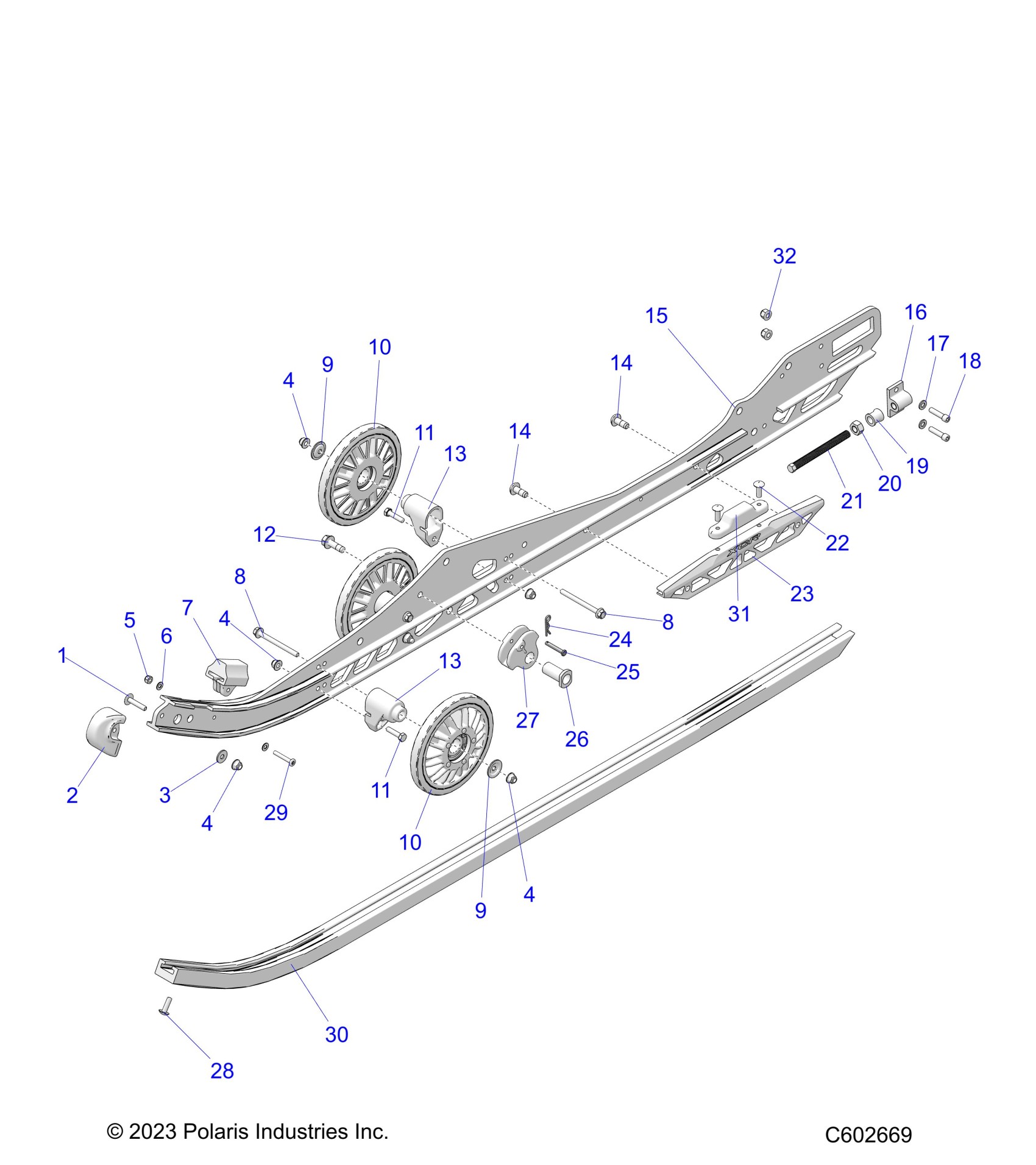

Polaris 600 INDY CROSS COUNTRY 136 (R01) - S25TDL6LSA SUSPENSION, RAIL BEAM LH/RH - S25TDL6LSA (C602669) Diagram

#

Description
Price

1

SCR-TXTH-M6X1.0X30,8.8,ZPB

7520133

$3.19

2

CAP, RAIL TIP

5452441

$16.99

3

WSHR-6.4X18.0X1.6 ZPB

7556064

$5.22

4

NUT-M6X1.0, FLG-NYLOC-OLIVE D

7547339

$1.49

4

NUT-M6X1.0, FLG-NYLOC-OLIVE D

7547339

$1.49

4

NUT-M6X1.0, FLG-NYLOC-OLIVE D

7547339

$1.49

4

NUT-M6X1.0, FLG-NYLOC-OLIVE D

7547339

$1.49

5

NUT-NYLOC 10-24 Y

7541925

$1.49

6

Washer, Flat

7555783

$3.99

7

BUMPER, JOUNCE, FRONT

5522253

$8.89

8

SCR-HXFL- M6X1.0X70 10.9 ZOD

7519908

$4.79

8

SCR-HXFL- M6X1.0X70 10.9 ZOD

7519908

$4.79

9

WSHR-M6 OFFSET 2.01 ZOD

7556799

$3.19

9

WSHR-M6 OFFSET 2.01 ZOD

7556799

$3.19

10

ASM-WHEEL SPOKED 5.62

1590632

$38.39

10

BEARING [1 PER WHEEL]

3515142

$19.99

10

RING-RETAINING [1 PER WHEEL]

7710444

$8.79

10

ASM-WHEEL SPOKED 5.62

1590632

$38.39

10

BEARING [1 PER WHEEL]

3515142

$19.99

10

RING-RETAINING [1 PER WHEEL]

7710444

$8.79

11

SCR-HH-M6X1.0X25 8.8 ZPB

7517510

$4.79

11

SCR-HH-M6X1.0X25 8.8 ZPB

7517510

$4.79

12

SCR-M8X1.25X25 8.8TXTR ZOD P80

7518906

$3.19

13

BLOCK-WHEEL MOUNT

5633278

$29.99

13

BLOCK-WHEEL MOUNT

5633278

$29.99

14

SCR-TXTH-M8X1.25X20 8.8 ZB3 P3

7519997

$3.99

14

SCR-TXTH-M8X1.25X20 8.8 ZB3 P3

7519997

$3.99

15

ASM-RAIL 136 CC SVC LH BLK [INCL. 16-18,32]

1545193-067

$654.99

15

ASM-RAIL 136 CC SVC RH BLK [INCL. 16-18,32]

1545194-067

$654.99

16

BLOCK-IDLER BOLT ADJ METRIC

5136570

$34.99

17

WASHER-.5X.262X.06(16 GA)-Y

7555827

$3.99

18

SCR-1/4-20X1 SOC CP-Y

7515102

$4.79

19

SPACER-IDLER ADJ ALUM

5141837

$8.99

20

NUT-HEX-M10X1.5 8 ZOD

7547707

$4.99

21

SCR-HX-M10X1.5X100,8.8,ZOD

7520083

$12.79

22

SCR-1/4-20X3/4,TR/TX/TAP-Y

7515199

$1.49

23

PLATE-RAIL REINF CC BLK ANDZD

5144096

$99.99

24

PIN-HITCH, 3/32-Y

7661644

$2.39

25

PIN-CLEVIS 3/16X1 1/4

7661123

$3.99

26

SHAFT-SPRING ROLLER

5144612

$10.51

27

GUIDE-SPRING SQUARE

5434334

$28.32

28

SCR-M6X1.0X20 TR/TX/TAP ZOD

7518976

$3.19

29

SCR-10-24X1.25TFM PN TRX TRI-Y

7512025

$4.79

30

SLIDER-VESPEL 136 1 PER RAIL BEAM

5458667

$134.99

31

BUMPER-FRT TORQ ARM, XTRA 12

5432166

$5.59

32

NUT-1/4-20 NYLOC FLANGED-Y

7542153

$1.59
