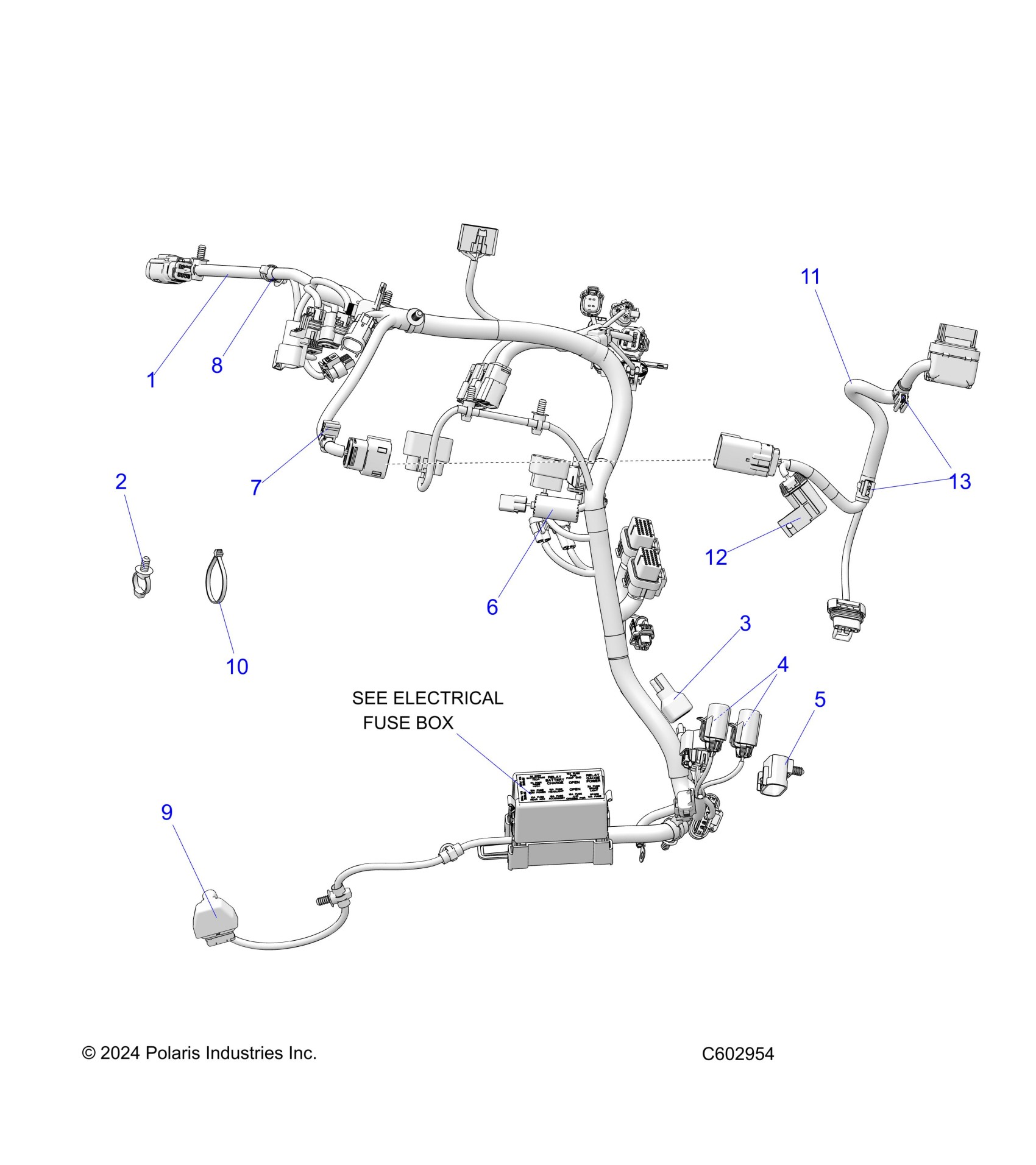

Polaris 600 INDY CROSS COUNTRY 136 (R01) - S25TDL6LSA ELECTRICAL, WIRE HARNESS, MAIN AND HOOD - S25TDL6LSA (C602954) Diagram

#

Description

Price

1

HARNESS-MAIN STD 650/850/900 [INCL. 1-9]

2417719

$939.99

2

CLIP FIR-TREE,DIA6-33MM

7081496

$4.79

3

CAPACITOR-FILTER

4011441

$121.02

4

COVER-DIAGNOSTIC,W/CLIP

4012170

$8.08

5

COVER-FUSEHOLDER

4012260

$9.70

6

CLAMP-HARNESS FERRITE

4018398

$12.99

7

CLIP-EDGE,1-3MM THICKNESS

7082428

$4.79

8

CABLE-TIE,DIA2.5-34MM,FIR-TREE

7082003

$3.19

9

BOOT-EV ACTUATOR

5814995

$1.59

10

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

10

CABLE-TIE,25-76MM,WEATH.-RES.

7080492

$2.41

11

HARNESS-HOOD 650/850/900 B1 [INCL. 12,13]

2417745

$135.54

12

COVER-FUSEHOLDER

4012260

$9.70

13

CLIP- EDGE, 1-3MM THICKNESS

7082427

$5.59
