Partiron

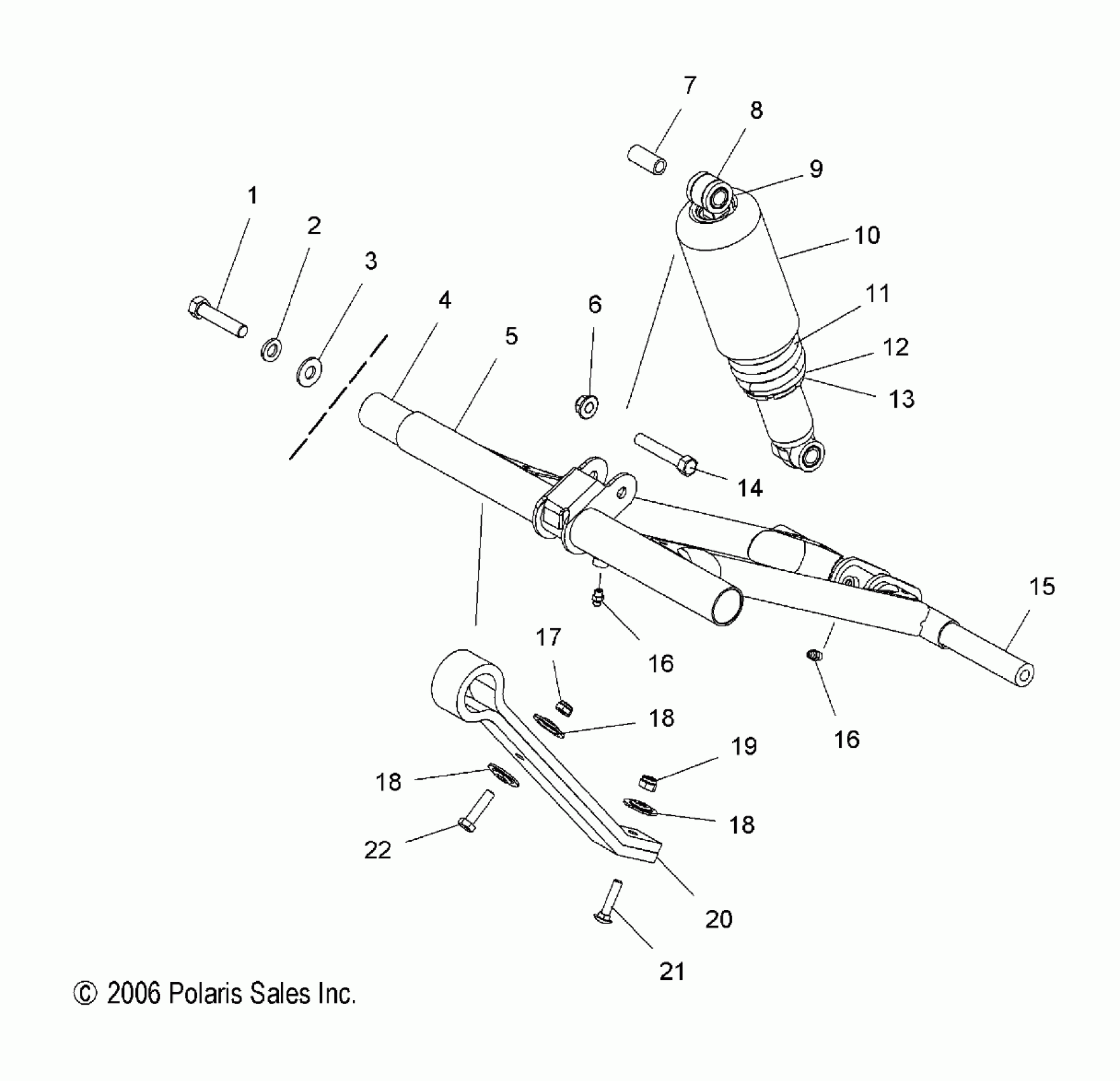

Polaris 600 HO IQ/LX CLEANFIRE - S07PP6HS/HSA/HSB/PD6HS/HE TORQUE ARM, FRONT (M-10)(IQ LX) - S07PD6HS/HE (49SNOWFTAFSTIQ) Diagram

#

Description
Price

1

SCREW

7518261

$3.99

2

WASHER-LOCK, 7/16-B

7552614

$1.59

3

Washer, Flat

7555984

$2.39

4

Shaft, Upper

5135227

Unavailable

5

Arm, Torque, Front, M-10, Black

1542123-067

Unavailable

6

NUT-3/8-24 FLG LOC

7547263

$3.19

7

SLEEVE

5333905

$15.99

8

Shock ,Front Track

7043207

Unavailable

9

Retainer, Spring, Slotted

5630580

Unavailable

10

SHIELD, SPRING

5433503

$24.27

11

Spring, Compression, Black

7041672-067

Unavailable

12

RETAINER, SPRING

5245067

$23.99

13

RETAINER, SPRING

5210953

$6.39

14

Screw

7515415

$1.49

15

Shaft, Lower, Pivot

5132579

$21.59

16

FITTING-LUBRICATION 1/4-28

7080424

$4.79

16

FITTING-LUBRICATION 1/4-28

7080424

$4.79

17

NUT, NYLOK

7542344

$3.99

18

Washer, Domed

5220646

$2.39

18

Washer, Domed

5220646

$2.39

18

Washer, Domed

5220646

$2.39

19

NUT-5/16-18 NYLOK-Y

7542324

$1.49

20

Strap, Limiter

5411940

Unavailable

21

BOLT

7515316

$2.39

22

Bolt

7512392

$4.79
