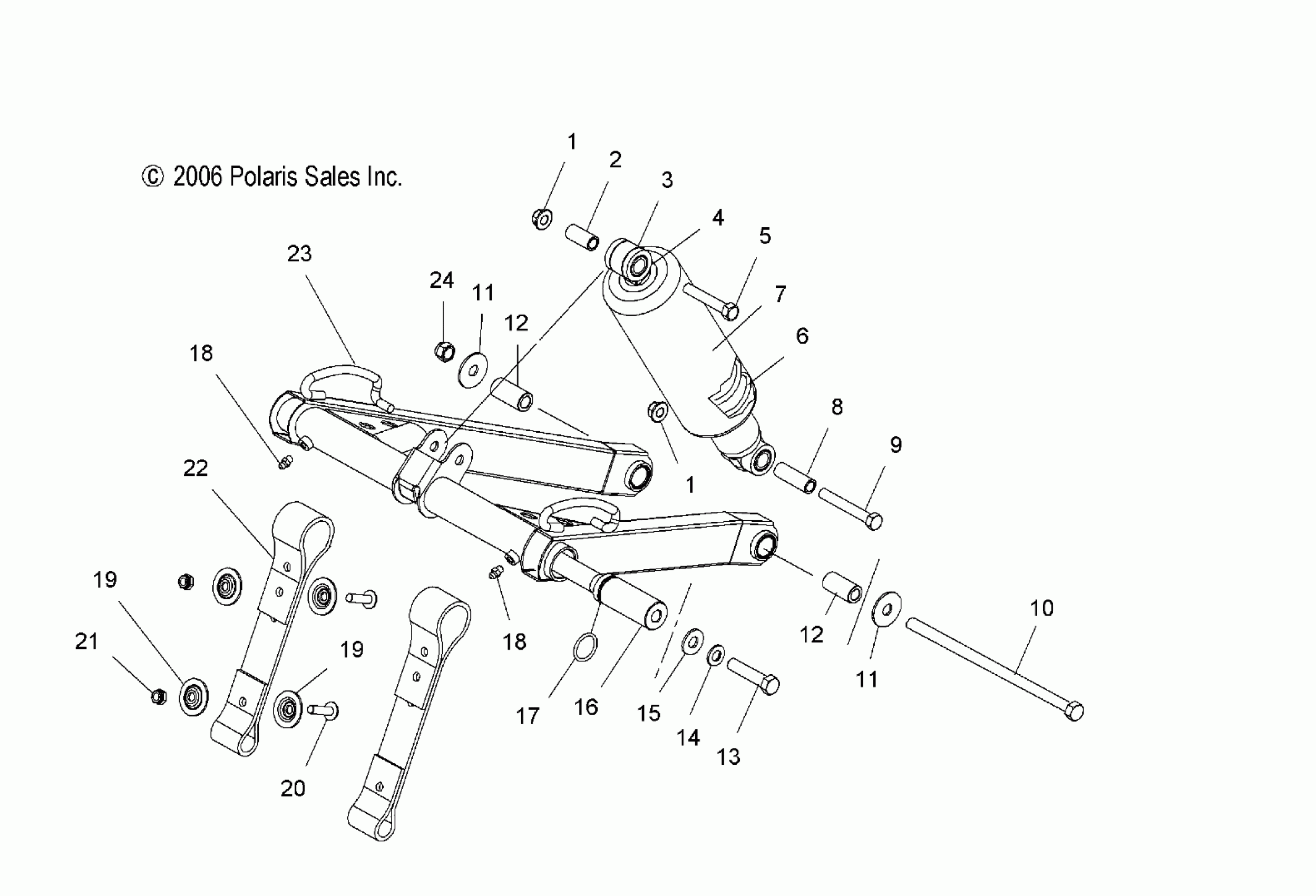

Polaris 600 HO IQ/LX CLEANFIRE - S07PP6HS/HSA/HSB/PD6HS/HE TORQUE ARM, FRONT (IQ) - S07PP6HS/HSA/HSB (49SNOWFTACLEAN) Diagram

#

Description
Price

1

NUT-3/8-24 FLG LOC

7547263

$3.19

1

NUT-3/8-24 FLG LOC

7547263

$3.19

2

SLEEVE

5333905

$15.99

3

Shock, Front Track [See Shock, Front Track [Ryde Fx/7043244] Page for Details]

7043244

Unavailable

3

Shock, Front Track [See Shock, Front Track, [FOX/7043267] Page for Details]

7043267

Unavailable

4

Retainer, Slotted Spring

5630580

Unavailable

5

Screw

7515415

$1.49

6

Spring, Compression, Black

7043147-067

$64.75

7

SHIELD, SPRING

5433503

$24.27

8

SLEEVE

5333906

$15.99

9

SCREW

7515417

$4.79

10

SCREW

7518339

$10.99

11

WASHER

7556156

$4.79

11

WASHER

7556156

$4.79

12

SHAFT

5133365

$39.99

12

SHAFT

5133365

$39.99

13

SCREW

7518261

$3.99

14

WASHER-LOCK, 7/16-B

7552614

$1.59

15

Washer, Flat

7555984

$2.39

16

SHAFT, UPPER

5133892

$114.99

17

O-RING

5411411

$1.49

18

FITTING-LUBRICATION 1/4-28

7080424

$4.79

18

FITTING-LUBRICATION 1/4-28

7080424

$4.79

19

Washer, Domed

5220646

$2.39

19

Washer, Domed

5220646

$2.39

20

SCREW

7518070

$5.59

21

NUT, NYLOK

7542344

$3.99

22

STRAP, LIMITER

5412818

$36.41

23

Asm., Arm, Torque, Front, Black

1541948-067

Unavailable

24

Nut, FLEXLOC

7542503

$10.39
