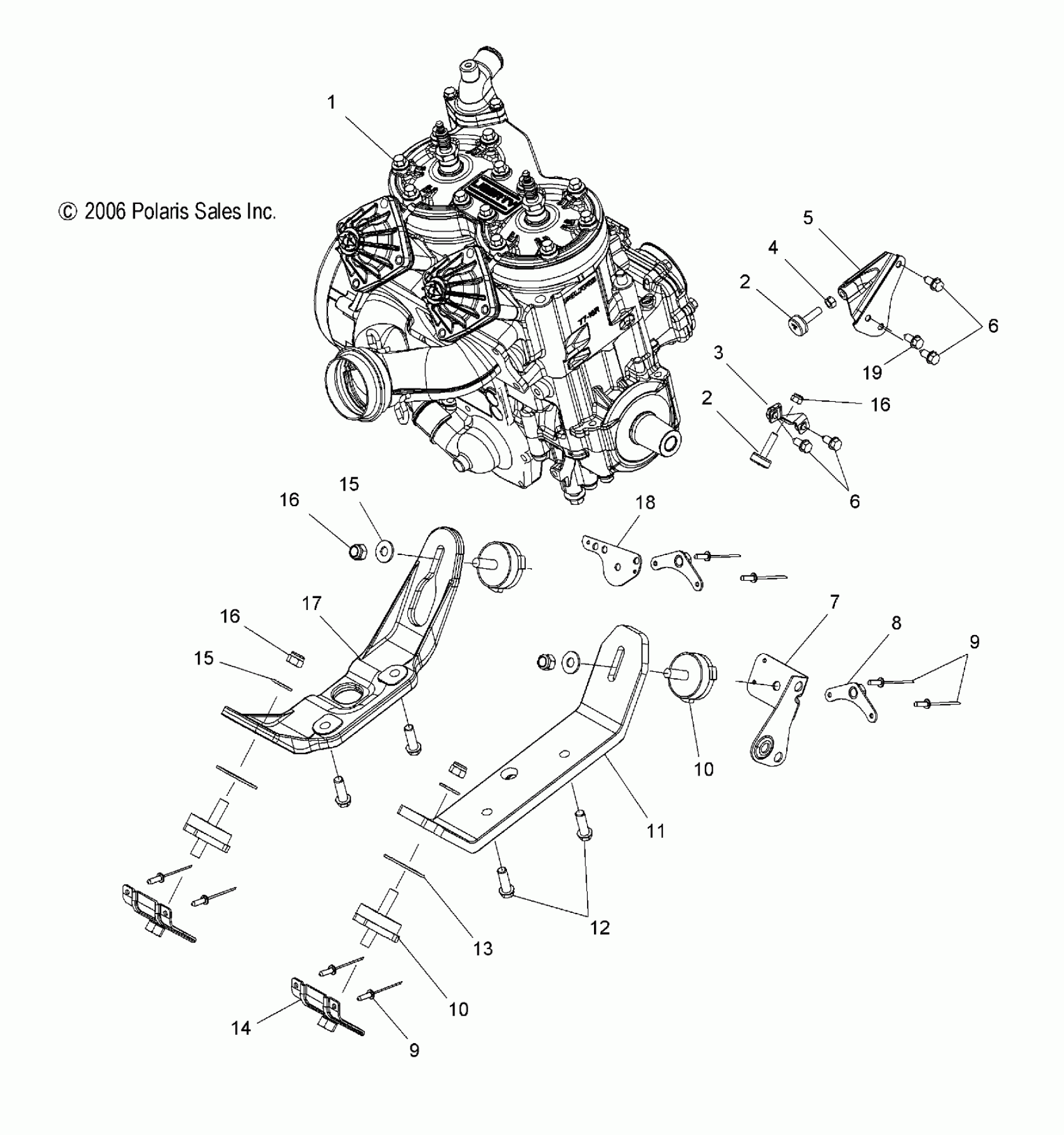

Polaris 600 HO IQ/LX CLEANFIRE - S07PP6HS/HSA/HSB/PD6HS/HE ENGINE, MOUNTING - S07PP6HS/HSA/HSB/PD6HS/HE (49SNOWENGINEMOUNTCLEAN) Diagram

#

Description
Price

1

Kit, Short Block NOTE: The Short Block assembly contains a crankcase assembly, cylinder and cylinder head assembly, and a piston and crankshaft assembly. Prior authorization is required for warranty

2203601

$4,284.99

2

Torque, Stop

3021354

$24.27

2

Torque, Stop

3021354

$24.27

3

Torque, Stop

1015728

Unavailable

4

NUT

7542404

$1.59

5

Torque, Stop

1015359

$134.99

6

Screw

7517854

$5.59

6

Screw

7517854

$5.59

7

Torque Stop/Engine Mount

1015415

$36.41

8

Plate, Nut, Rear

1015202

$6.39

9

RIVET-3/16-.090-.290

7661637

$1.49

9

RIVET-3/16-.090-.290

7661637

$1.49

10

Isolator, Rubber

3021717

Unavailable

10

Isolator, Rubber

3021717

Unavailable

11

Strap, Engine, LH

5135325

$278.99

12

SCREW

7518644

$4.79

13

WASHER

7555915

$3.19

14

Support, Plate

1015235

Unavailable

15

Washer, Flat

7555893

$1.49

15

Washer, Flat

7555893

$1.49

16

NUT-HEX-3/8-16 A ZTB NYL

7542451

$1.49

16

NUT-HEX-3/8-16 A ZTB NYL

7542451

$1.49

16

NUT-HEX-3/8-16 A ZTB NYL

7542451

$1.49

17

Strap, Engine, RH

5135326

$104.99

18

Support, Engine Mount, Rear

5250173

Unavailable

19

SCREW

7517632

$5.59
