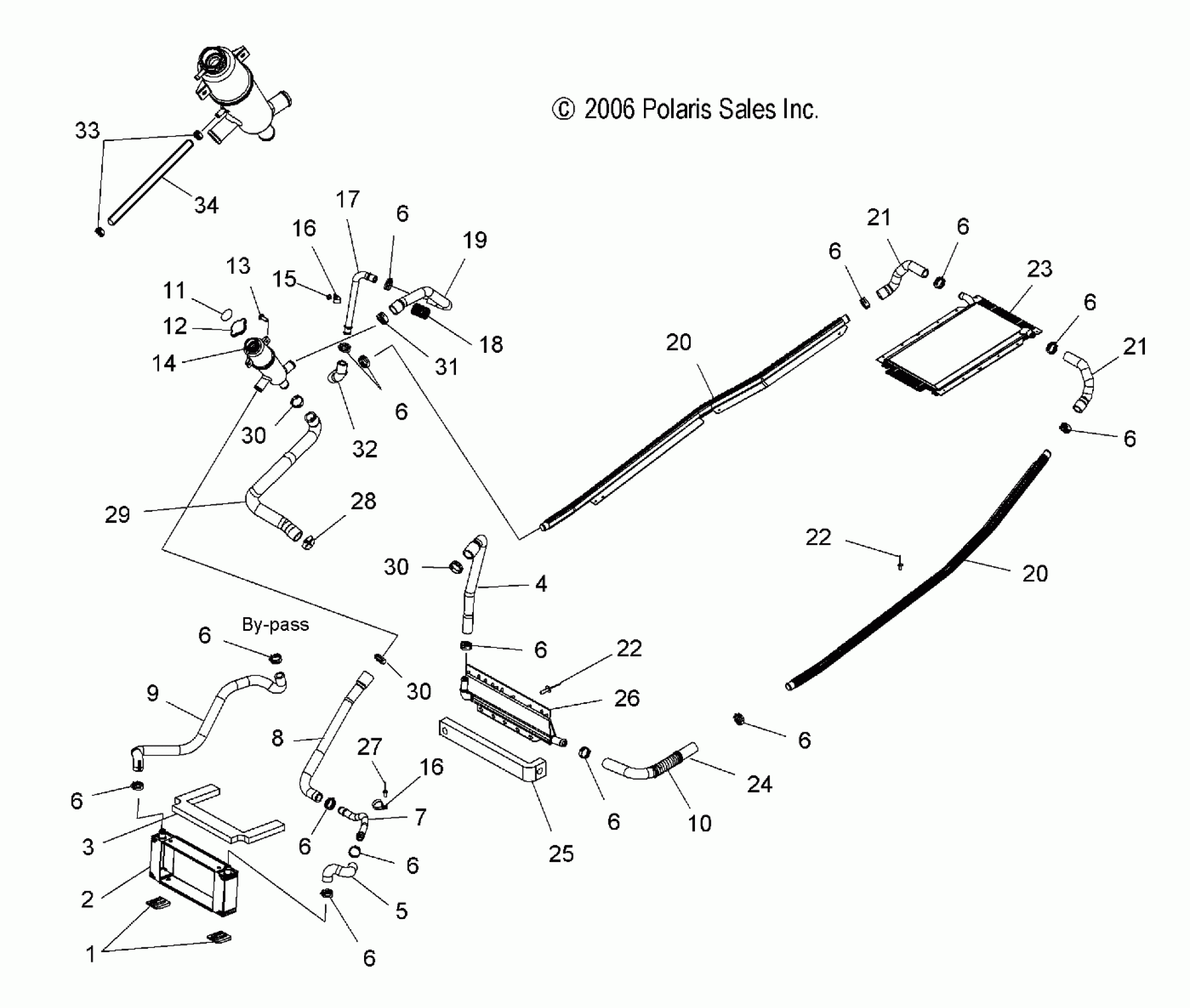

Polaris 600 HO IQ/LX CLEANFIRE - S07PP6HS/HSA/HSB/PD6HS/HE COOLING - S07PP6HS/HSA/HSB/PD6HS/HE (49SNOWCOOLINGCLEAN) Diagram

#

Description
Price

1

Mount, Radiator, Rubber

5412513

$8.08

2

Asm., Radiator

1240149

Unavailable

3

MOUNT, RADIATOR, FOAM

5812496

$9.70

4

Hose, Engine/Center Cooler

5413140

$36.41

5

Hose, Radiator/Tube

5412947

$13.75

6

CLAMP, SPRINGBAND

7080842

$7.19

6

CLAMP, SPRINGBAND

7080842

$7.19

6

CLAMP, SPRINGBAND

7080842

$7.19

6

CLAMP, SPRINGBAND

7080842

$7.19

6

CLAMP, SPRINGBAND

7080842

$7.19

6

CLAMP, SPRINGBAND

7080842

$7.19

6

CLAMP, SPRINGBAND

7080842

$7.19

6

CLAMP, SPRINGBAND

7080842

$7.19

6

CLAMP, SPRINGBAND

7080842

$7.19

6

CLAMP, SPRINGBAND

7080842

$7.19

6

CLAMP, SPRINGBAND

7080842

$7.19

6

CLAMP, SPRINGBAND

7080842

$7.19

6

CLAMP, SPRINGBAND

7080842

$7.19

6

CLAMP, SPRINGBAND

7080842

$7.19

7

Hose, Radiator/Bottle [Incl. Heat Sleeve]

5334868

$111.33

8

Hose, Tube/Bottle

5412948

$28.32

9

Hose, Engine/Radiator

5413167

$36.41

10

CONDUIT, FLEX

5521287-15

$9.70

11

DECAL, WATER BOTTLE CAP

7170063

$4.03

12

CAP, PRESSURE

1240169

Unavailable

13

SCREW

7515148

$4.79

14

Bottle, Coolant

2520479

$59.99

15

Nut, Flange

7542153

$1.59

16

CLAMP-RUBBER COATED,.75" ID

7081116

$7.19

16

CLAMP-RUBBER COATED,.75" ID

7081116

$7.19

17

Tube, Coolant

5334655

$199.99

18

Tubing, Convoluted, Hi-Temp

5521731-05

Unavailable

19

Hose, Tube/Bottle

5412789

Unavailable

20

Exchanger, Cooler, LH

5135258

$181.59

20

Exchanger, Cooler, RH

5135259

Unavailable

20

Exchanger, Cooler, LH

5135258

$181.59

20

Exchanger, Cooler, RH

5135259

Unavailable

21

Hose, Gripper/Rear Cooler, LH

5412772

Unavailable

21

Hose, Gripper/Rear Cooler, RH

5412773

Unavailable

21

Hose, Gripper/Rear Cooler, LH

5412772

Unavailable

21

Hose, Gripper/Rear Cooler, RH

5412773

Unavailable

22

RIVET-3/16-.090-.290

7661637

Unavailable

22

RIVET-3/16-.090-.290

7661637

Unavailable

23

Cooler, Rear

1240267

$1,199.99

24

Hose Center Cooler/Gripper, LH

5412766

$24.27

25

Seal

5812845

$12.13

26

Cooler, Bulkhead

2520386

$264.99

27

RIVET

7621472

$1.49

28

CLAMP-HOSE, 1.750-SS

7080560

$11.19

29

Hose, Bottle/Inlet

5413006

$44.51

30

CLAMP, SPRINGBAND

7080844

$10.39

30

CLAMP, SPRINGBAND

7080844

$10.39

30

CLAMP, SPRINGBAND

7080844

$10.39

31

Clamp, Springband

7080843

$3.99

32

Hose, Gripper/Tube

5412767

$9.11

33

Clamp, Hose

7080534

$1.59

34

Line, Fuel

8450044-153

Unavailable
