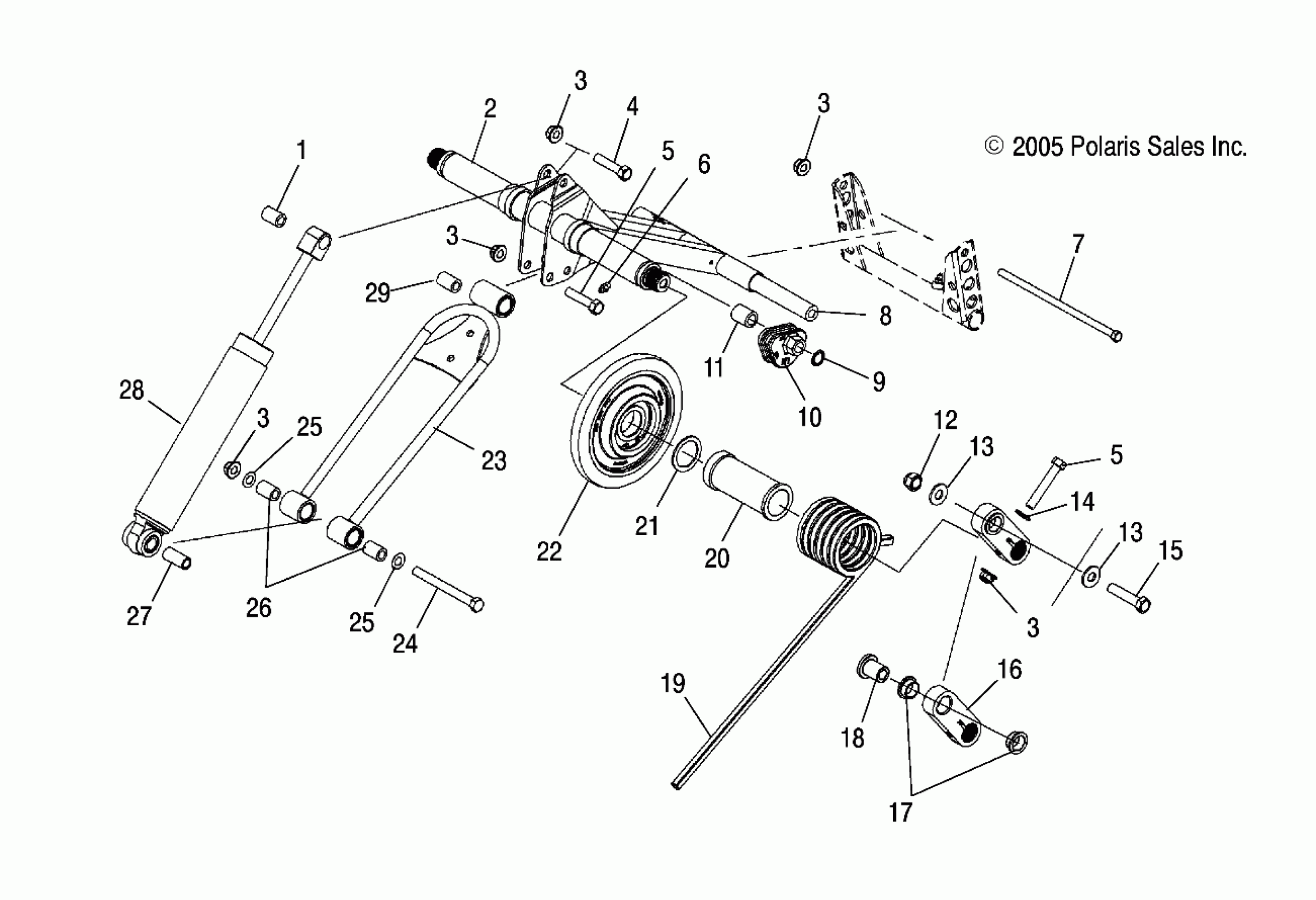

Polaris 600 HO IQ F/O - S07PP6FS/FSA/FSB TORQUE ARM, REAR - S07PP6FS/FSA/FSB (4997139713C04) Diagram

#

Description
Price

1

BUSHING

5010422

$11.99

2

Arm, Torque, Rear, Black

1542136-067

$604.99

3

NUT-3/8-24 FLG LOC

7547263

$3.19

3

NUT-3/8-24 FLG LOC

7547263

$3.19

3

NUT-3/8-24 FLG LOC

7547263

$3.19

3

NUT-3/8-24 FLG LOC

7547263

$3.19

3

NUT-3/8-24 FLG LOC

7547263

$3.19

4

SCREW

7512410

Unavailable

5

Screw

7515415

$1.49

5

Screw

7515415

$1.49

6

FITTING-LUBRICATION 1/4-28

7080424

$4.79

7

SCREW

7518241

$35.99

8

SHAFT

5133973

$24.27

9

CLIP-PUSH ON

7080394

$2.39

10

ROLLER-SPRING,TRI-ADJ,RH

5434590

$28.32

10

ROLLER-SPRING,TRI-ADJ,LH

5434589

$32.37

11

SPACER

5334285

$2.39

12

Nut, Nylok

7547066

$1.59

13

Washer, Flat

7555984

$2.39

13

Washer, Flat

7555984

$2.39

14

WASHER, FLAT

7556188

$3.19

15

BOLT

7518271

$3.19

16

Asm. Arm [Incl. 17]

1541967

$114.99

17

BUSHING

3514331

$19.99

18

SHAFT, FLANGE

5134046

$24.27

19

SPRING, TORSION, .347S, 77, 9#, BLACK, LH [OPT]

7043240-067

$154.99

19

SPRING, TORSION, .359S, 12.5#, BLACK, LH [OPT]

7043079-067

$113.32

19

SPRING, TORSION, .359S, 12.5#, BLACK, RH [OPT]

7043080-067

$113.32

19

SPRING, TORSION, .347S, 77, 9#, BLACK, RH [OPT]

7043241-067

$154.99

19

Spring, Torsion, .347S, 80, 11#, Black, LH [Std]

7043070-067

$139.99

19

Spring, Torsion, .347S, 80, 11#, Black, RH [Std]

7043071-067

$139.99

20

SLEEVE-TORSION SPRING

5434989

$3.99

21

Washer

7555939

Unavailable

22

RING-RETAINING

7710486

Unavailable

22

BEARING

3514445

Unavailable

22

ASM., WHEEL

1590001

$72.84

23

Asm., Rod, Shock, Black

1542203-067

$106.49

24

Screw

7518263

$3.99

25

WASHER-.390X.750X.020-WAVE-Y

7555795

$1.49

25

WASHER-.390X.750X.020-WAVE-Y

7555795

$1.49

26

BUSHING

5135043

$6.39

27

SLEEVE

5333905

$15.99

28

Shock, Track, Rear [See Shock, Rear Track [Fox/7043177] Page for Details]

7043177

$524.99

28

Shock, Track, Rear [See Shock, Rear Track, [7043266] Page for Details]

7043266

$814.99

29

BUSHING

5134601

$15.99
