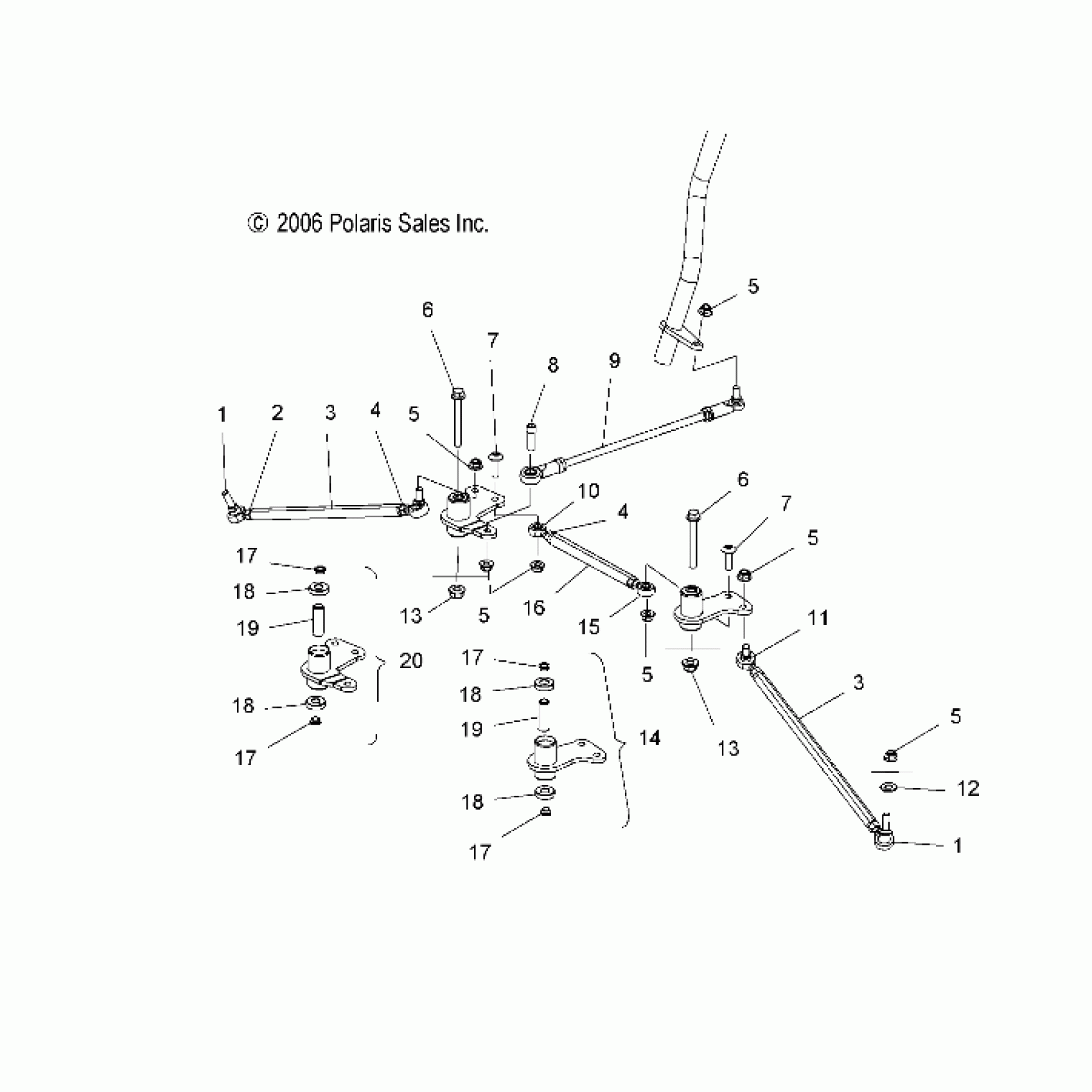

Polaris 600 HO IQ F/O - S07PP6FS/FSA/FSB STEERING - S07PP6FS/FSA/FSB (49SNOWSTEERING600HO) Diagram

#

Description
Price

1

Rod End, RH

7061057

$48.56

1

Rod End, RH

7061057

$48.56

2

Nut, Hex, RH

7542401

$2.39

3

Rod, Tie

5334667

$36.41

3

Rod, Tie

5334667

$36.41

4

NUT, LH

7542424

$1.49

4

NUT, LH

7542424

$1.49

5

NUT-3/8-24 FLG LOC

7547263

$3.19

5

NUT-3/8-24 FLG LOC

7547263

$3.19

5

NUT-3/8-24 FLG LOC

7547263

$3.19

5

NUT-3/8-24 FLG LOC

7547263

$3.19

5

NUT-3/8-24 FLG LOC

7547263

$3.19

5

NUT-3/8-24 FLG LOC

7547263

$3.19

6

Screw, Flange

7518277

$19.99

6

Screw, Flange

7518277

$19.99

7

SCREW

7518372

$2.99

7

SCREW

7518372

$2.99

8

Bolt

7515545

$5.59

9

Asm., Draglink, Fixed

1822907

$105.22

10

Rod End, LH

7060001

$48.56

11

Rod End, LH

7061055

$48.56

12

Washer, Flat

7555806

$1.49

13

NUT, FLANGED

7547180

$2.39

13

NUT, FLANGED

7547180

$2.39

14

Asm., Arm, Idler

1821419

Unavailable

15

Rod End, RH

7060002

$48.56

16

Rod, Steering Rack

5334325

Unavailable

17

BUSHING, REDUCER

5132106

$7.99

17

BUSHING, REDUCER

5132106

$7.99

17

BUSHING, REDUCER

5132106

$7.99

17

BUSHING, REDUCER

5132106

$7.99

18

Bearing, Ball

3514320

$15.99

18

Bearing, Ball

3514320

$15.99

18

Bearing, Ball

3514320

$15.99

18

Bearing, Ball

3514320

$15.99

19

SPACER, TUBE PITMAN/IDLER ARMS

5135452

$34.99

19

SPACER, TUBE PITMAN/IDLER ARMS

5135452

$34.99

20

Asm., Pitman Arm [Incl. 17-19]

1822908

$143.99
