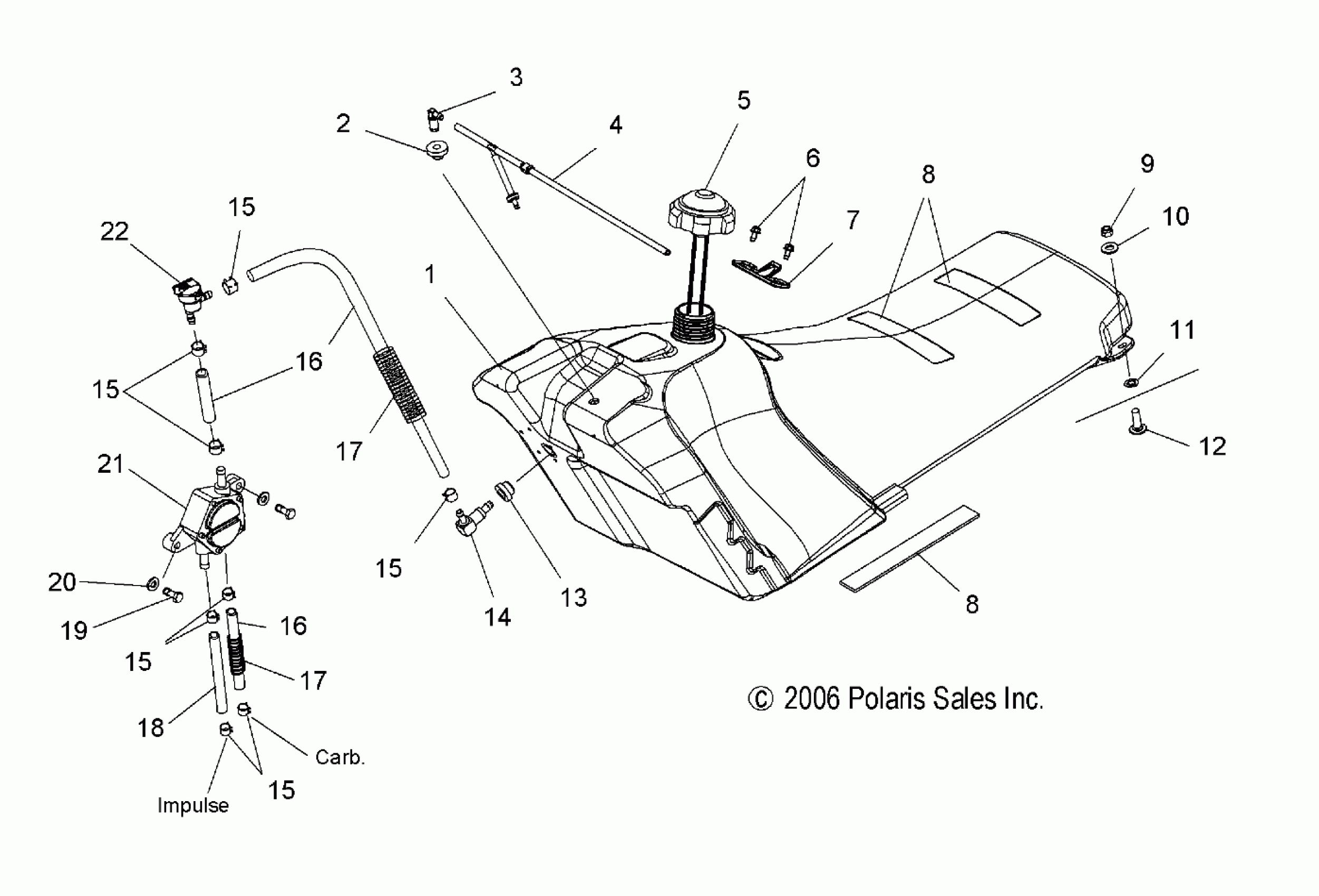

Polaris 600 HO IQ F/O - S07PP6FS/FSA/FSB FUEL SYSTEM - S07PP6FS/FSA/FSB (49SNOW FUEL600HO) Diagram

#

Description
Price

1

RING, COMPRESSION

7080768

$4.84

1

PICK-UP FUEL W/MESH

7052215

$49.99

1

LINE, FUEL

8350020-160

Unavailable

1

Asm., Fuel Tank [Incl. 2,3,6,7,13,14]

2520691

$263.99

2

Grommet, Flanged

7052362

$9.99

3

Fitting

7052380

Unavailable

4

Asm., Vent, Fuel Tank

2633187

$24.56

5

Cap, Gas w/Gauge

2511246

$44.51

6

Screw

7512208

$3.99

7

BRACKET, SEAT MOUNT

5247431

$34.99

8

PAD-BATTERY

5810290

$7.27

8

PAD-BATTERY

5810290

$7.27

9

Nut, Nylok

7542122

$1.49

10

Washer, Flat

7555859

$1.49

11

RETAINER, BOLT

7670154

$1.49

12

BOLT

7515203

$3.99

13

GROMMET, VITON

5435941

$7.60

14

Fitting

7052407

$23.99

15

HOSE CLAMP, RED

7080003

$1.49

15

HOSE CLAMP, RED

7080003

$1.49

15

HOSE CLAMP, RED

7080003

$1.49

15

HOSE CLAMP, RED

7080003

$1.49

15

HOSE CLAMP, RED

7080003

$1.49

16

Line, Fuel

8350017-160

Unavailable

16

Line, Fuel

8350017-160

Unavailable

17

TUBING, CONVOLUTED

8360052-305

Unavailable

17

TUBING, CONVOLUTED

8360052-305

Unavailable

18

Line, Fuel

8450040-600

Unavailable

19

Bolt

7512278

Unavailable

20

WASHER

7558302

$1.59

21

Pump, Fuel

2520694

Unavailable

22

Asm., Valve, Fuel

1253424

$44.99
