Partiron

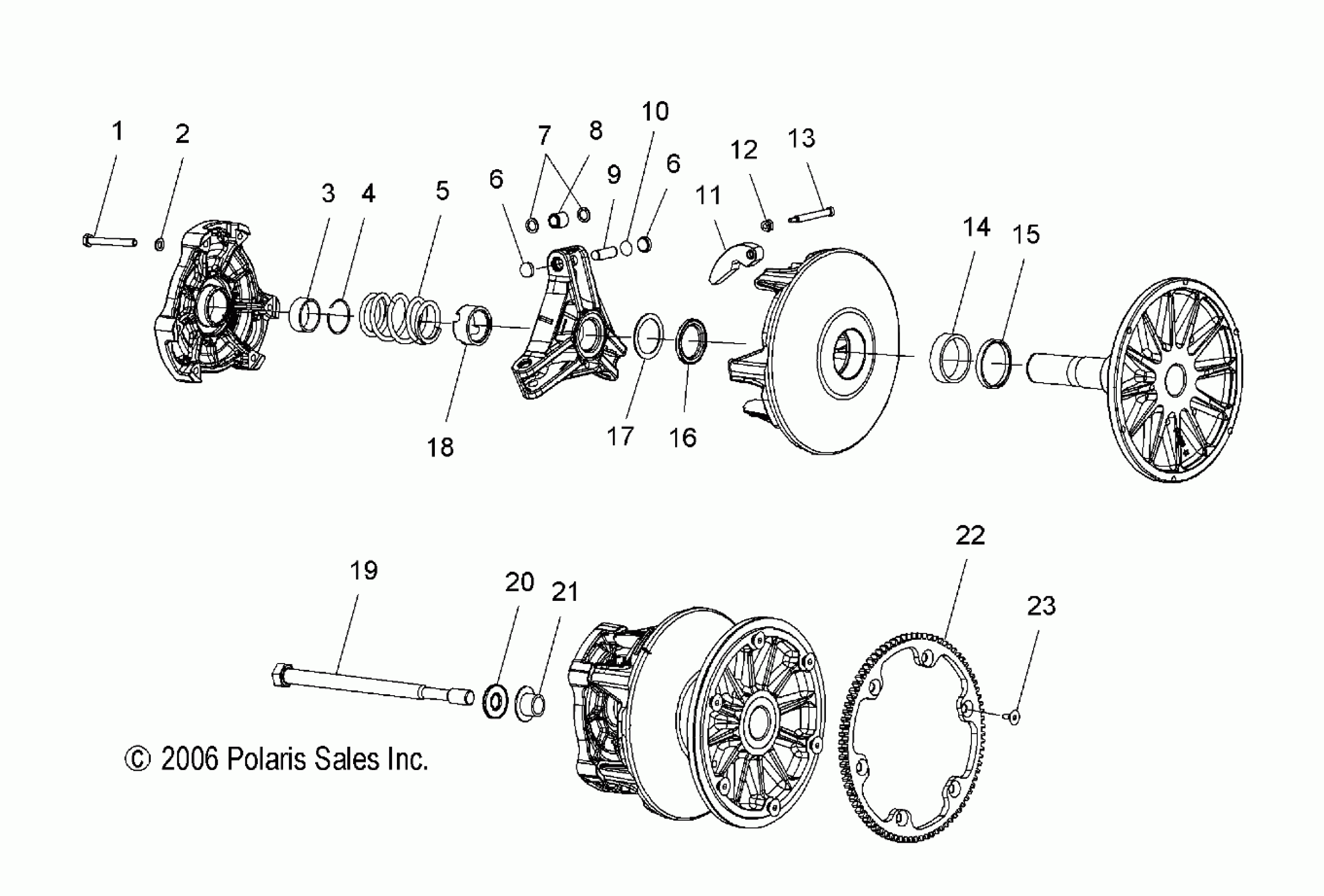

Polaris 600 HO IQ F/O - S07PP6FS/FSA/FSB DRIVE CLUTCH - S07PP6FS/FSA/FSB (49SNOWDRIVECLUTCH600RMK) Diagram

#

Description
Price

-

Asm., Drive Clutch, Basic 114 [Less 5,11,18-20]

1321928

$699.99

-

Asm., Drive Clutch, Basic W/B, E.S. [Less 5,11,18-20]

1322661

Unavailable

1

Bolt

7512265

$3.99

2

WASHER, SPRING LOCK

7552801

$1.59

3

BEARING, COVER

3576516

$28.32

4

RING-RETAINING,COVER

7710417

$1.49

5

SPRING, CLUTCH, BLACK/GREEN

7042083

$56.65

6

BUTTON, GUIDE

5430445

$6.39

6

BUTTON, GUIDE

5430445

$6.39

7

WASHER,MULTILUBE

5430945

$1.59

8

ASM-ROLLER AND BUSHING

1321622

$32.37

9

PIN, ROLLER

5133079

$6.39

10

Kit - Shim, Drive Clutch

2200387

$24.27

11

ASM., WEIGHT/BUSHING, 10-62

1321586

$40.46

12

NUT, FLEXLOC

7541906

$3.19

13

PIN-WEIGHT,HARDENED,1/4X2.00

7515105

$13.75

14

Bearing, Sleeve

3576502

$23.99

15

INSERT-MOVEABLE

5010188

$7.99

16

Spacer, .130

5134018

Unavailable

17

SPACER, .050

5210754

Unavailable

17

SPACER, .025

5242981

Unavailable

17

SPACER, .020

5210752

Unavailable

17

SPACER, .032

5210753

Unavailable

18

NUT-JAM

5020425

$23.99

19

Screw

7517501

Unavailable

20

WASHER

7556003

$6.39

21

WASHER-CLUTCH RET,M14

5132441

$23.99

22

Kit, Gear, Starter, Ring

2870002

$134.99

23

SCREW

7515351

$3.99
