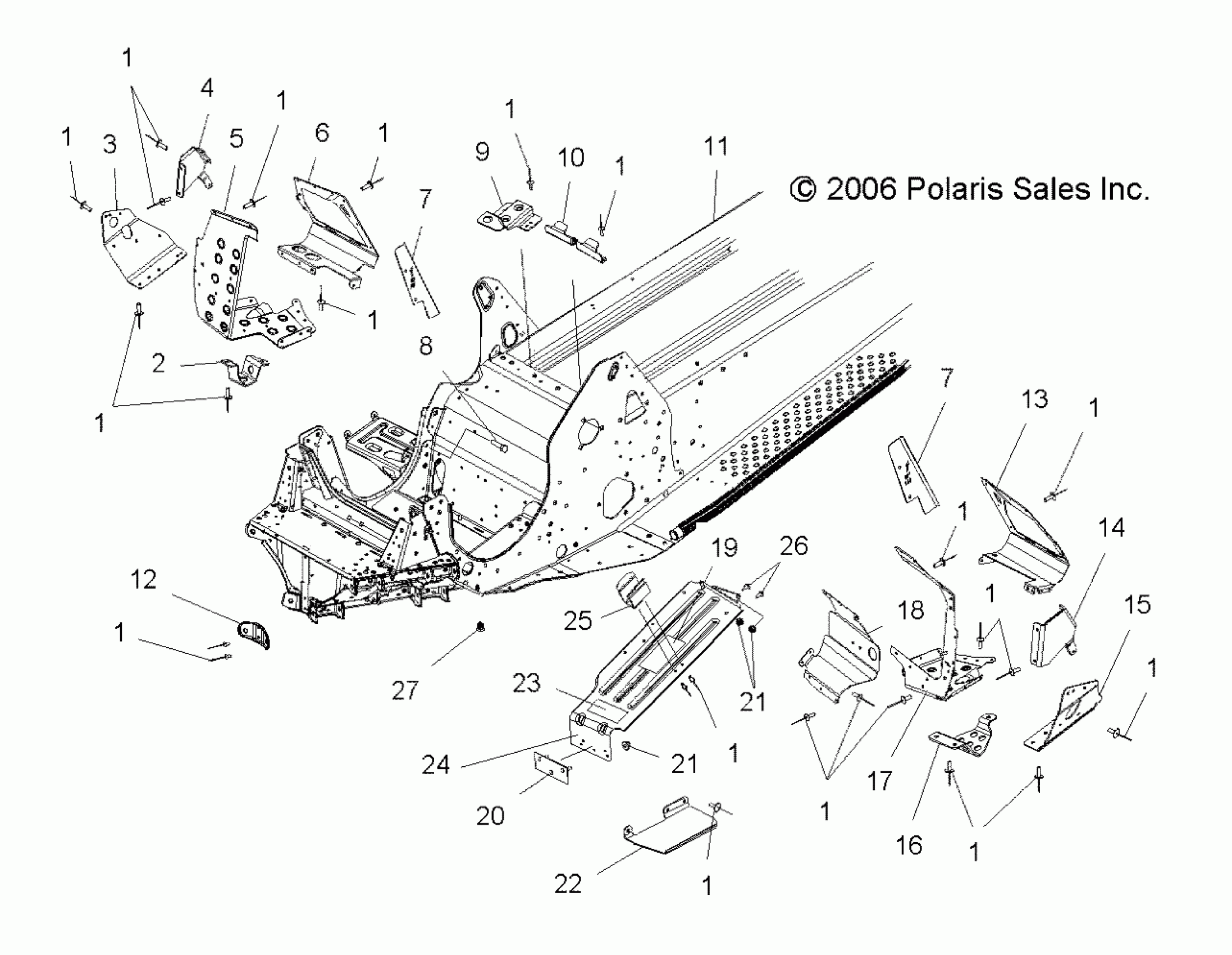

Polaris 600 HO IQ F/O - S07PP6FS/FSA/FSB CHASSIS, FRONT - S07PP6FS/FSA/FSB (49SNOWCHASSISFRT600SWTCH) Diagram

#

Description
Price

1

RIVET-3/16-.090-.290

7661637

Unavailable

1

RIVET-3/16-.090-.290

7661637

Unavailable

1

RIVET-3/16-.090-.290

7661637

Unavailable

1

RIVET-3/16-.090-.290

7661637

Unavailable

1

RIVET-3/16-.090-.290

7661637

Unavailable

1

RIVET-3/16-.090-.290

7661637

Unavailable

1

RIVET-3/16-.090-.290

7661637

Unavailable

1

RIVET-3/16-.090-.290

7661637

Unavailable

1

RIVET-3/16-.090-.290

7661637

Unavailable

1

RIVET-3/16-.090-.290

7661637

Unavailable

1

RIVET-3/16-.090-.290

7661637

Unavailable

1

RIVET-3/16-.090-.290

7661637

Unavailable

1

RIVET-3/16-.090-.290

7661637

Unavailable

1

RIVET-3/16-.090-.290

7661637

Unavailable

1

RIVET-3/16-.090-.290

7661637

Unavailable

1

RIVET-3/16-.090-.290

7661637

Unavailable

1

RIVET-3/16-.090-.290

7661637

Unavailable

2

LEG SUPPORT, RH

5248945

Unavailable

3

Support, Footrest, Lower, RH

5248808

$10.51

4

Support, Footrest Bumper, RH

5248401

Unavailable

5

Asm., Footrest w/Stud, RH

1015670

$119.99

6

TOE CLIP, RH

5248477

$64.99

7

Clip, Bulkhead Side, LH

5249677

$4.23

7

Clip, Bulkhead Side, RH

5250044

$7.03

7

Clip, Bulkhead Side, LH

5249677

$4.23

7

Clip, Bulkhead Side, RH

5250044

$7.03

8

Screw

7517810

$3.99

9

Bracket, Oil Bottle, Lower

5249094

Unavailable

10

Bracket, Air Box, Lower

5249666

$13.99

11

Asm., Chassis, Natural

1015449-309

$1,249.99

12

BRACE, FRONT LOWER A-ARM

5247372

$54.99

13

TOE CLIP, LH

5250948

Unavailable

14

Support, Footrest, Bumper, LH

5248402

Unavailable

15

SUPPORT, FOOTREST LOWER, LH

5248807

Unavailable

16

LEG SUPPORT, LH

5248403

Unavailable

17

Asm., Footrest w/Stud, LH

1015583

$109.99

18

BRACKET, CLUTCH GUARD

5247420

Unavailable

19

Decal, Belt Removal

7173298

Unavailable

20

Asm., Backer, Clutch Guard w/Stud

1015587

$12.94

21

Nut

7518287

$3.19

21

Nut

7518287

$3.19

22

GUARD, BELT

5249757

$34.99

23

Decal, Engine and Clutch

7172672

Unavailable

24

Asm., Clutch Guard/Clips/Decals

1015659

$119.05

25

CLIP, BELT RETAINER

5222769

$8.79

26

Screw

7518281

$2.39

27

Clip, Dart

7670067

$3.99
