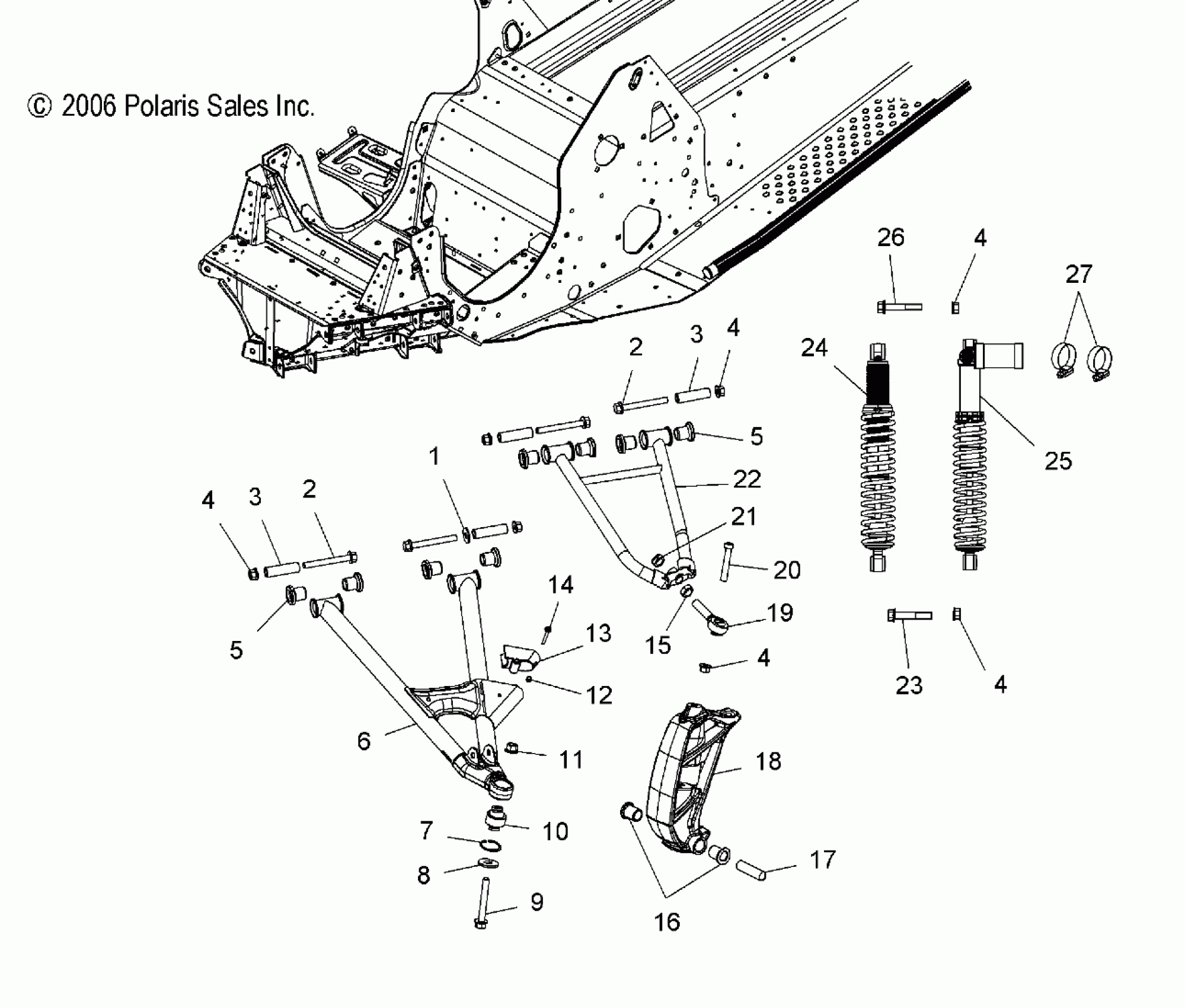

Polaris 600 CLEANFIRE SWITCHBACK - S07PS6HS/HSA/HSB SUSPENSION, FRONT - S07PS6HS/HSA/HSB (49SNOWSUSPFRT600HO) Diagram

#

Description
Price

1

Washer, Flat

7555893

$1.49

2

SCREW

7518384

$3.99

2

SCREW

7518384

$3.99

3

Shaft, Pivot

5133860

$11.60

3

Shaft, Pivot

5133860

$11.60

4

NUT, FLANGED

7547180

$2.39

4

NUT, FLANGED

7547180

$2.39

4

NUT, FLANGED

7547180

$2.39

4

NUT, FLANGED

7547180

$2.39

4

NUT, FLANGED

7547180

$2.39

5

BUSHING, PIVOT

5434932

$6.39

5

BUSHING, PIVOT

5434932

$6.39

6

Kit, Lower Control Arm, Black, RH [Incl. 3-7,12-14]

2203022-067

$309.99

6

Kit, Lower Control Arm, Black, LH [Incl. 3-7,12-14]

2203021-067

$309.99

7

RING, RETAINING

7710539

$2.39

8

WASHER

7556153

$1.99

9

SCREW

7518478

$4.79

10

KIT, SPHERICAL BEARING, LOWER [INCL. 7]

2203107

$52.37

11

NUT

7547344

$1.49

12

Nut, Nylok

7541925

$1.49

13

SLIDE, SWAY BAR

5435522

$24.27

14

SCREW

7518708

$3.19

15

Nut, Jam

7542711

$2.39

16

BUSHING-SKI PIVOT

5133983

$14.99

17

BUSHING, PIVOT

5010158

$19.99

18

Asm., Spindle, RH [Incl. 16]

1822796

Unavailable

18

Asm., Spindle, LH [Incl. 16]

1822795

Unavailable

19

ROD END

7061145

$48.56

20

SCREW

7518428

$4.79

21

NUT-1/2-20 NYLOK,THIN HT-Y

7547104

$1.49

22

Kit, Upper Control Arm, Black, RH [Incl. 3,5,12,15,19,21]

2203020-067

$224.99

22

Kit, Upper Control Arm, Black, LH [Incl. 3,5,12,15,19,21]

2203019-067

$224.99

23

Screw

7518278

$8.99

24

Retainer, Spring

5630580

Unavailable

24

Spring, Compression, White

7041576-133

$52.60

24

Shock, IFS

7043141

$259.99

25

Spring, Compression, Black

7041576-067

$43.99

25

Shock, IFS, FOX, LH [See Shock, IFS Page for Details]

7043268

$814.99

25

Shock, IFS, FOX, RH [See Shock, IFS Page for Details]

7043269

$879.99

26

SCREW

7518554

$4.79

27

CLAMP, HOSE

7080451

$7.19
