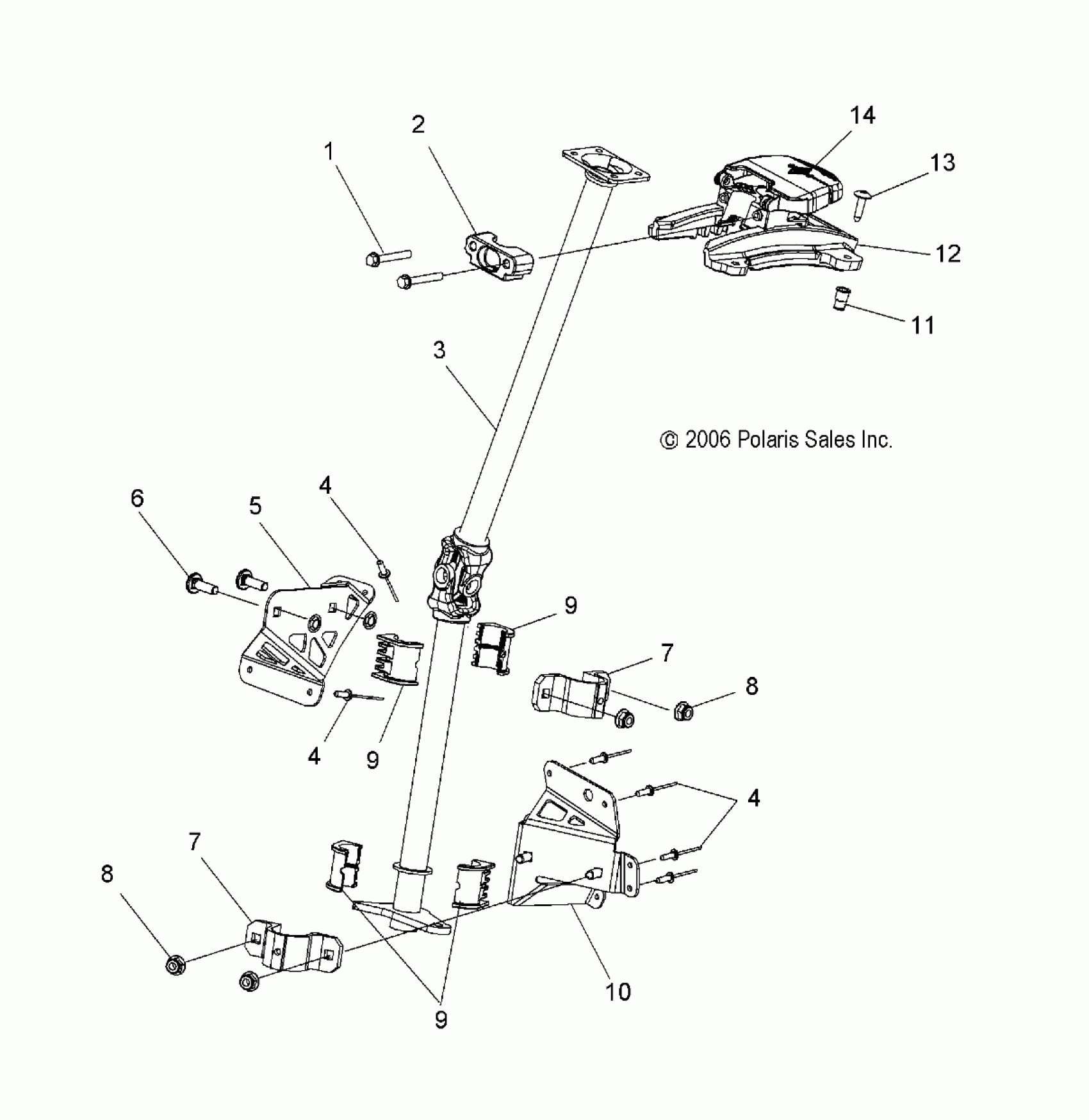

Polaris 600 CLEANFIRE SWITCHBACK - S07PS6HS/HSA/HSB STEERING POST ASSEMBLY - S07PS6HS/HSA/HSB (49SNOWSTEERINGPOSTCLEANLX) Diagram

#

Description
Price

1

Screw

7512093

$1.49

2

Block, Steering Post Front Half

5435952

$10.51

3

Post, Steering, Black

1823214-329

Unavailable

4

RIVET-3/16-.090-.290

7661637

$1.49

4

RIVET-3/16-.090-.290

7661637

$1.49

4

RIVET-3/16-.090-.290

7661637

$1.49

5

Bracket, Mid Steering Post

5250476

Unavailable

6

BOLT, CARRIAGE

7517579

$6.39

7

Bracket, Steering Post

5133648

$54.99

7

Bracket, Steering Post

5133648

$54.99

8

NUT-5/16-18 HX FLG NL-Y

7542343

$4.79

8

NUT-5/16-18 HX FLG NL-Y

7542343

$4.79

9

Bushing

5432785

$6.39

9

Bushing

5432785

$6.39

9

Bushing

5432785

$6.39

10

Bracket, Lower Steering Post

1822856

Unavailable

11

Nutsert, Hex

7547069

$3.99

12

Asm., Block, Steering Adjustable

1822863

Unavailable

13

SCREW

7518520

Unavailable

14

LEVER, ADJUSTING

5435955

$9.70
