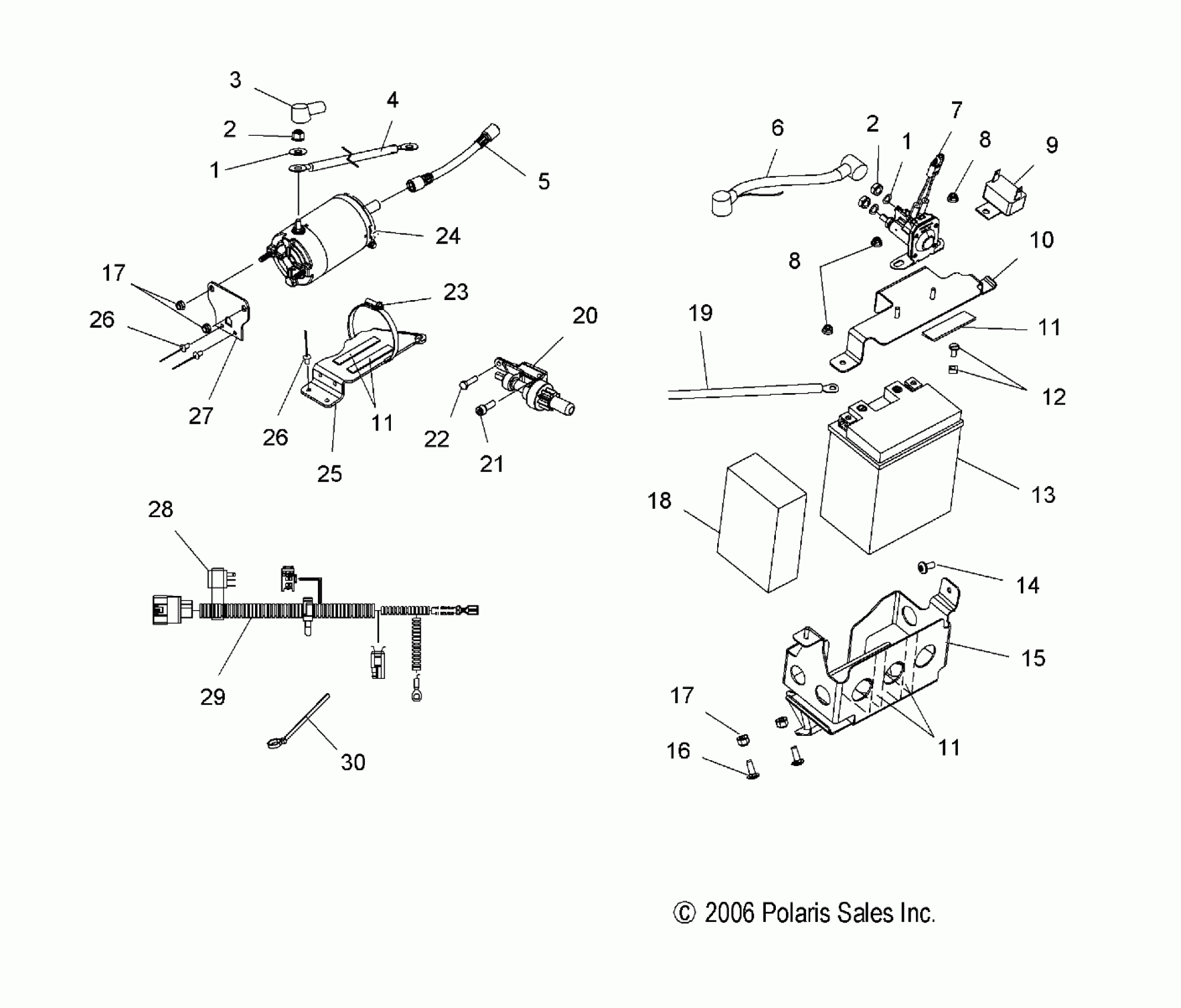

Polaris 600 CLEANFIRE SWITCHBACK - S07PS6HS/HSA/HSB STARTER/BATTERY - S07PS6HS/HSA/HSB (49SNOWSTARTERCLEAN) Diagram

#

Description
Price

1

Washer

7552801

$1.59

1

Washer

7552801

$1.59

2

NUT

7542105

$3.99

2

NUT

7542105

$3.99

3

INSULATOR-CABLE

5410346

$6.39

4

Cable, 62 Inch, Red

4011672

Unavailable

5

Shaft, Flex

3280492

Unavailable

6

Asm., Cable, Battery/Solenoid

2460393

$36.41

7

Switch, Magnetic

4011334

$52.60

8

Nut

7518287

$3.19

8

Nut

7518287

$3.19

9

Breaker, Circuit

2434009

$24.27

10

Box, Battery, Upper

1015168

Unavailable

11

PAD-BATTERY

5810290

$7.27

11

PAD-BATTERY

5810290

$7.27

11

PAD-BATTERY

5810290

$7.27

12

Kit, Battery Bolt

2202099

$5.99

13

Battery

4010905

$128.56

14

SCREW

7515148

$4.79

15

Box, Battery, Lower

1015024

Unavailable

16

Screw

7515203

$3.99

17

Nut

7542153

$1.59

17

Nut

7542153

$1.59

18

Spacer, Battery Foam

5812813

$10.79

19

Cable, 70 Inch, Black

4011673

$36.41

20

Asm., Pinion/Pinion Bracket

3089759

Unavailable

21

SCREW

7518699

$3.99

22

Screw

7516823

$3.19

23

CLAMP-BAND,NARROW 70-90MM

7081279

$3.19

24

Motor, Starter

4011671

Unavailable

25

Bracket, Mounting, Plate, Bottom

5250529

Unavailable

26

RIVET-3/16-.090-.290

7661637

$1.49

26

RIVET-3/16-.090-.290

7661637

$1.49

27

Bracket, Mounting, Plate, End

5250779

$29.03

28

Relay

4010948

$28.32

29

Harness, Jumper, ES, SDI

2410741

Unavailable

30

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41
