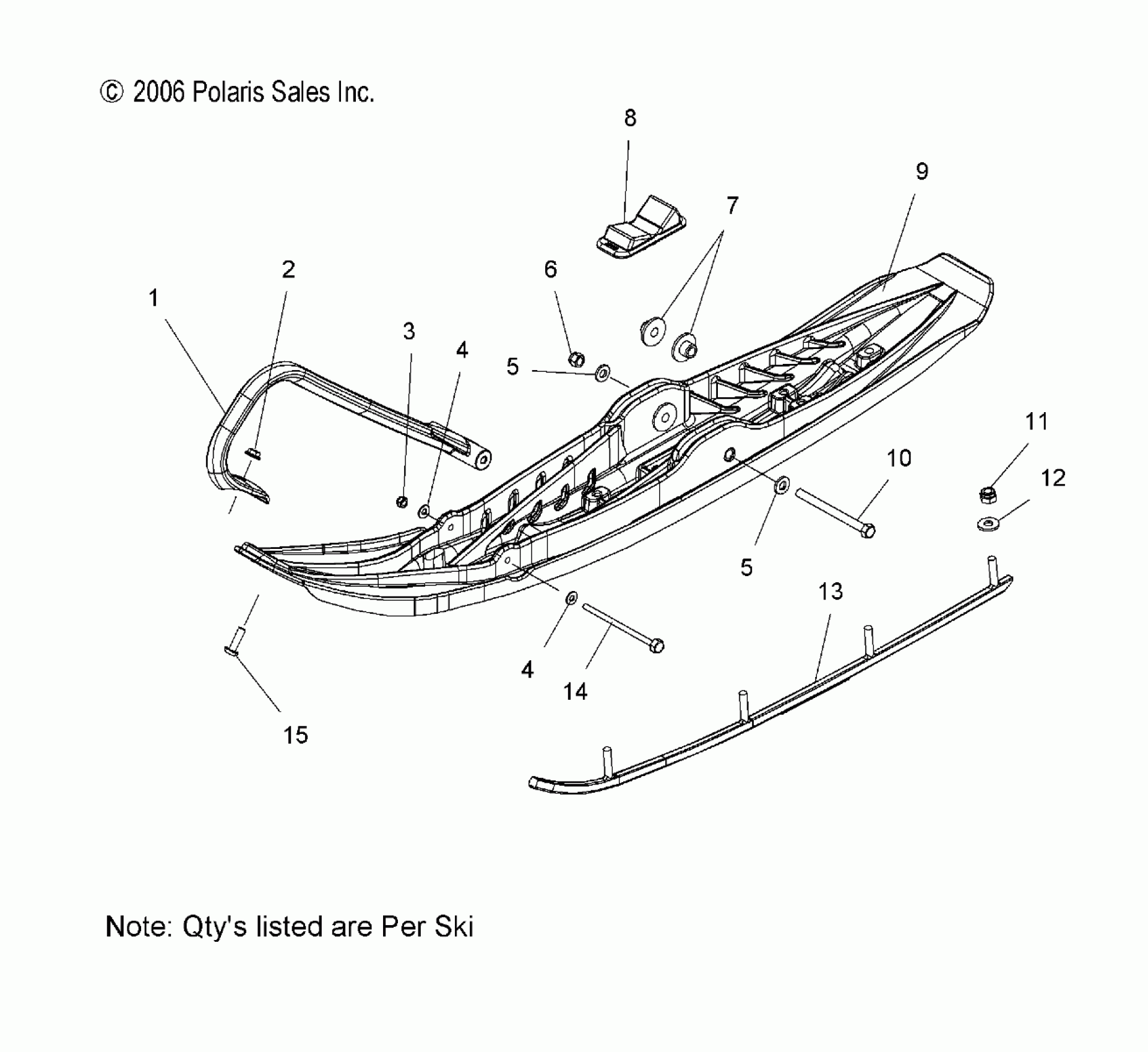

Polaris 600 CLEANFIRE SWITCHBACK - S07PS6HS/HSA/HSB SKI ASSEMBLY - S07PS6HS/HSA/HSB (49SNOWSKIASMCLEANSB) Diagram

#

Description
Price

1

TOE, PLASTIC SKI, BLACK

5435681-070

$40.46

2

Nut, Flange

7542321

$1.49

3

Nut, Nylok

7542122

$1.49

4

Washer, Flat

7558301

$1.49

4

Washer, Flat

7558301

$1.49

5

WASHER

7556130

$6.39

5

WASHER

7556130

$6.39

6

NUT-3/8-24 FLG LOC

7547263

$3.19

7

BUSHING

5134797

$20.22

8

STOP, SKI RUBBER

5413116

$19.99

9

Asm., Ski, Plastic, Black [Incl. 7]

1822933-070

$214.51

10

SCREW

7518481

$8.79

11

NUT-5/16-18 NYLOK-Y

7542324

$1.49

12

WSHR-FL-.312X.734X.065-Y

7555843

$1.59

13

Kit, Skag, Single, 3 Inch, 60 Degree [Pair]

2875954

Unavailable

14

SCREW

7518047

$5.59

15

Screw

7516317

$3.19
