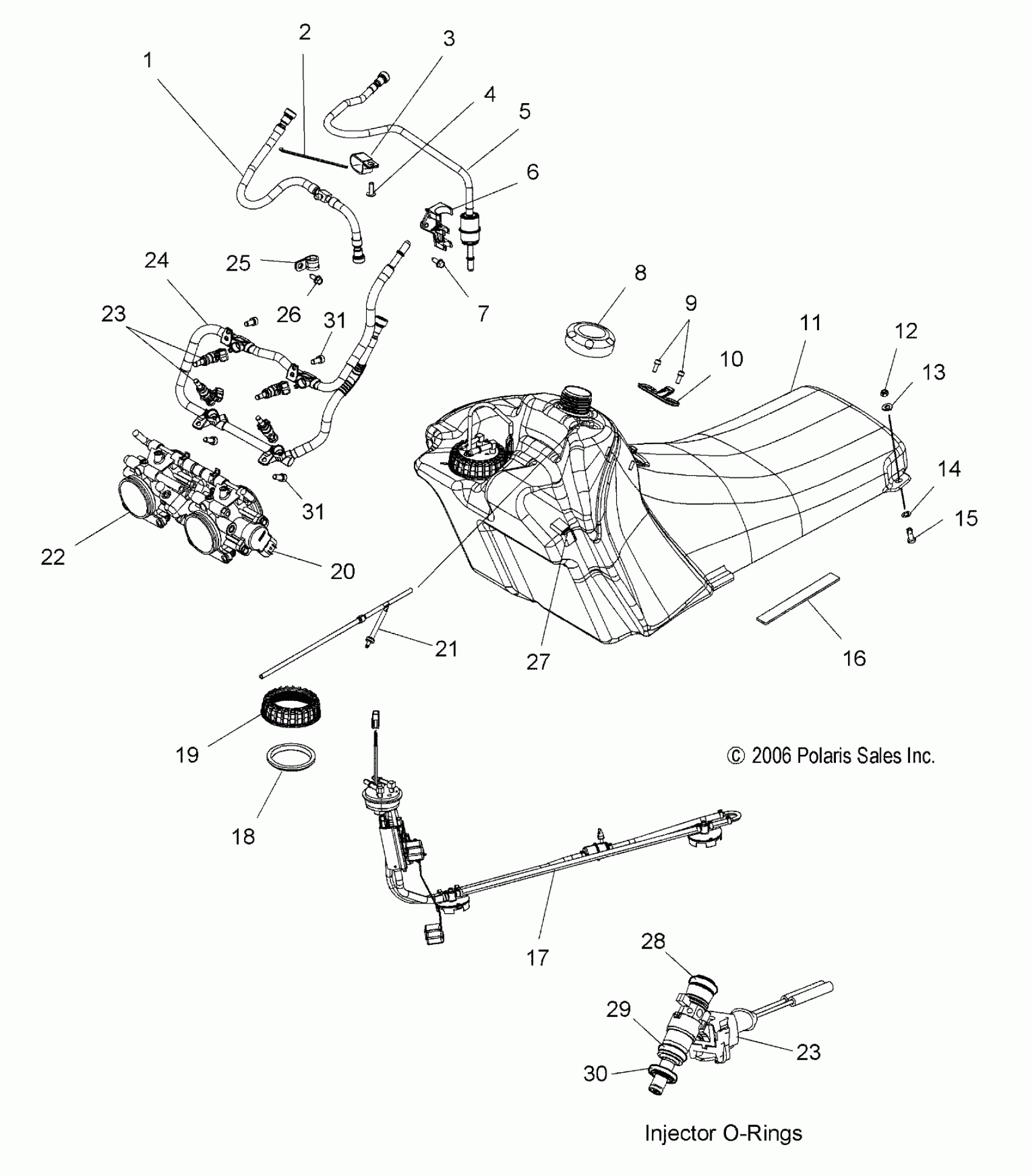

Polaris 600 CLEANFIRE SWITCHBACK - S07PS6HS/HSA/HSB FUEL SYSTEM - S07PS6HS/HSA/HSB (49SNOWFUELCLEAN) Diagram

#

Description
Price

1

Asm., Fuel Line, Return

2520648

Unavailable

2

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

3

CLAMP, DOUBLE TUBE

7081364

$1.49

4

Screw

7517916

$6.39

5

Asm., Fuel Line, Filter

2520647

$79.99

6

Pad, Fuel Filter

5812996

$8.99

6

Asm., Fuel Filter Retainer

1203256

$19.99

7

Screw

7512095

$4.79

8

Cap, Fuel Tank

5435534

Unavailable

9

Screw

7515136

$1.49

10

BRACKET, SEAT MOUNT

5247431

$34.99

11

Kit, Fuel Tank, Service [Incl. 18,27

2203288

Unavailable

12

Nut, Nylok

7542122

$1.49

13

Washer, Flat

7555859

$1.49

14

RETAINER, BOLT

7670154

$1.49

15

BOLT

7515203

$3.99

16

PAD-BATTERY

5810290

$7.27

17

CLAMP, OETIKER, 15.3

7081502

$3.99

17

Clamp, Oetiker, 14.5, Blue

7081503

$3.19

17

Asm., Pump, Fuel [Need to order Pick Up, Clamps and Gasket along w/Fuel Pump]

2520868

Unavailable

17

Asm., Pump Pick Up

2520869

$244.99

18

GASKET, PFA

5413063

Unavailable

19

NUT-PFA

5436628

Unavailable

20

SENSOR, THROTTLE POSITION

3131591

$242.84

21

Asm., Vent, Fuel Tank

2633187

$24.56

22

Asm., Throttle Body [Incl. 20]

1203213

$501.89

23

Kit, Injector, Yellow [Includes 1 Injector per kit]

2203325-053

Unavailable

23

Kit, Injector, Red [Includes 1 Injector per kit]

2203325-015

Unavailable

23

Kit, Injector, Blue [Includes 1 Injector per kit]

2203325-027

Unavailable

23

Kit, Injector, Yellow [Includes 1 Injector per kit]

2203325-053

Unavailable

23

Kit, Injector, Red [Includes 1 Injector per kit]

2203325-015

Unavailable

23

Kit, Injector, Blue [Includes 1 Injector per kit]

2203325-027

Unavailable

24

Asm., Fuel Rail

2520572

$319.99

25

Clamp, Rubber Coated

7080573

$7.19

26

Screw

7512095

$4.79

27

PAD, RUBBER

5813100

$5.65

28

O-RING-BOSCH,EV-14,UPPER, BLUE [BLACK] [1 PER INJECTOR]

1500198

$11.99

29

O-RING [BROWN] [1 PER INJECTOR]

5412891

$1.49

30

BUSHING-RUBBER, INJ ELASTOMER [GREEN] [1 PER INJECTOR]

5436287

$3.19

31

SCREW

7517431

$5.59

31

SCREW

7517431

$5.59
