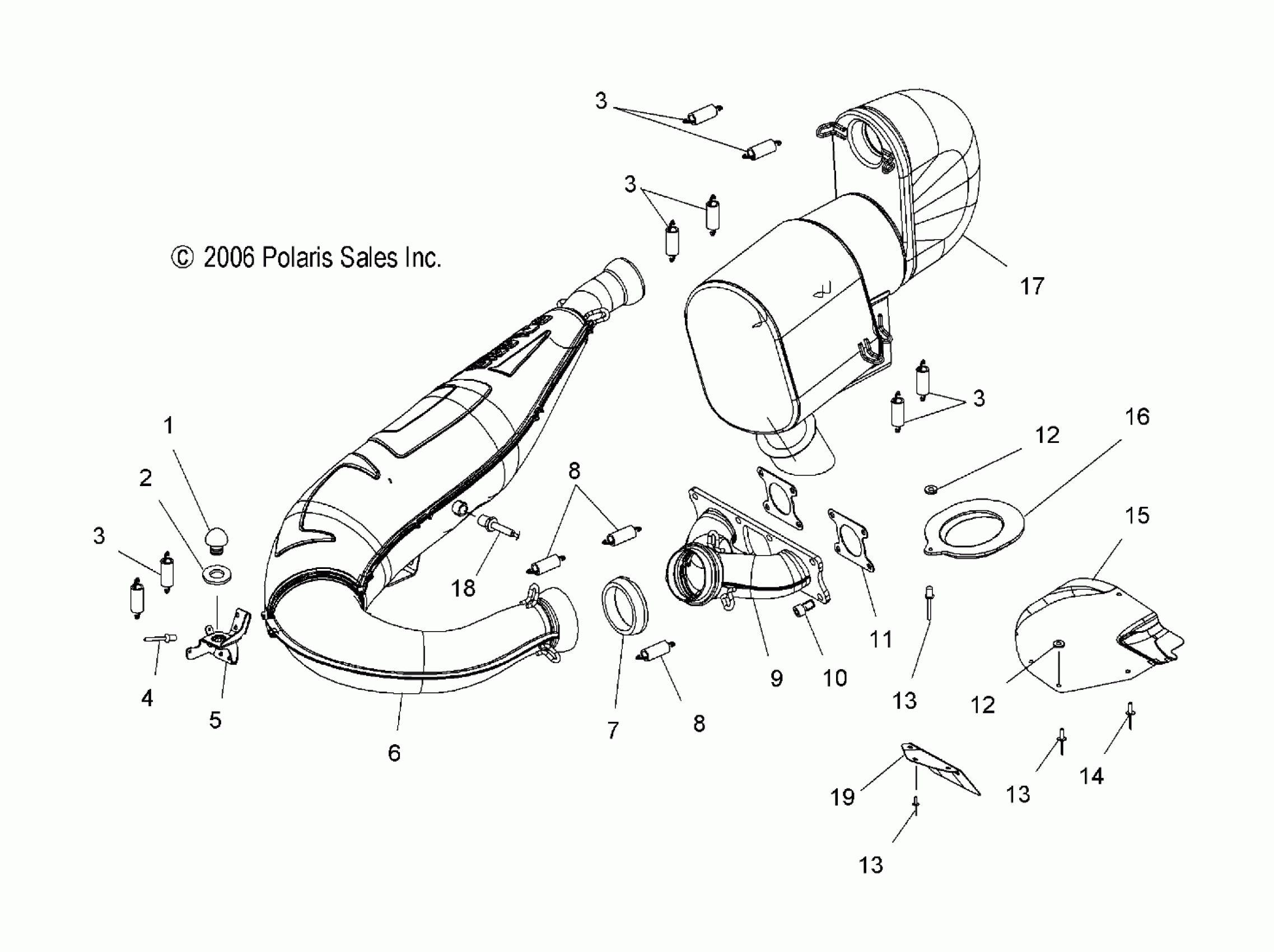

Polaris 600 CLEANFIRE SWITCHBACK - S07PS6HS/HSA/HSB EXHAUST - S07PS6HS/HSA/HSB (49SNOWEXHAUSTCLEAN) Diagram

#

Description
Price

1

Dampener, Vibration w/Ribs

5411576

$7.99

2

WASHER

7556004

$7.19

3

SPRING-EXHAUST

7041687

$5.65

3

SPRING-EXHAUST

7041687

$5.65

3

SPRING-EXHAUST

7041687

$5.65

3

SPRING-EXHAUST

7041687

$5.65

4

RIVET-3/16-.090-.290

7661637

$1.49

5

Bracket, Chassis Tuned Pipe

1261403

Unavailable

6

Clamp, Worm Drive, .44 x 3.13

7080739

$10.63

6

Clamp, Worm Drive, .44 x 6.50

7080811

$11.99

6

Clamp, Worm Drive, .44 x 5.63

7080751

$11.43

6

Matte, Tuned Pipe, Top

5812609

$20.22

6

Cover, Tuned Pipe, Top

5248073

$82.99

6

Cover, Tuned Pipe, Bottom

5250114

$49.59

6

Matte, Tuned Pipe, Bottom

5813036

$12.94

6

Asm., Tuned Pipe

1261649

$879.99

7

SEAL, EXHAUST, SOCKET

3610046

$36.41

8

Spring

7042332

$4.84

8

Spring

7042332

$4.84

9

Manifold, Black

1261638-029

$153.79

10

Screw

7517322

$2.39

11

Gasket, Exhaust

5813025

$10.51

12

WASHER

7556044

$3.99

12

WASHER

7556044

$3.99

13

RIVET

7621467

$1.49

13

RIVET

7621467

$1.49

13

RIVET

7621467

$1.49

14

Rivet

7661136

Unavailable

15

Plate, Protector, Fender

5249116

$45.59

16

Boot, Outlet, Exhaust

5436066

$20.22

17

Resonator, Black

1261681-029

$449.99

18

Sensor, Exhaust Temp

4011523

$264.99

19

Deflector, Exhaust

5249759

$28.32
