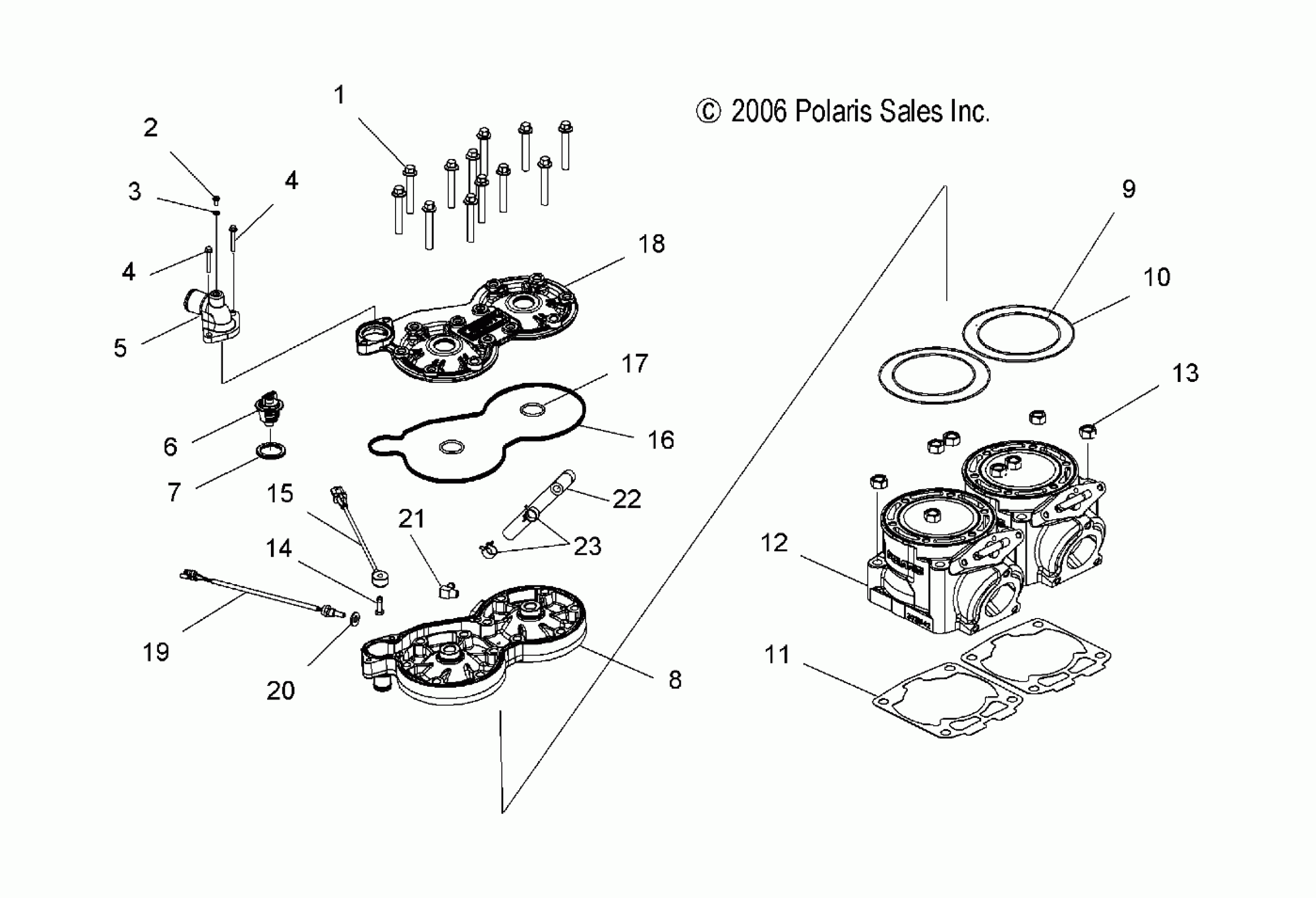

Polaris 600 CLEANFIRE SWITCHBACK - S07PS6HS/HSA/HSB ENGINE, CYLINDER - S07PS6HS/HSA/HSB (49SNOWCYLINDERCLEAN) Diagram

#

Description
Price

1

SCREW

7517533

$4.79

2

SCREW

7517679

$13.59

3

WASHER, FLAT

7555998

$1.49

4

SCREW

7516822

$2.39

4

SCREW

7516822

$2.39

5

Cover, Thermostat

5134756

Unavailable

6

Thermostat

7052258

$48.56

7

O-Ring

5411521

$24.19

8

Head, Cylinder

3021736

$309.99

9

O-RING

5410932

$20.22

10

O-RING

5411359

$15.99

11

Gasket, Cylinder Base

5813026

$20.22

12

Cylinder

3021718

$854.99

13

NUT

7547013

$1.99

14

SCREW

7517262

$5.59

15

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

15

SENSOR, DETONATION

2410369

$76.89

16

SEAL

5413036

$12.13

17

O-RING

5411411

$1.49

18

Cover, Head

5631822-329

Unavailable

19

Sensor, Water Temp

4010868

$44.51

20

Washer

7556357

$3.99

21

FITTING 90 DEGREE

7052157

$24.99

22

HOSE, COOLANT, THROTTLE BODY

5413080

$9.70

23

CLAMP-HOSE, 17/32, GREEN

7081432

$3.99
