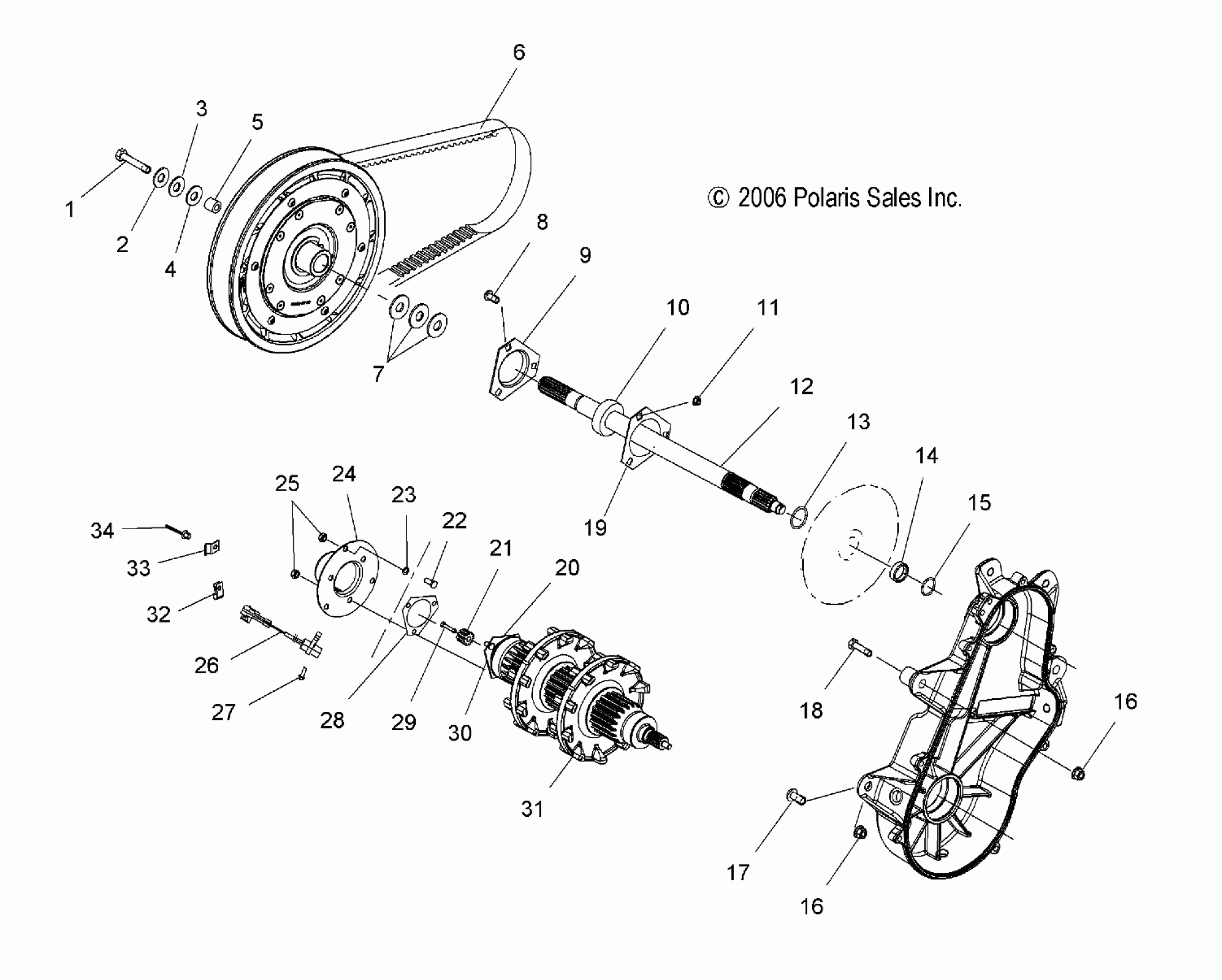

Polaris 600 CLEANFIRE SWITCHBACK - S07PS6HS/HSA/HSB DRIVE TRAIN ASSEMBLY - S07PS6HS/HSA/HSB (49SNOWDRIVETRAINCLEANSB) Diagram

#

Description
Price

1

SCREW

7517581

$1.59

2

WASHER, FLAT

7555701

$3.99

3

Washer, Flat

7555734

Unavailable

4

Washer

7555957

Unavailable

5

SPACER, INPUT SHAFT

5135611

$9.99

6

Drive, Belt

3211080

$139.99

7

Bushing

7556509

Unavailable

7

WASHER

7555917

Unavailable

7

WASHER

7555864

$2.39

8

Bolt, Carriage

7512377

$4.79

9

Flangette

5247680

$24.27

10

Bearing

3514352

Unavailable

11

NUT-5/16-18 HX FLG NL-Y

7542343

$4.79

12

Asm., Jackshaft [Incl. 10,13]

1332336

$178.08

13

RING, RETAINING

7710422

$3.99

14

Sleeve, Seal

5135231

$28.32

15

O-RING

5410613

$1.99

16

Nut, Flange

7547180

$2.39

16

Nut, Flange

7547180

$2.39

17

BOLT, CARRIAGE

7518494

$3.19

18

Bolt, Carriage

7518268

$3.19

19

FLANGETTE

5222751

$16.44

20

BEARING

3514448

Unavailable

21

Wheel, Pickup, Speedo

5240013

Unavailable

22

Bolt, Carriage

7518049

$2.39

23

PALNUT

7547030

$4.79

24

HOUSING, DRIVE PICKUP

5246960

$27.99

25

NUT-5/16-18 NYLOK-Y

7542324

$1.49

26

Sensor, Speed Pickup

2410376

$101.17

27

Bolt

7512232

$1.49

28

GASKET, JACKSHAFT, BLACK

5811095

$2.41

29

Screw

7516733

$6.39

30

ASM., FLANGETTE W/SCREWS

1014299

$43.56

31

Asm., Driveshaft

1590411

Unavailable

32

CLAMP-CABLE

7080367

$2.39

33

Retainer, J-Clip

7080963

$2.39

34

RIVET-3/16-.090-.290

7661637

$1.49
