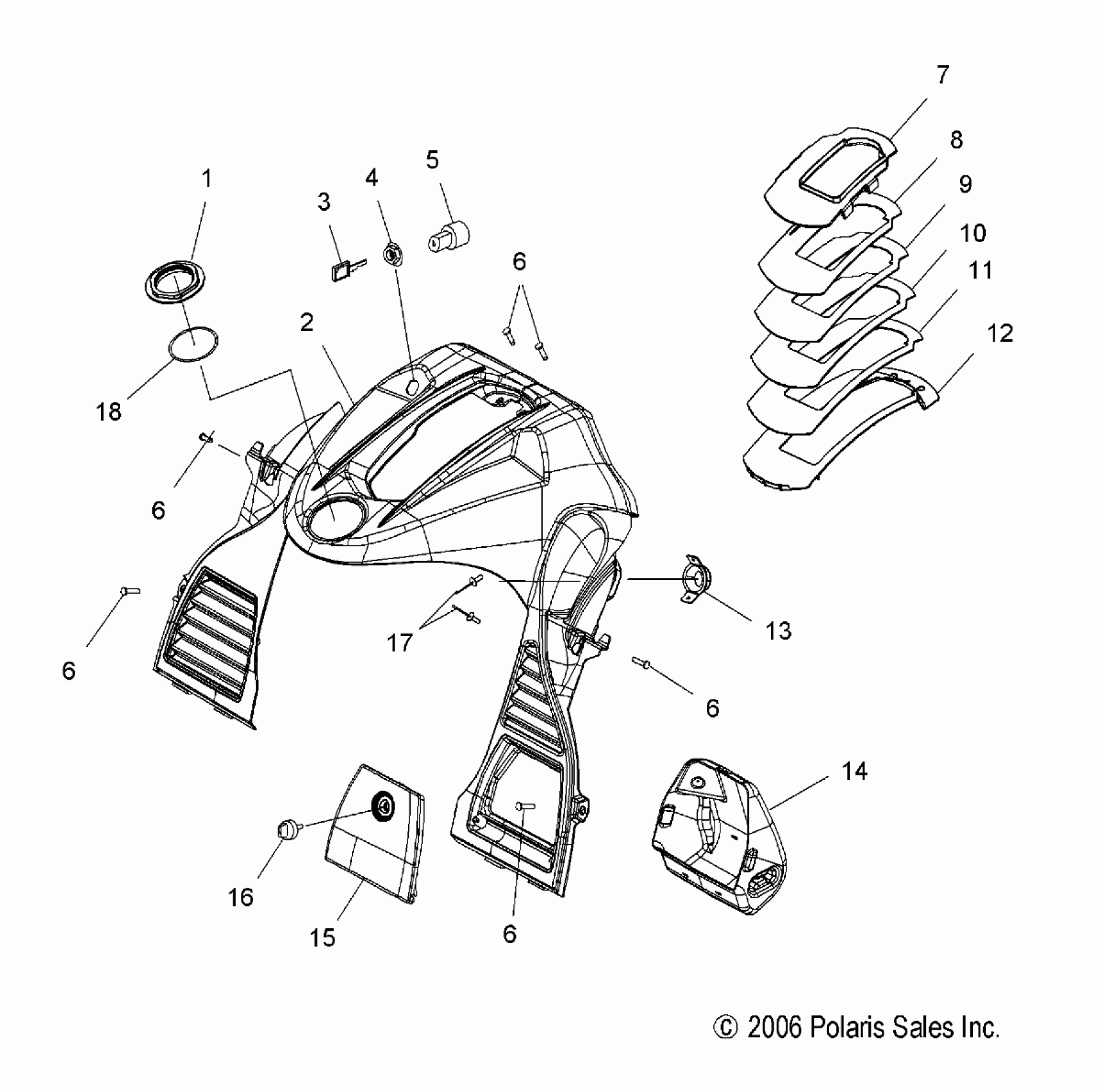

Polaris 600 CLEANFIRE SWITCHBACK - S07PS6HS/HSA/HSB CONSOLE - S07PS6HS/HSA/HSB (49SNOWCONSOLECLEANSB) Diagram

#

Description
Price

1

Nut, Filler Neck

5435156

$4.79

2

Asm., Console, SDI, Black [Incl. Warning Decals]

2633279-070

Unavailable

3

Cap w/Key

5410611

Unavailable

4

Nut, Ignition

7547035

$8.79

5

Kit, Ignition, Switch

2200358

$76.89

6

Screw

7517916

$6.39

6

Screw

7517916

$6.39

6

Screw

7517916

$6.39

6

Screw

7517916

$6.39

6

Screw

7517916

$6.39

7

Cover, Adjustable Steering, Top

5436222

Unavailable

8

Plate, Adjustable Steering, 1

5436223

Unavailable

9

Plate, Adjustable Steering, 2

5436224

Unavailable

10

Plate, Adjustable Steering, 3

5436225

Unavailable

11

Plate, Adjustable Steering, 4

5436226

Unavailable

12

Cover, Adjustable Steering, Bottom

5436227

Unavailable

13

Bracket, Rope Guide

5248563

$34.99

14

Compartment, Storage, RH

5435944

$139.99

15

Asm., Door, Console, Black, RH

2632858-070

Unavailable

16

KEY, BLACK [INCL. LOCK]

5435207-070

$12.99

17

Rivet

7621323

$1.49

18

O-Ring

5411174

$1.60
