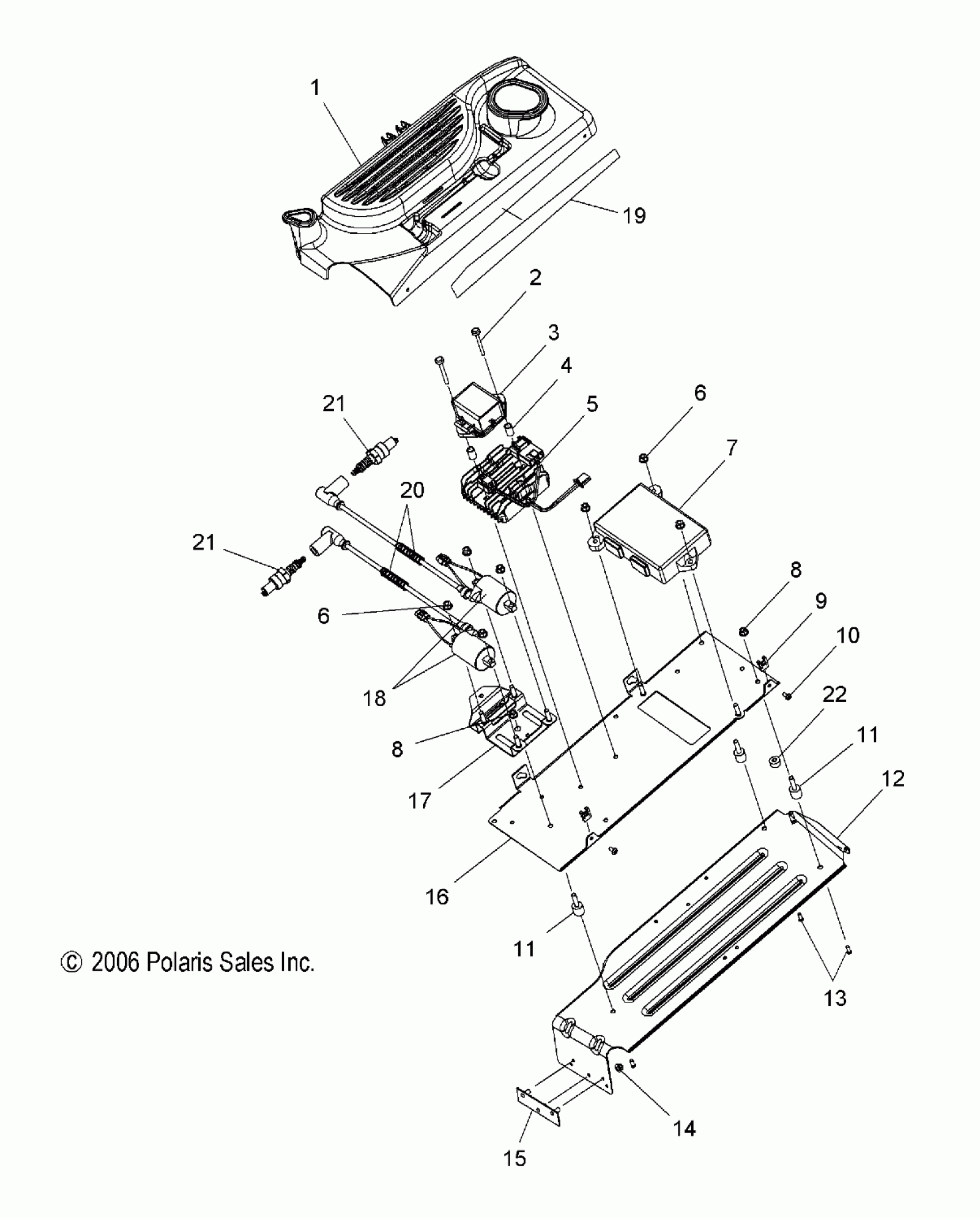

Polaris 600 CLEANFIRE SWITCHBACK - S07PS6HS/HSA/HSB CLUTCH GUARD/ELECTRICAL - S07PS6HS/HSA/HSB (49SNOWCLUTCHGUARDCLEAN) Diagram

#

Description
Price

1

Cover, Center Electrical

5436633

$54.99

2

Screw

7518157

$5.99

3

Capacitor

4011114

$130.70

4

Spacer

5010339

$7.19

5

Regulator

4011731

Unavailable

6

NUT-6MM X 1 NYLOK-Z

7546703

$1.49

7

ECU

4011518

$547.05

8

Nut

7546701

$3.99

8

Nut

7546701

$3.99

9

NUT, U-TYPE

7670157

$3.99

10

SCREW

7517561

$1.59

11

Mount, Rubber

3021783

$8.08

11

Mount, Rubber

3021783

$8.08

12

Asm., Clutch Guard w/Stud

1015759

$79.98

13

Screw

7518430

$4.79

14

Nut, Nylon, Flange

7518287

$3.19

15

Asm., Backer, Clutch Guard w/Stud

1015587

$12.94

16

Asm., Plate, Electrical Center w/Stud

1015761

Unavailable

17

Asm., Bracket/Coil w/Studs

1015530

$43.56

18

Coil, Ignition, KOK 6/7 SDI

4011596

Unavailable

19

Decal, Clutch Warning/Belt Removal

7174166

Unavailable

20

Conduit, Convoluted, Hi-Temp

4011722-33

$8.08

21

Plug, Spark, RN57YCC

3070190

$3.99

21

Plug, Spark, RN57YCC

3070190

$3.99

22

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99
