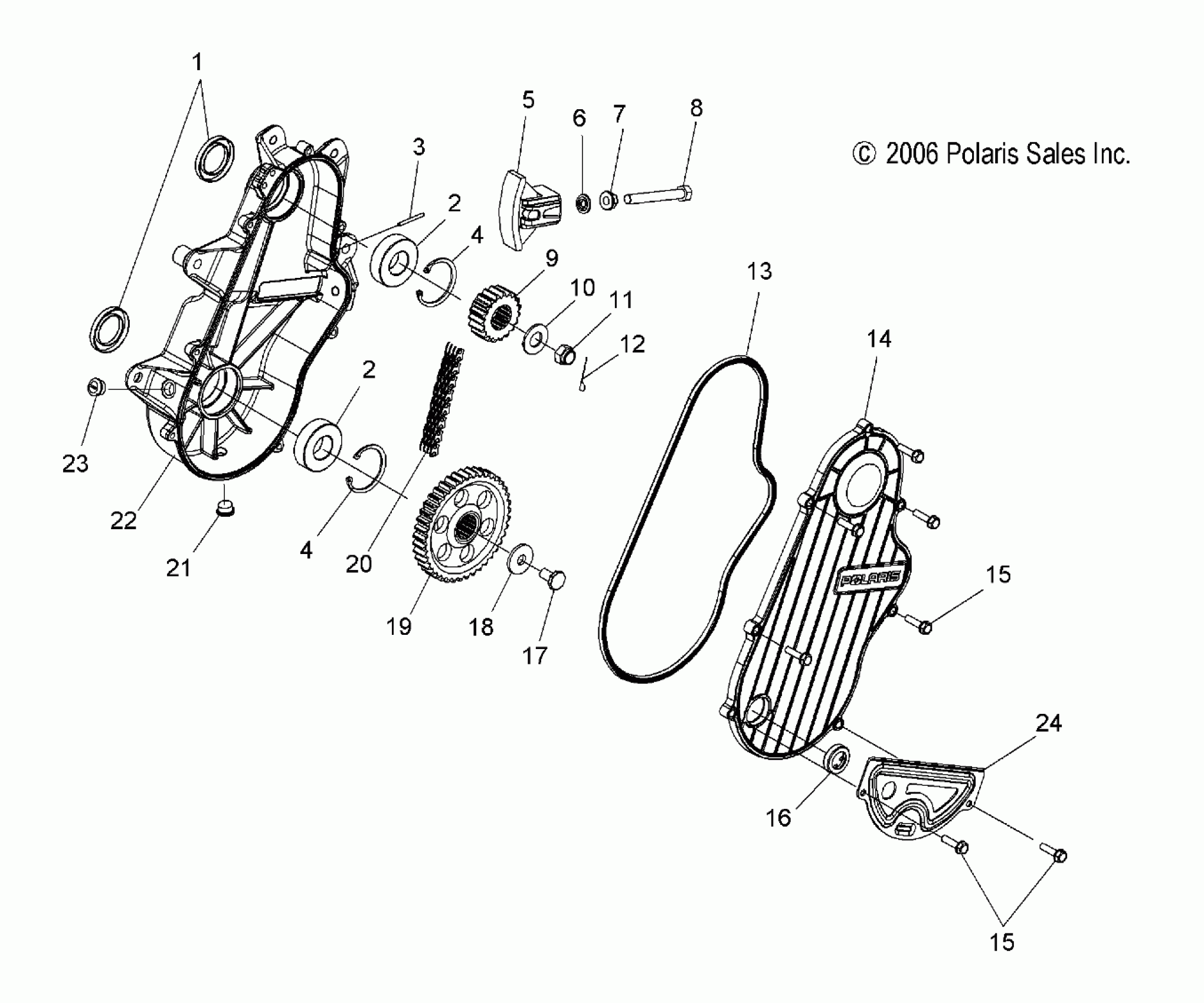

Polaris 600 CLEANFIRE SWITCHBACK - S07PS6HS/HSA/HSB CHAINCASE - S07PS6HS/HSA/HSB (4997139713C07) Diagram

#

Description
Price

1

SEAL-OIL

3610030

$20.22

2

BEARING, BALL

3514309

$15.87

2

BEARING, BALL

3514309

$15.87

3

Pin, Roll

7661867

$2.39

4

RET.RING-TRUARC(N5000-206)-P

7718406

$6.39

4

RET.RING-TRUARC(N5000-206)-P

7718406

$6.39

5

ASM-TIGHTENER,CHAIN,VESPEL

1332427

$79.99

6

WASHER, THREAD SEAL

7556340

$3.19

7

Nut, Hex

7547304

$3.19

8

Screw

7515551

$6.39

9

SPROCKET, 22T, 3/4W

3221098

$49.99

10

Washer, Spring

7571620

$7.19

11

Nut

7547202

$5.59

12

Pin, Cotter

7661203

$1.49

13

Gasket, Chaincase Cover [For Chaincase 5134817]

5812755

$29.99

14

Asm., Cover w/Sight Glass [For Chaincase 5134817]

1332354

$89.99

15

Screw [For Chaincase 5134817]

7512225

$3.99

15

Screw [For Chaincase 5134817]

7512225

$3.99

16

Oil Check, Sight Glass

3610126

$28.32

17

Screw

7518358

Unavailable

18

WASHER, BELLE

7556130

$6.39

19

SPROCKET, 39T

3222108

$59.99

20

CHAIN, 76P, 3/4W

3221108

$164.99

21

Plug, Magnetic

7052394

$20.22

22

Screw

7515179

$2.39

22

Kit, Service Chaincase/Cover [Incl. Gasket][Replaces 5134817]

2203548

Unavailable

22

Asm., Cover w/Sight Glass

1332596

$439.99

22

Gasket, Chaincase Cover

5813205

$29.99

23

Plug, Magnetic

7052382

$16.17

24

Bracket, Cover, Black [For 1332354 Cover Asm. Only]

5251316-329

Unavailable
