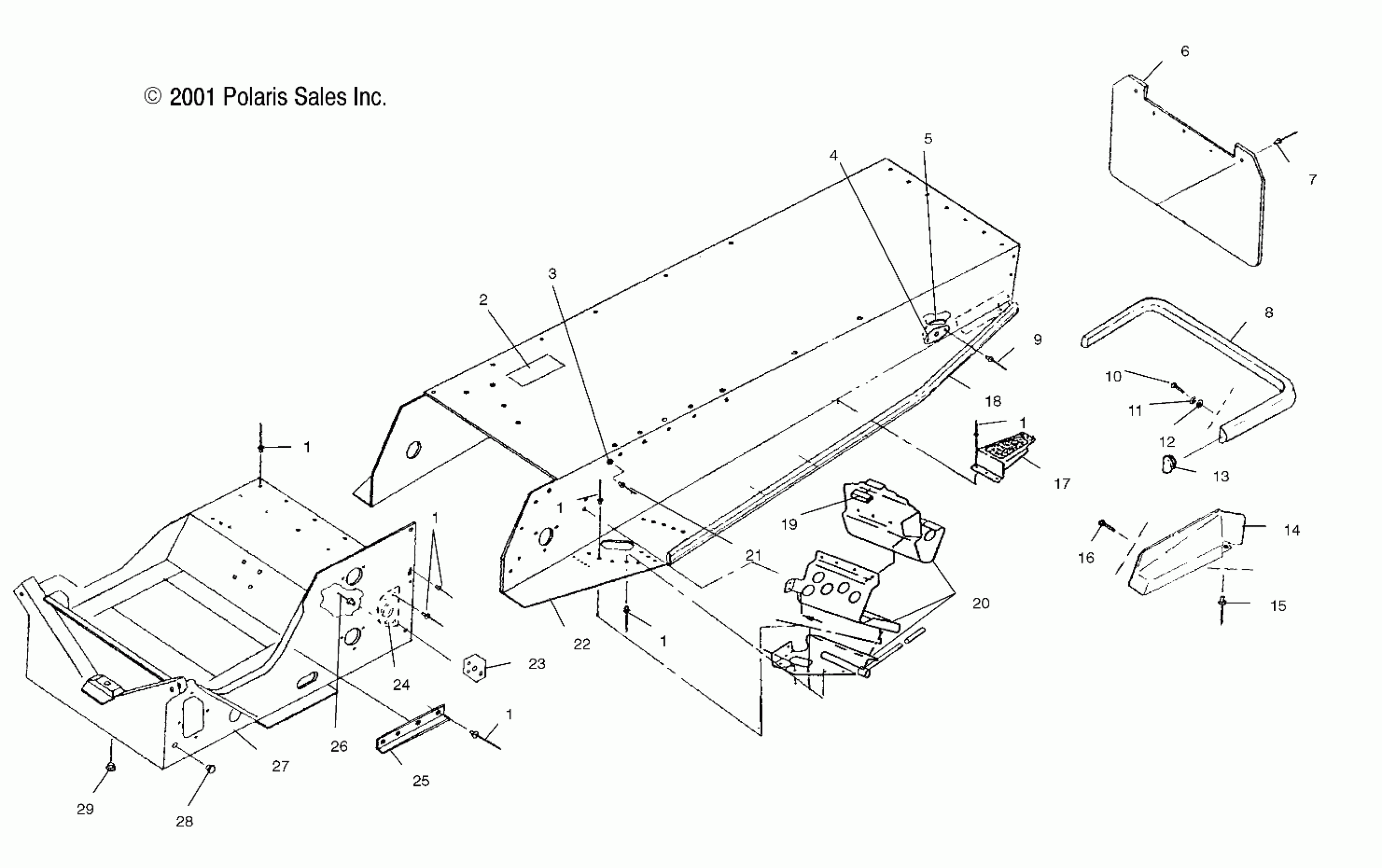

Polaris 600 CLASSIC TOURING - S02ST6ES TUNNEL - S02ST6ES/S02ST6ESA (4968596859A03) Diagram

#

Description
Price

1

RIVET-3/16-.090-.290

7661637

$1.49

1

RIVET-3/16-.090-.290

7661637

$1.49

1

RIVET-3/16-.090-.290

7661637

$1.49

1

RIVET-3/16-.090-.290

7661637

$1.49

1

RIVET-3/16-.090-.290

7661637

$1.49

2

Decal, Tunnel Strip

7073978

Unavailable

3

Snap, Male

7080227

Unavailable

4

Plate, Tunnel Support

5211660-067

$3.17

5

Bracket, U-Tensioner

5211590-067

$7.38

6

Flap, Snow

5432149-1106

Unavailable

7

RIVET

7621418

$1.49

8

Bumper, Rear

2670168-067

Unavailable

9

Rivet

7661846

$1.99

10

Screw

7515159

$4.79

11

WASHER, SPRING LOCK

7552801

$1.59

12

Washer, Flat

7558301

$1.49

13

Cap, Bumper

5431995-070

Unavailable

14

Skirt, Snow, LH

5432131-070

$33.91

14

Skirt, Snow, RH

5432132-070

$30.95

15

RIVET

7621467

$1.49

16

Screw

7512091

$3.99

17

Pad, Footrest Grip

5830114

$35.24

17

Footrest w/Pad, LH

1012633

$35.51

17

Footrest w/Pad, RH

1012634

$35.24

18

Edge, Tunnel, LH

5242206

$222.49

18

Edge, Tunnel, RH

5242207

Unavailable

19

EXTRUSION, CLUTCH GUARD

5521238

$6.46

20

Footrest, LH

1013531

Unavailable

20

Footrest, RH

1013476

$107.19

21

RIVET-POP 1/8(.063-.125)-ST-Z

7621222

$1.49

22

Tunnel [Incl. Heat Exchangers]

1013546

Unavailable

23

Plate, Suspension, Front, Outer

5211746-067

$13.39

24

Mount, Front Suspension, RH

1012270-067

$66.99

24

Mount, Front Suspension, LH

1012269-067

$66.99

25

Guard, Adaptor, Drive

5222857

$12.94

26

Rivet

7661130

$1.49

27

Bulkhead

1013031

$1,374.99

28

PLUG, HOLE

7080416

$5.65

29

PLUG-HOLE

7080398

$4.84
