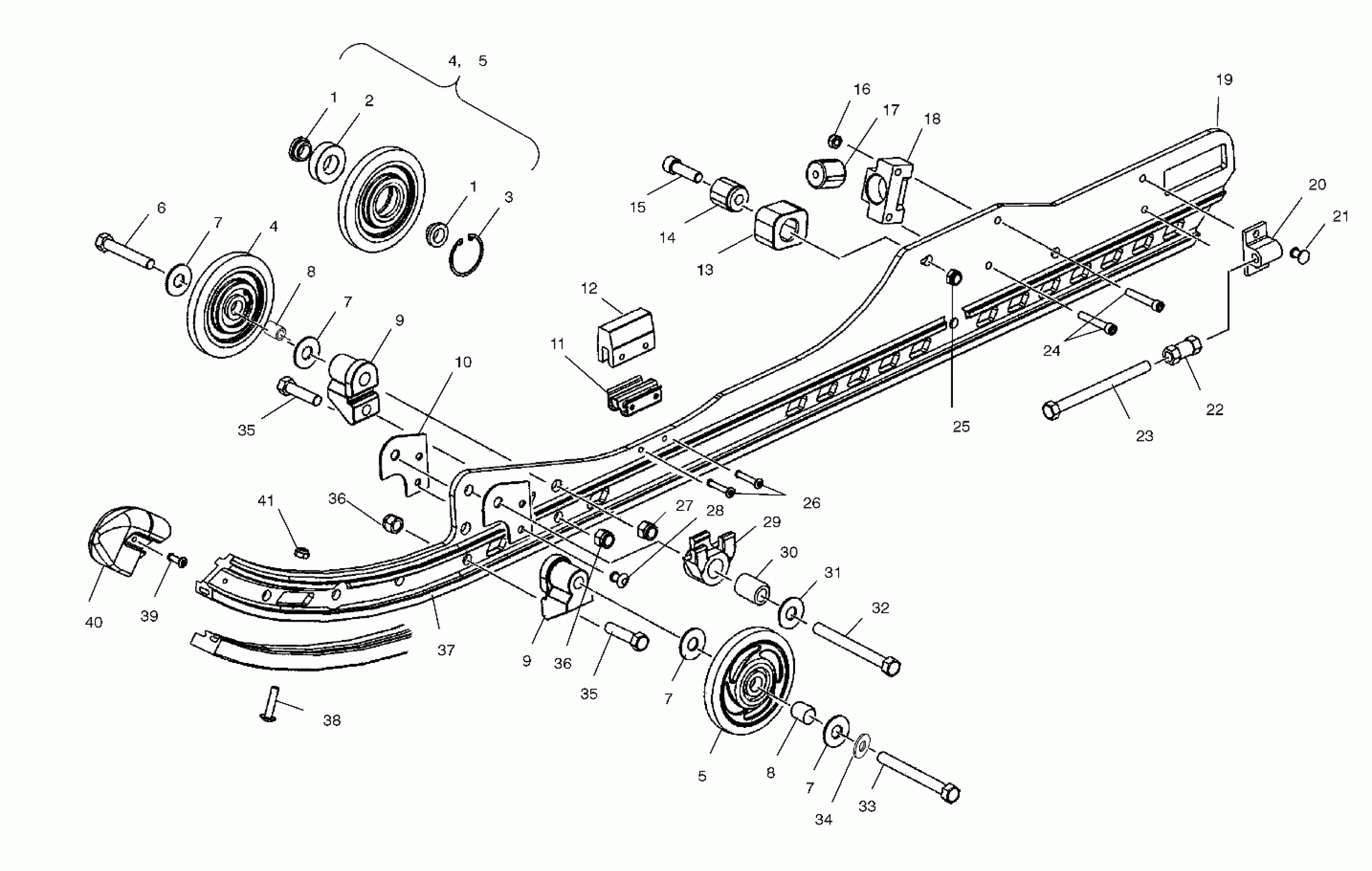

Polaris 600 CLASSIC TOURING - S02ST6ES SUSPENSION - S02ST6ES/S02ST6ESA (4968596859B10) Diagram

#

Description
Price

1

INSERT, WHEEL [2 PER WHEEL]

5431531

$9.70

1

INSERT, WHEEL [2 PER WHEEL]

5431531

$9.70

2

Bearing [1 Per Wheel]

3514305

$19.99

3

RET.RING-TRUARC [1 PER WHEEL]

7718407

$4.79

4

Asm., Wheel w/Insert [Incl. 1-3]

1543018

$56.65

4

Asm., Wheel w/Insert [Incl. 1-3]

1543018

$56.65

5

Asm., Wheel

1594082-256

Unavailable

5

Asm., Wheel

1594082-256

Unavailable

6

Bolt

7512538

$6.39

7

WASHER, FLAT

7555852

$2.39

7

WASHER, FLAT

7555852

$2.39

7

WASHER, FLAT

7555852

$2.39

7

WASHER, FLAT

7555852

$2.39

8

Spacer

5333116

$7.99

8

Spacer

5333116

$7.99

9

SPACER, BOGIE WHEEL

5630399

$11.99

9

SPACER, BOGIE WHEEL

5630399

$11.99

10

Plate, Rail Support

5211786

$5.95

11

Bracket, Bumper Support

5240946

Unavailable

12

Bumper, Rail

5811065

Unavailable

13

BUMPER, PIVOT ARM

5410925

$12.94

14

MOUNT, BUMPER

5131113

$28.32

15

Screw

7515545

$5.59

16

Nut, FLEXLOC

7542103

$5.59

17

Bumper, Rear Pivot Arm

5411041

$11.59

18

Block, Pivot Arm Stop, Rear

5131111

Unavailable

19

Asm., Rail, LH [Incl. 10,11,12,20,21,26,28,39,40]

1541438

Unavailable

19

Asm., Rail, RH [Incl. 10,11,12,20,21,26,28,39,40]

1541439

Unavailable

20

BLOCK, IDLER BOLT ADJUSTING

5130530

$32.37

21

RIVET

7621501

$2.39

22

Nut, Tensioner Adjusting

5020943

$20.22

23

Bolt

7515455

$29.99

24

SCREW

7515156

$3.99

25

Nut, FLEXLOC

7542411

$3.19

26

Rivet

7621488

$3.99

27

Nut, Nylok

7542525

$4.79

28

RIVET

7621514

Unavailable

29

Block, Spring Slider

5431924

$10.65

30

Bushing

5010332

$11.99

31

Washer, Flat

7555976

$3.99

32

Bolt

7515538

$6.39

33

Bolt

7512508

$7.19

34

Washer, Spring Lock

7553101

$3.99

35

Bolt

7512404

$3.99

35

Bolt

7512404

$3.99

36

Nut, Nylok

7542439

$1.49

36

Nut, Nylok

7542439

$1.49

37

Hi-Fax

5521452

$40.46

38

Screw

7515175

$3.99

39

RIVET

7621435

$1.49

40

Cover, Rail Tip

5433005

Unavailable

41

Nut, Nylok

7542122

$1.49
