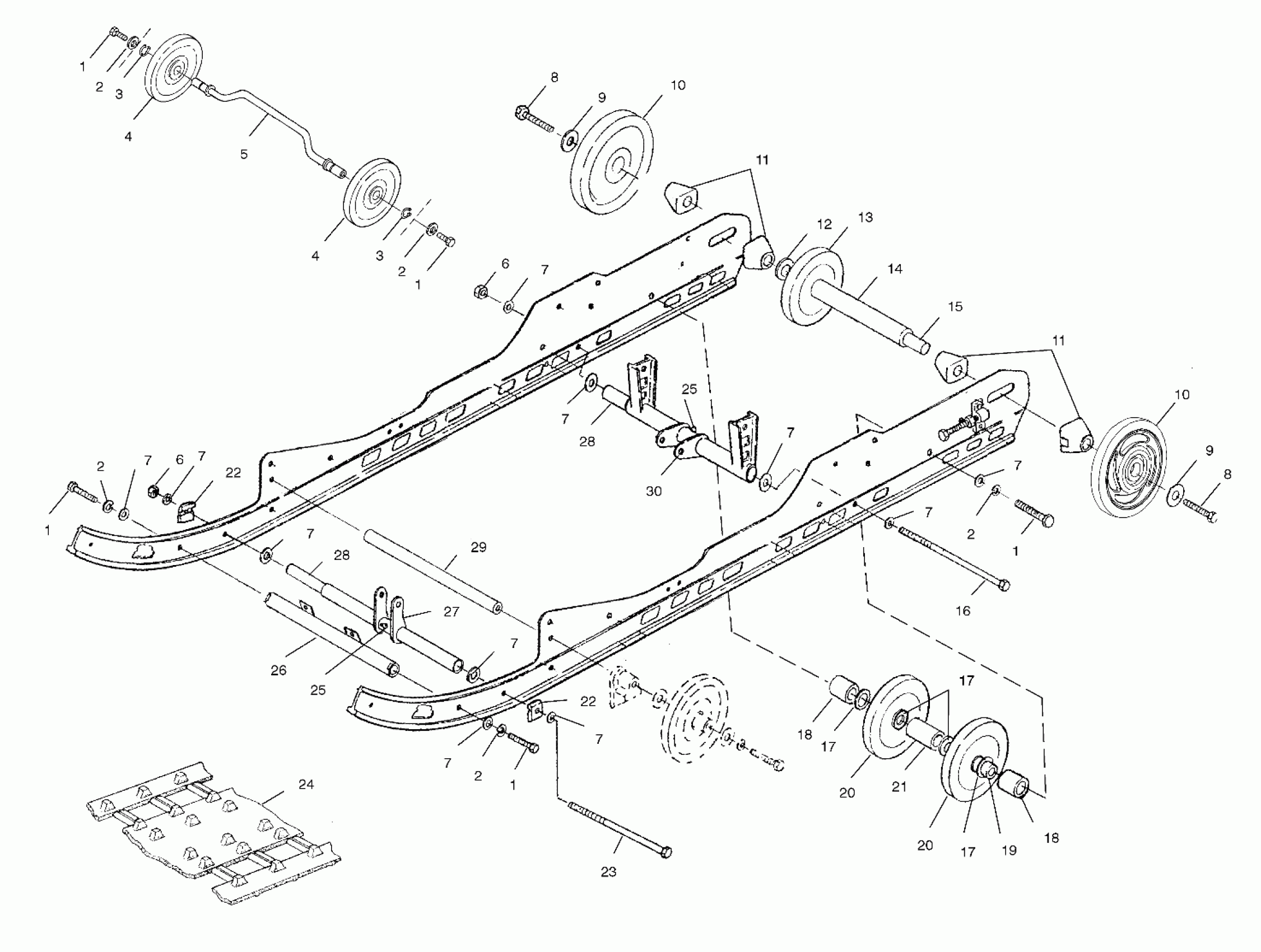

Polaris 600 CLASSIC TOURING - S02ST6ES SUSPENSION - S02ST6ES/S02ST6ESA (4968596859B09) Diagram

#

Description
Price

1

Screw

7517247

$3.19

1

Screw

7517247

$3.19

1

Screw

7517247

$3.19

1

Screw

7517247

$3.19

1

Screw

7517247

$3.19

2

Washer, Spring Lock

7552603

$1.49

2

Washer, Spring Lock

7552603

$1.49

2

Washer, Spring Lock

7552603

$1.49

2

Washer, Spring Lock

7552603

$1.49

2

Washer, Spring Lock

7552603

$1.49

3

Ring, Retaining

7710439

$3.99

3

Ring, Retaining

7710439

$3.99

4

Wheel, Bogie

1594067

$44.51

4

Wheel, Bogie

1594067

$44.51

5

Shaft, Tensioner

1541025-067

Unavailable

6

Nut, FLEXLOC

7542411

$3.19

6

Nut, FLEXLOC

7542411

$3.19

7

Washer, Flat

7555893

$1.49

7

Washer, Flat

7555893

$1.49

7

Washer, Flat

7555893

$1.49

7

Washer, Flat

7555893

$1.49

7

Washer, Flat

7555893

$1.49

7

Washer, Flat

7555893

$1.49

7

Washer, Flat

7555893

$1.49

7

Washer, Flat

7555893

$1.49

7

Washer, Flat

7555893

$1.49

7

Washer, Flat

7555893

$1.49

7

Washer, Flat

7555893

$1.49

8

Screw

7517331

$2.07

8

Screw

7517331

$2.07

9

WASHER, BELLE

7556130

$6.39

9

WASHER, BELLE

7556130

$6.39

10

Wheel, Idler, Candy Apple Red

1590303-256

Unavailable

10

Wheel, Idler, Candy Apple Red

1590303-256

Unavailable

11

SPACER-IDLER

5432535

$11.99

11

SPACER-IDLER

5432535

$11.99

12

BUSHING

7555918

$1.59

13

ASM., WHEEL

1594087

$72.84

14

SPACER-IDLER, LONG

5333285

$11.99

15

SHAFT, IDLER

5020744

$59.99

16

Screw

7517353

Unavailable

17

Bushing

7556301

$3.19

17

Bushing

7556301

$3.19

17

Bushing

7556301

$3.19

18

Spacer

5332784

Unavailable

18

Spacer

5332784

Unavailable

19

Shaft, Pivot Arm

5020724

$29.99

20

ASM., WHEEL, BOGIE [SEE SUSPENSION PG. B10, REF. 4]

-------

Unavailable

20

ASM., WHEEL, BOGIE [SEE SUSPENSION PG. B10, REF. 4]

-------

Unavailable

21

Spacer

5332783

Unavailable

22

Boss, Bolt Head

5131112

$19.99

22

Boss, Bolt Head

5131112

$19.99

23

Screw

7517380

$15.03

24

Clip, Slide

5241473

Unavailable

24

Clip, Guide

5241474

Unavailable

24

Track

5411687

Unavailable

25

FITTING-LUBRICATION 1/4-28

7080424

$4.79

25

FITTING-LUBRICATION 1/4-28

7080424

$4.79

26

Shaft, Limiter Strap

1012267-067

Unavailable

27

Shock, Pivot Arm

1540968-067

$49.59

28

SHAFT

5333404

$24.27

28

SHAFT

5333404

$24.27

29

Shaft, Shock Bracket, Rear

5020649

Unavailable

30

Arm, Pivot, Rear

1541141-067

$113.99
