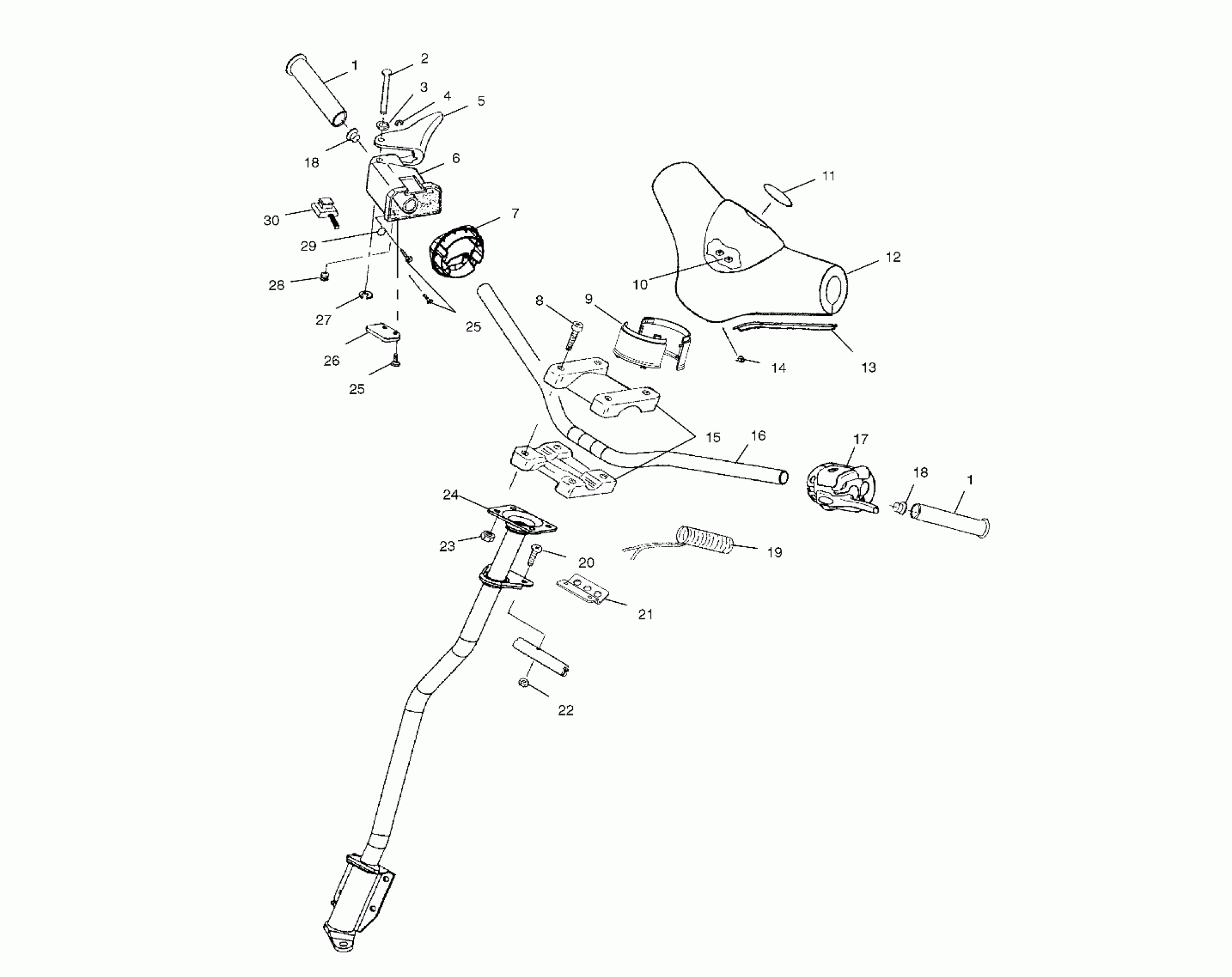

Polaris 600 CLASSIC TOURING - S02ST6ES STEERING/HANDLEBAR - S02ST6ES/S02ST6ESA (4968596859B06) Diagram

#

Description
Price

1

Grip, Handlebar

5432634

$24.27

1

Grip, Handlebar

5432634

$24.27

2

PIN-RETAINING .186X1.780-AL

7661624

$12.79

3

WASHER

7555730

$3.99

4

RET.RING-INDUSTRIAL(2000-25)-Z

7710503

$3.99

5

LEVER, THROTTLE

5432970

$29.03

5

Lever w/Heater

2010171

$84.98

6

Block, Throttle

5431592

$49.99

7

Adaptor, Block

5433345

$15.99

8

SCREW

7517238

$4.79

9

Boot, Handlebar

5433331

Unavailable

10

Nut, Push-On

7670106

$2.39

11

Emblem, Star

5434179

Unavailable

12

Cover, Handlebar

5433159-070

$77.99

13

Slide, Cover

5433160-070

$28.32

14

Clip, Dart

4010287

$3.99

15

Block, Handlebar

5630187-067

$44.99

16

Handlebar

5243355-067

$94.99

17

ASM., CONTROL, LH [SEE BRAKE PG. A14, REF. 13]

-------

Unavailable

18

PLUG, OVERFLOW

5431096

$2.02

18

PLUG, OVERFLOW

5431096

$2.02

19

Heater, Grip, Lo/Med/Hi

2460677

$60.70

20

SCREW

7517377

$4.79

21

Bracket, Tank Retention

5242553-067

$12.30

22

Nut, FLEXLOC

7542103

$5.59

23

Nut, Nylok

7542122

$1.49

24

Post, Steering

1820663-067

$116.10

25

Screw

7511848

$3.99

25

Screw

7511848

$3.99

26

HOLDER, WIRE

5432261

$24.27

27

RING-RETAINING EXTERNAL

7710401

$3.99

28

SCREW, SET

7512465

$3.99

29

WASHER

7555727

$1.49

30

Switch, Auxiliary Shut-Off

4110106

$94.99
