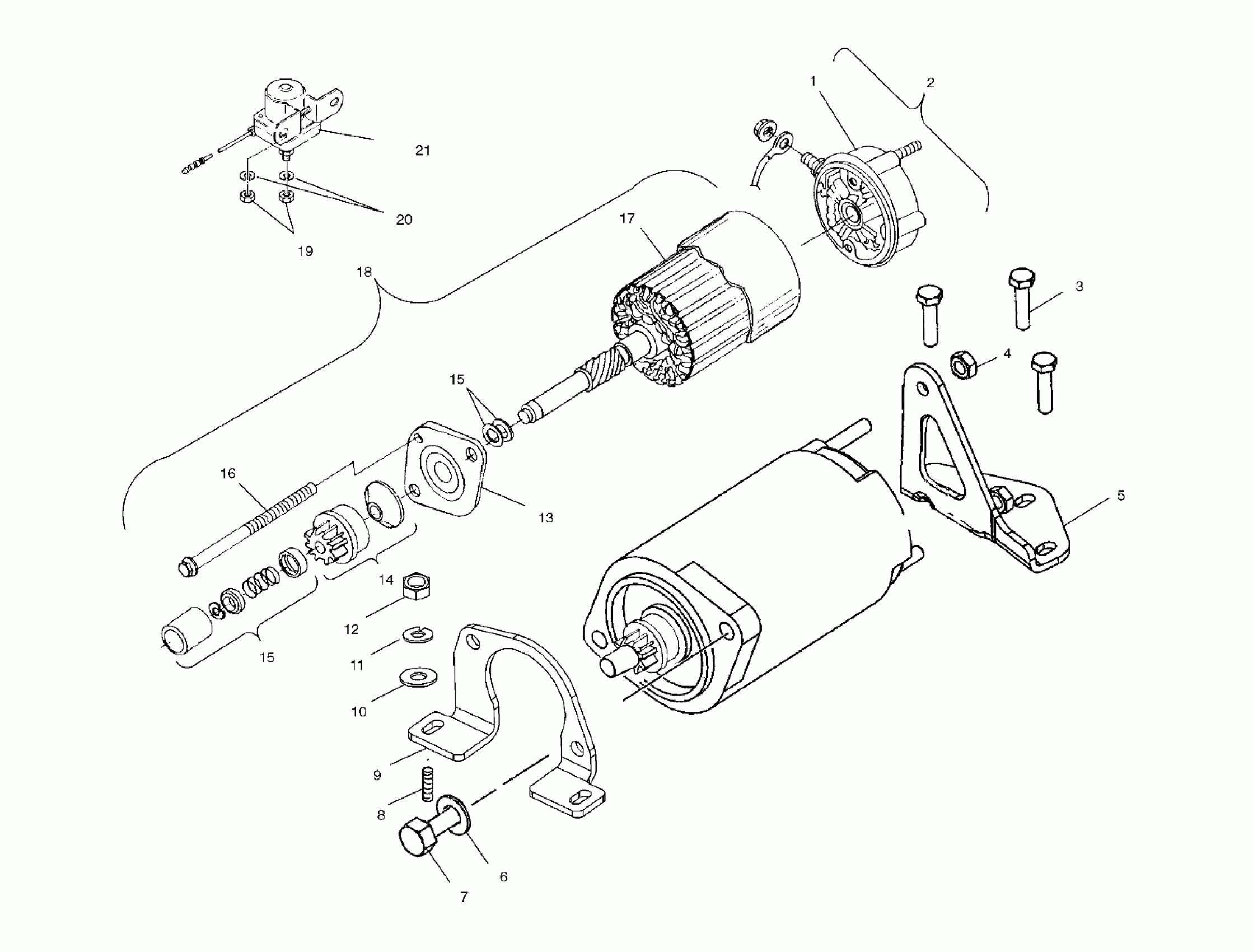

Polaris 600 CLASSIC TOURING - S02ST6ES STARTING MOTOR - S02ST6ES/S02ST6ESA (4968596859C05) Diagram

#

Description
Price

1

Kit, Brush and Spring

2200759

$59.99

1

ASM., BRUSH AND SCREW

-------

Unavailable

1

ASM, BRUSH

-------

Unavailable

1

BUSHING, INSULATION

-------

Unavailable

1

WASHER, INSULATION

-------

Unavailable

1

Nut

-------

Unavailable

2

Kit, Commutator Cap Assembly [Incl.1]

2200758

$82.39

3

Screw

7516823

$3.19

4

NUT, NYLOK

7542153

$1.59

5

Bracket, Starter, Rear

5244250

$389.99

6

Washer, Spring Lock

7552603

$1.49

7

Screw

7512492

$1.49

8

Stud

5132421

$6.63

9

Bracket, Starter, Front

5242498

Unavailable

10

WASHER

7555954

$4.79

11

Washer, Spring Lock

7552902

Unavailable

12

NUT-NYLOCK M8X1.25-Y

7547144

$3.19

13

Kit, Drive Cap Assembly

2200757

$59.99

14

Kit, Drive Assembly

2200754

Unavailable

14

PLATE, DRIVE

-------

Unavailable

14

PINION

-------

Unavailable

15

Kit, Drive Hardware

2200755

Unavailable

15

WASHER, CURVED SPRING

-------

Unavailable

15

Washer, Thrust

-------

Unavailable

15

SPACER

-------

Unavailable

15

SPRING, ANTIDRIFT

-------

Unavailable

15

PINION, STOP

-------

Unavailable

15

RING, LOCK

-------

Unavailable

15

COVER, DUST

-------

Unavailable

15

Kit, Drive Hardware

2200755

Unavailable

15

WASHER, CURVED SPRING

-------

Unavailable

15

Washer, Thrust

-------

Unavailable

15

SPACER

-------

Unavailable

15

SPRING, ANTIDRIFT

-------

Unavailable

15

PINION, STOP

-------

Unavailable

15

RING, LOCK

-------

Unavailable

15

COVER, DUST

-------

Unavailable

16

Kit, Screw

2200753

$29.99

16

BOLT, THRU

-------

Unavailable

17

Kit, Armature Assembly

2200756

$169.99

18

Motor, Starter, Domestic

4170006

Unavailable

19

Nut

3082939

Unavailable

20

Washer, Spring

3080077

$2.39

21

Switch, Magnetic [Incl. 19,20]

3083211

Unavailable
