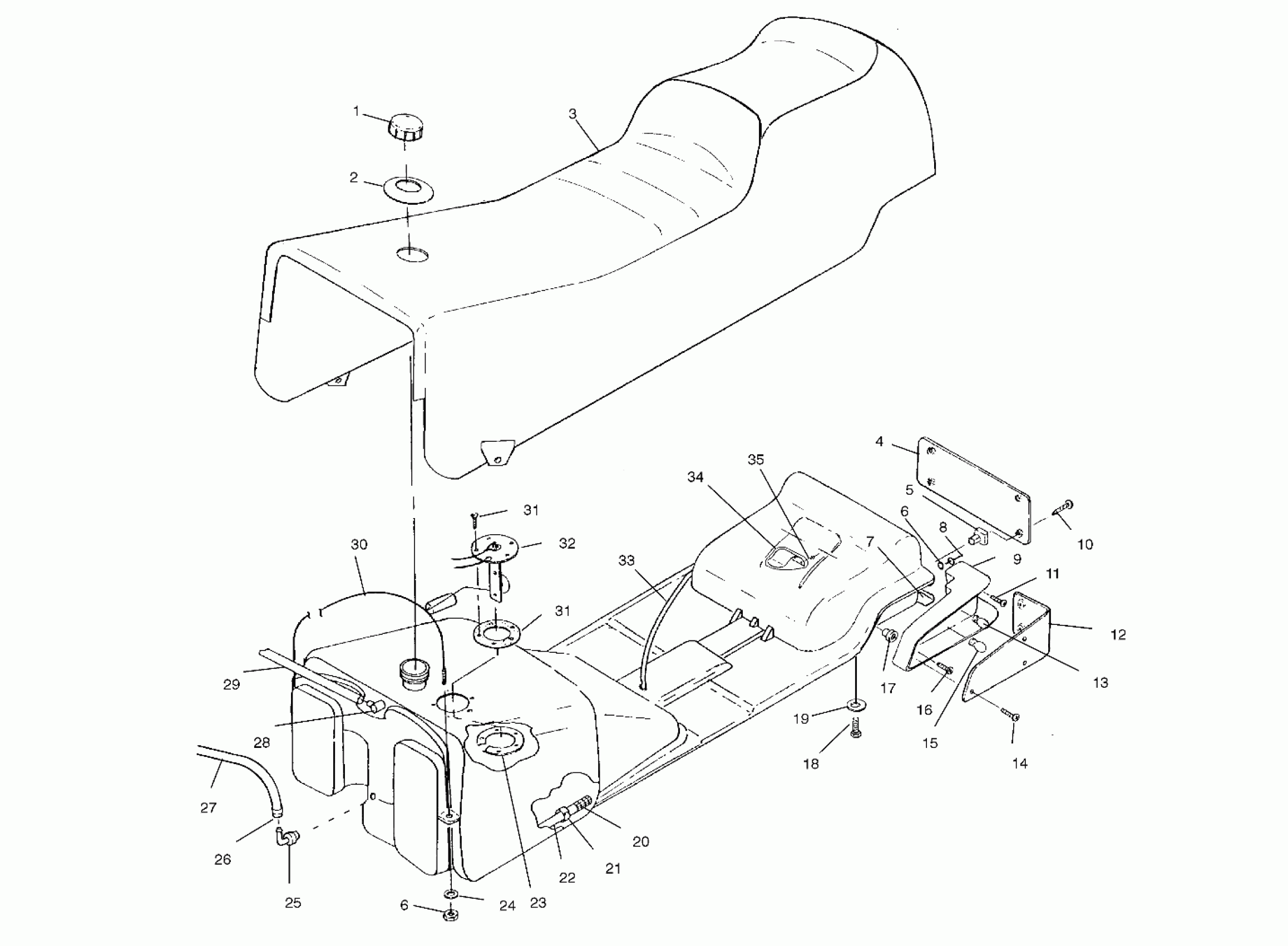

Polaris 600 CLASSIC TOURING - S02ST6ES SEAT and GAS TANK - S02ST6ES/S02ST6ESA (4968596859A04) Diagram

#

Description
Price

1

GASKET, GAS CAP

5810513

$8.89

1

Cap w/Gasket, Fuel Tank

2511226

Unavailable

2

Grommet, Fuel Tank

5410842

Unavailable

3

Cover, Seat

2682748

Unavailable

3

Asm., Seat Cushion [Incl. 3,4-17,20-22,25,28]

2682749

$540.99

4

Reflector, Seat, Center

5432008

Unavailable

5

Nut, Nylon

7546908

$2.63

6

Nut, Nylok

7541925

$1.49

6

Nut, Nylok

7541925

$1.49

7

Bracket, Seat Mount

1012838-067

Unavailable

8

Rivet

7621433

$1.49

9

Housing, Lens, LH

5432002

Unavailable

9

Housing, Lens, RH

5432003

Unavailable

10

Screw

7511840

Unavailable

11

Screw

7522004

Unavailable

12

Lens, RH

5432032

$44.51

12

Lens, LH

5432031

Unavailable

13

Bulb, Brakelight

4030045

Unavailable

14

Screw

7512054

$2.39

15

Bulb, Taillight

4032084

Unavailable

16

Screw

7511954

$1.19

17

Nut, Well

7541901

$6.39

18

SCREW

7512242

$2.39

19

WASHER

7558302

$1.59

20

Pickup w/Filter, Fuel

7052301

$12.94

21

RING, COMPRESSION

7080402

$1.60

22

Tubing

8350019-1525

Unavailable

23

Flange, Fuel Tank Mounting

5244067

Unavailable

24

WSHR-.194X.475X.049 ZTB

7555746

Unavailable

25

Fitting, Outlet, Double, 90 Degree

7052143

Unavailable

26

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

27

Tubing

8350018-600

Unavailable

28

Fitting, 90 Degree

7052095

$4.79

29

LINE, FUEL

8450061-600

Unavailable

30

Cable, Tank Retention

7080559

Unavailable

31

Package, Hardware, Sending Unit

2410012

Unavailable

31

Package, Hardware, Sending Unit

2410012

Unavailable

32

Sender w/Gasket, Fuel Level

3280227

Unavailable

33

Harness, Taillight

2460524

$58.39

34

Retainer, Clip, Tool Pouch

5243593

$11.35

35

RIVET

7621467

$1.49
